Intel Desktop Board DP55KG Product Guide
36
3.
Rotate t
he socket lever to lift the load pl
ate away from the socket (
Figu
re 11, A).
Make sure that th
e load plate is in the fully open
position (
Figure 11, B) while being
careful not
to damage adjacent components.

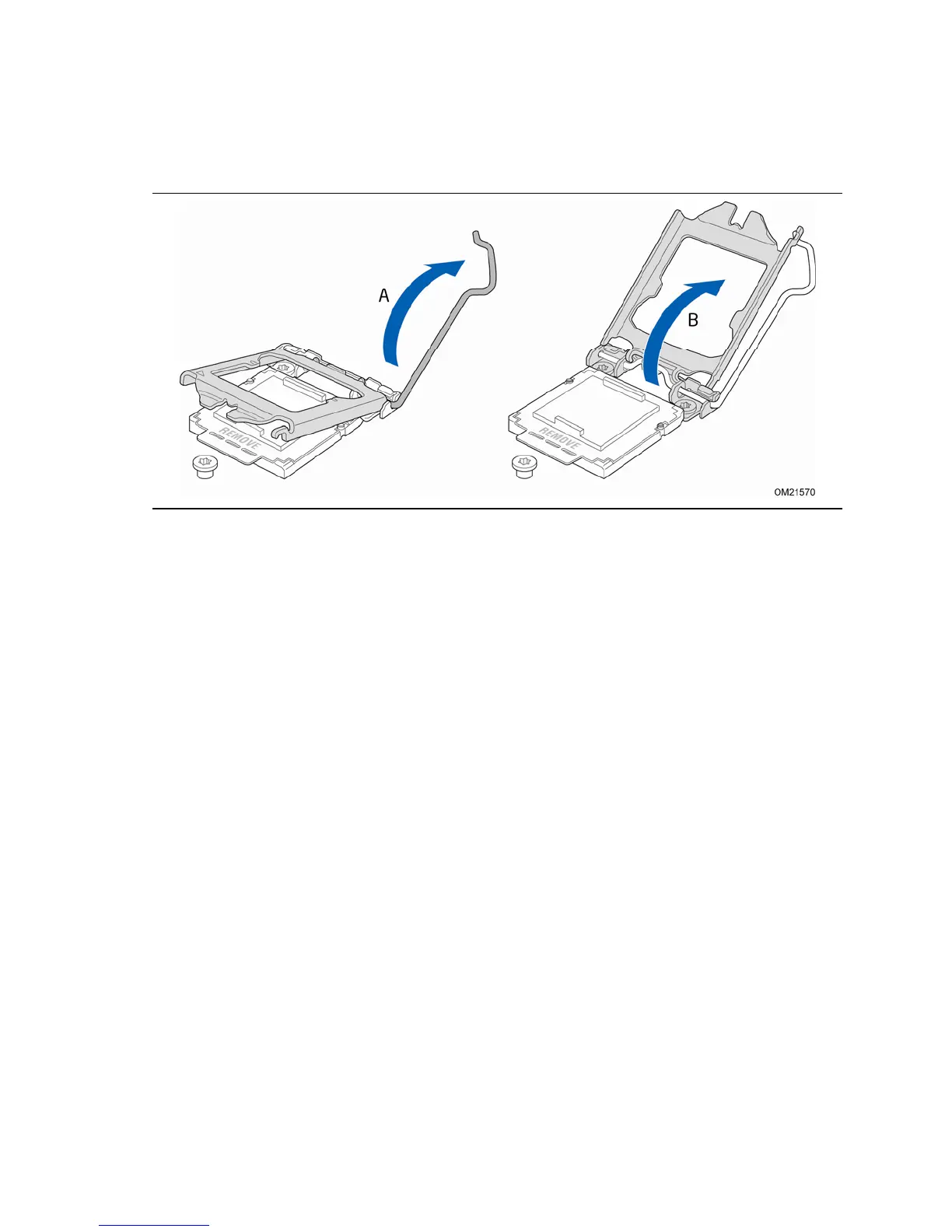

Figure 11. Lift the Lo
ad Plate
35
37
Table of Contents
Default Chapter
2
Canadian Department of Communications Compliance Statement
2
Fcc Declaration of Conformity
2
Revision History
2
Intended Audience
3
Use Only for Intended Applications
3
Table of Contents
5
Desktop Board Features
9
Supported Operating Systems
11
Tables
12
Desktop Board Components
12
Figures
12
Intel Desktop Board DP55KG Components
12
Intel Desktop Board DP55KG Components
13
Processor
14
Main Memory
15
Audio Subsystem
16
Intel P55 Express Chipset
16
LAN Subsystem
16
Bluetooth* Technology Support
17
LAN Connector Leds
17
USB 2.0 Support
17
SATA Drive Activity LED
18
Serial ATA Support
18
Expandability
19
Legacy I/O
19
Bios
20
Serial ATA Auto Configuration
20
PCI* and PCI Express* Auto Configuration
20
Security Passwords
20
Hardware Management
21
Hardware Monitoring and Fan Speed Control
21
Intel ® Precision Cooling Technology
21
Chassis Intrusion
21
Power Management
22
Software Support
22
Acpi
22
Hardware Support
22
Power Connectors
22
Fan Headers
23
LAN Wake Capabilities
23
Instantly Available PC Technology
23
+5 V Standby Power Indicator
24
Location of the Standby Power Indicator
24
Wake from USB
25
PME# Signal Wake-Up Support
25
WAKE# Signal Wake-Up Support
25
Wake from Consumer IR
25
ENERGY STAR*, E-Standby, and Eup Compliance
25
Onboard Power Button
26
Location of the Processor and Voltage Regulator Leds
27
Processor and Voltage Regulator Leds
27
Back to BIOS Button
28
Location of the Back to BIOS Button
28
Battery
29
Real-Time Clock
29
Speaker
29
Installing and Replacing Desktop Board Components
31
Before You Begin
31
Installation Precautions
32
Prevent Power Supply Overload
32
Observe Safety and Regulatory Requirements
32
Installing the I/O Shield
33
Installing and Removing the Desktop Board
34
Intel Desktop Board DP55KG Mounting Screw Hole Locations
34
Installing and Removing a Processor
35
Installing a Processor
35
Unlatch the Socket Lever
35
Lift the Load Plate
36
Remove the Socket Cover
37
Remove the Processor from the Protective Cover
38
Install the Processor
38
Lower the Load Plate
39
Secure the Load Plate in Place
39
Installing the Processor Fan Heat Sink
40
Connecting the Processor Fan Heat Sink Cable
40
Removing the Processor
40
Connecting the Processor Fan Heat Sink Power Cable to the Processor Fan Header
40
Installing and Removing System Memory
41
Guidelines for Dual Channel Memory Configuration
41
Two or Four Dimms
41
Example Dual Channel Memory Configuration with Two Dimms
41
Three Dimms
42
Example Dual Channel Memory Configuration with Four Dimms
42
Example Dual Channel Memory Configuration with Three Dimms
42
Installing Dimms
43
Use DDR3 Dimms
43
Installing a DIMM
44
Removing Dimms
45
Installing and Removing PCI Express X16 Graphics Cards
45
Installing a PCI Express X16 Graphics Card
45
Installing a PCI Express X16 Graphics Card
46
Removing a PCI Express X16 Graphics Card
47
Installing Linked PCI Express Graphics Cards
47
Installing Linked PCI Express Graphics Cards
48
Connecting the Serial ATA (SATA) Cables
49
Connecting the Serial ATA Cables
49
Connecting to the Internal Headers
50
Internal Headers
50
S/PDIF Header
51
Front Panel Intel HD Audio Header
51
Consumer IR (CIR) Headers
51
Front Panel Intel HD Audio Header Signal Names
51
Front Panel Header
52
Front Panel CIR Receiver (Input) Header Signal Names
52
Back Panel CIR Header Emitter (Output) Header Signal Names
52
Front Panel Header Signal Names
52
Alternate Front Panel Power LED Header
53
USB 2.0 Headers
53
Alternate Front Panel Power LED Header Signal Names
53
IEEE 1394A Header
54
Chassis Intrusion Header
54
IEEE 1394A Header Signal Names
54
Chassis Intrusion Header Signal Names
54
Connecting to the Audio System
55
Back Panel Audio Connectors
55
Connecting Chassis Fan and Power Supply Cables
56
Connecting Chassis Fan Cables
56
Location of the Chassis Fan Headers
56
Connecting Power Supply Cables
57
Connecting the Bluetooth Antenna
58
Setting the BIOS Configuration Jumper
59
Location of the BIOS Configuration Jumper Block
59
Clearing Passwords
60
Jumper Settings for the BIOS Setup Program Modes
60
Replacing the Battery
61
Removing the Battery
66
Updating the BIOS
67
Updating the BIOS with the Intel Express BIOS Update Utility
67
Updating the BIOS with the ISO Image BIOS Update File or the Iflash Memory Update Utility
68
Obtaining the BIOS Update File
68
Updating the BIOS with the ISO Image BIOS Update File
68
Updating the BIOS with the Iflash Memory Update Utility
69
Recovering the BIOS
70
Configuring for RAID Using Intel Matrix Storage Technology
71
Configuring the BIOS
71
Creating Your RAID Set
71
Loading the Intel Matrix Storage Technology RAID Drivers and Software (Required for Microsoft Windows XP Installation)
72
Setting up a "RAID Ready" System
72
A Error Messages and Indicators
73
BIOS Error Codes
73
BIOS Beep Codes
73
BIOS Error Messages
74
Port 80H POST Codes
75
POST Code LED Display
75
Port 80H POST Codes
76
B Regulatory Compliance
79
Safety Standards
79
Place Battery Marking
79
European Union Declaration of Conformity Statement
80
Product Ecology Statements
81
Recycling Considerations
81
Lead-Free 2Li/Pb-Free 2LI Board
84
Restriction of Hazardous Substances (Rohs)
85
EU Rohs
85
Lead-Free Second Level Interconnect Marks
85
China Rohs
86
Intel Desktop Board DP55KG China Rohs Material Self Declaration Table
87
EMC Regulations
88
Ensure Electromagnetic Compatibility (EMC) Compliance
89
Product Certifications
90
Board-Level Certification Markings
90
Product Certification Markings
90
Chassis and Component Certifications
91
