Installing and Replacing Desktop Board Components
49
Connecting the Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 31.
2. Attach
one end of the SATA cable to one of the SATA connectors on the board
(Figure 26, A) and attach the other end of the
cable to the SATA drive
(Figure 26, B).

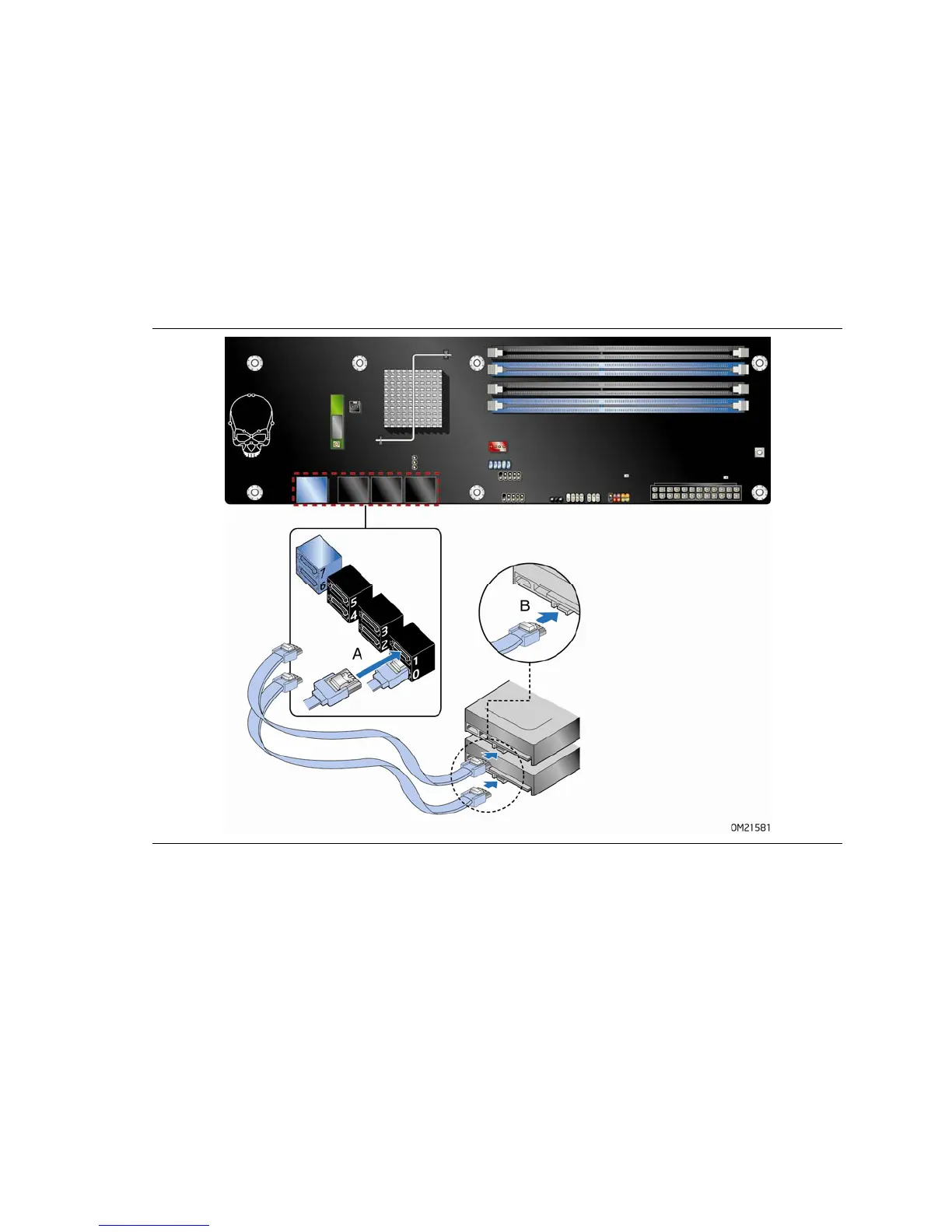

Figure 26. Connecting the Serial ATA Cables
