Intel SE7520JR2 Technical Manual

Functional Architecture Intel® Server Board SE7520JR2
Revision 1.0
C78844-002
70
3.5 Configuration and Initialization
This section describes the initial programming environment including address maps for memory
and I/O, techniques and considerations for programming ASIC registers, and hardware options
configuration.
3.5.1 Memory Space
At the highest level, the Intel Xeon processor address space is divided into four regions, as
shown in the following figure. Each region contains the sub-regions that are described in
following sections. Attributes can be independently assigned to regions and sub-regions using
registers. The Intel E7520 chipset supports 64GB of host-addressable memory space and
64KB+3 of host-addressable I/O space. The Server Board SE7520JR2 supports only the main
memory up to 24GB for DDR-266 or up to 16GB for DDR333/DDR2-400.

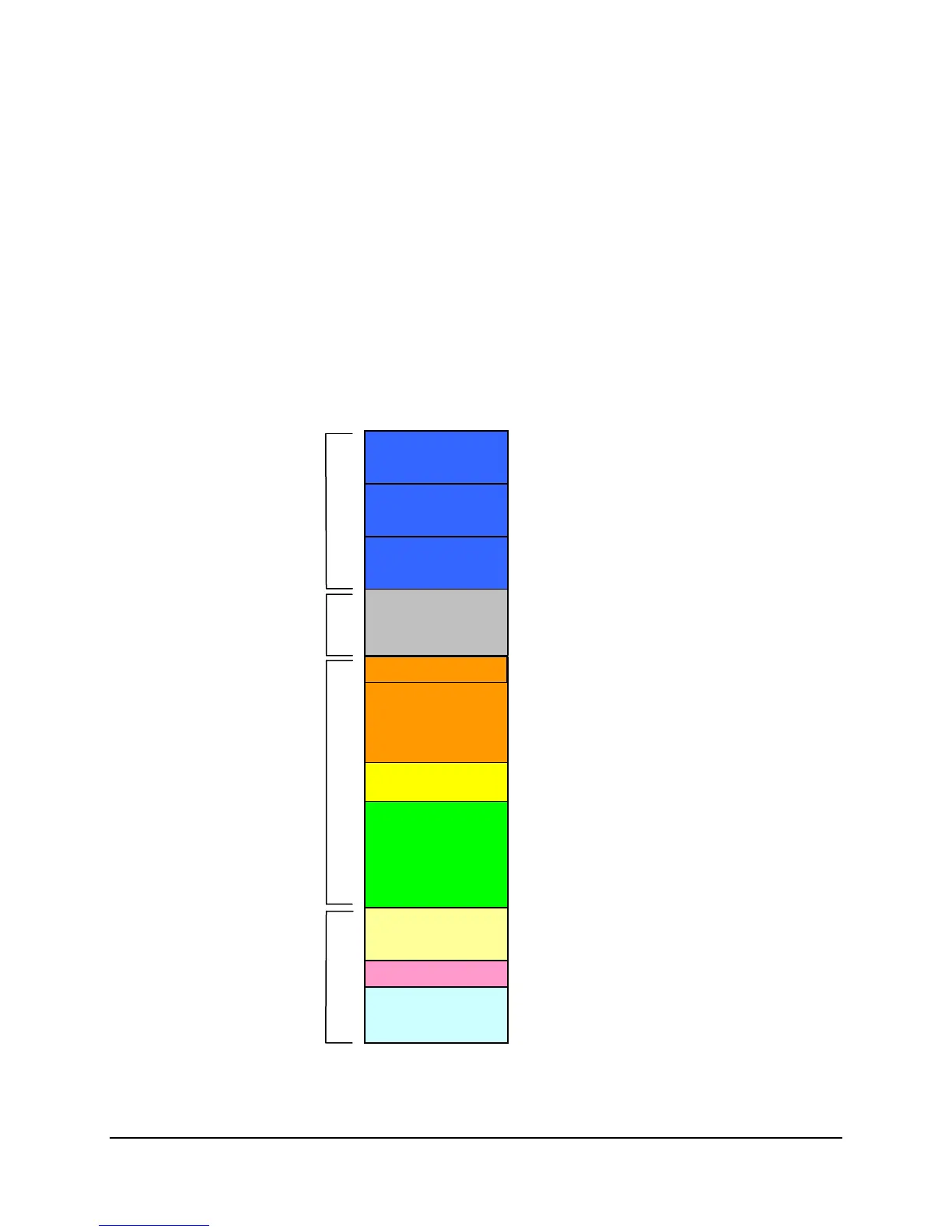

Figure 14. Intel
®
Xeon™ Processor Memory Address Space
4GB
Optional ISA Hole
Top of Low Memory (TOLM)
16MB
15MB
1MB
640KB
512KB
0
A
dditional Main
Memory Address
Ran
g
e
Main Memory
A
ddress Range
DOS Legacy
A
ddress Range
Lo PCI Memory
Space Range
TSEG SMRAM Space
64GB
Hi PCI Memory
A
ddress Range
Upper Memory
Ranges
