Intermec PF8T User Manual

Chapter 2 — Connecting the Printer
48 PF8d and PF8t Desktop Printer User’s Guide
Configuring the Printer Using EasyLan Control Center Tool
If you do not have access to PrintSet, you can use the EasyLan Control
Center tool (ECCT) to change a small set of configuration parameters.
To configure your printer using the ECCT
1 Download the ECCT from the PrinterCompanion CD and install
it on your PC.
2 Start the ECCT. The ECCT lists all of the printers connected to
your network. For help connecting your printer to the network, see
“Connecting the Printer to Your Network” on page 44.
3 Double-click the printer you want to configure.

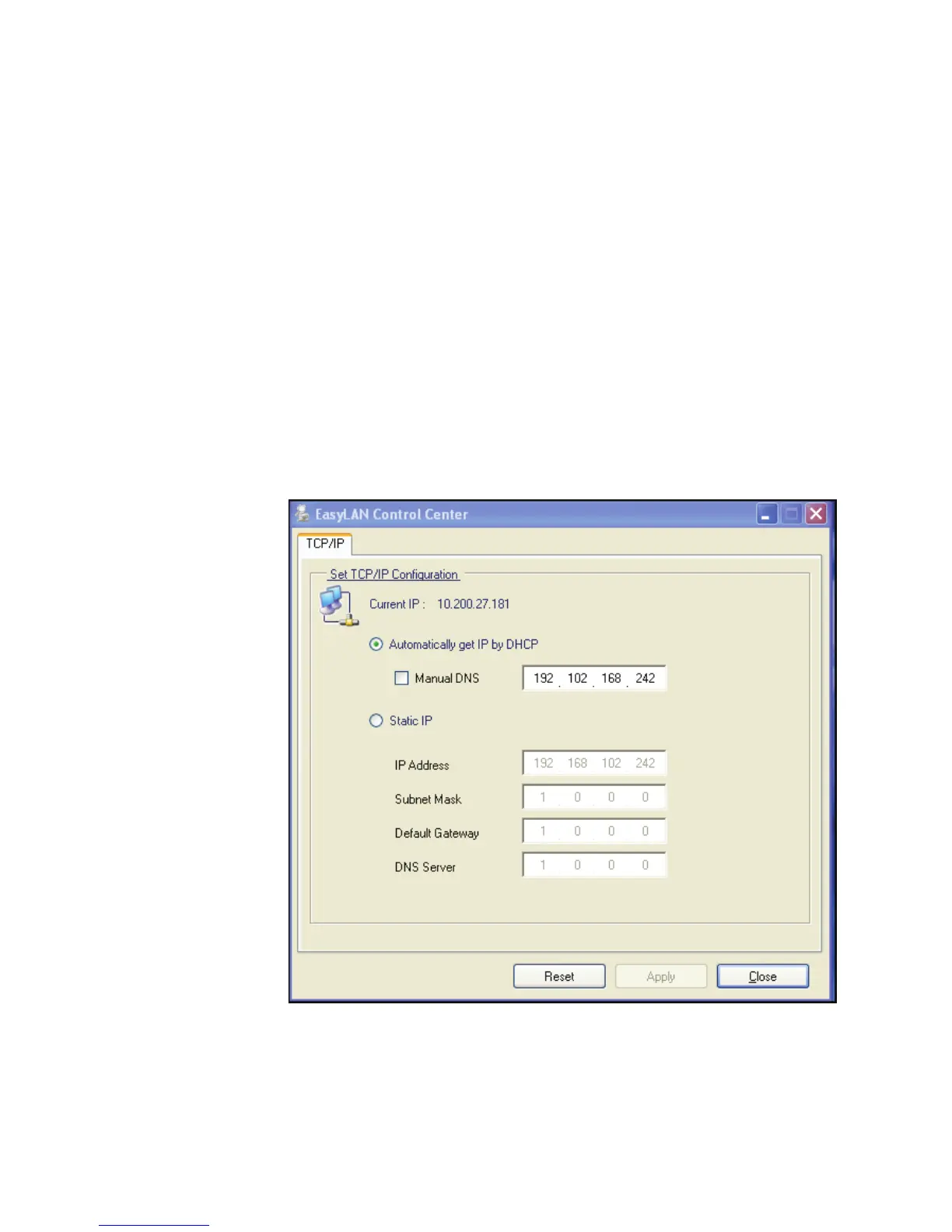

4 Enter your username and password, and press Enter. The EasyLan
Control Center page appears.

Intermec PF8T Specifications

General

Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Core diameter	25.4 mm
Ribbon length	274.32 m
Maximum media length	1727 mm
Maximum roll diameter	127 mm
Supported paper width	118 mm
Maximum media length (imperial)	68 \
Supported paper width (imperial)	4.65 \
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Form factor	Desktop
Dimensions (WxDxH)	168 x 218 x 116 mm
Flash memory	4 MB
Certification	CE, FCC Class A, cULus, UL, GS, TUVGS, CCC, C-TICK, BSMI
Internal memory	8 MB
Built-in barcodes	MaxiCode, PDF417
Page description languages	EPL
Compatible operating systems	Windows 98/Me/2000/XP Pro/Server 2003/Vista
Storage temperature (T-T)	40 - 104 °F
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	100–240 V AC/50–60 Hz, 1.9 A
AC adapter output current	3 A
AC adapter output voltage	24 V

Weight and Dimensions

Weight	2000 g
