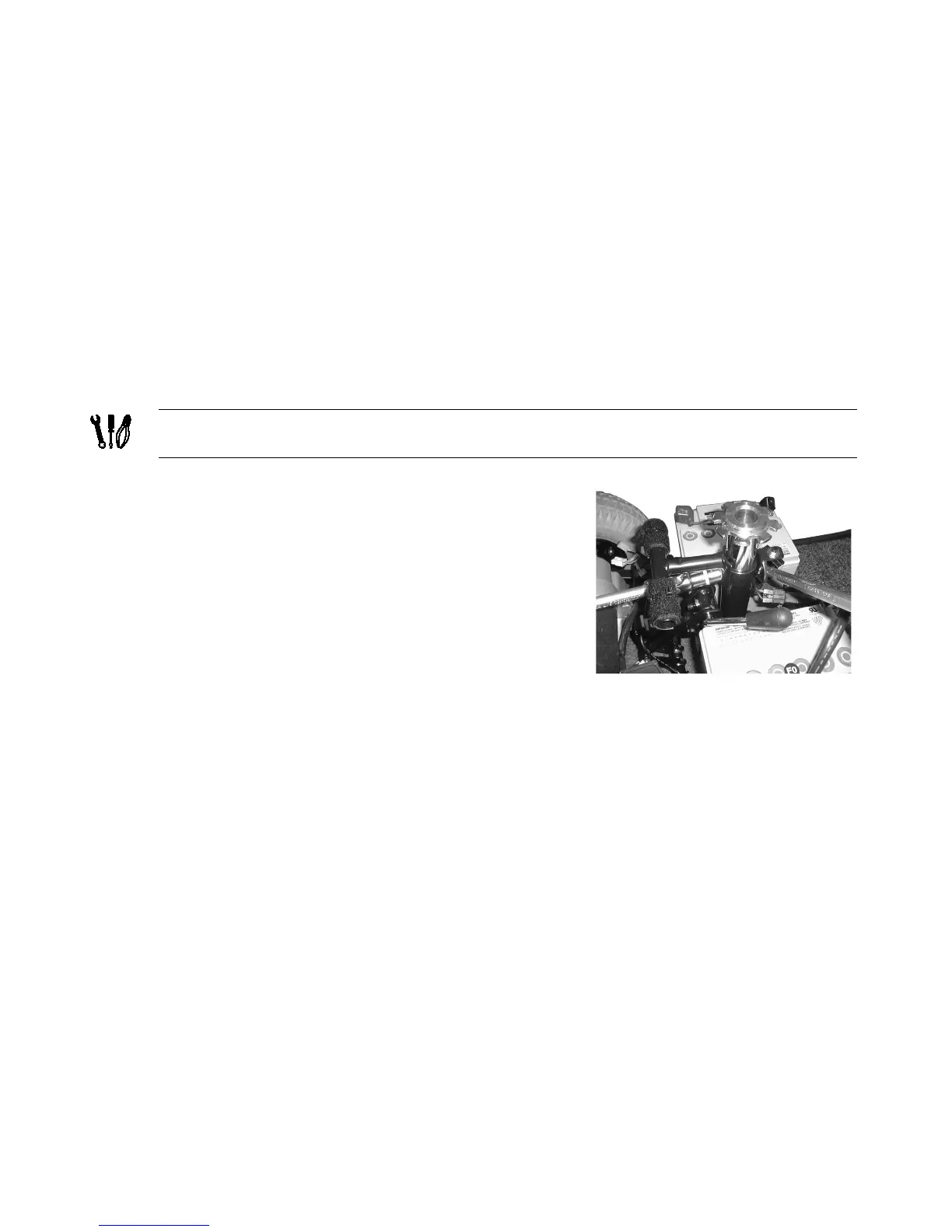

Adjusting the height of the seat
The height of the seat can be adjusted to 43, 45, 47, or 49 cm.
Requirements:
•
2 Spanners, 17 mm
•
Remove the seat
•
Remove the cover from the battery and motor
compartment
from the rear, disconnect wiring harness.
•
Remove the bolt that hold the seat post, using the two
spanners.
30
32
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
6
Important Symbols in this Manual
7
Type Classification and Area of Use
7
2 Safety Notes
8
General Safety Notes
8
Safety Information on Electromagnetic Interference
11
Safety Information on Driving and Freewheel Mode
12
3 The most Important Parts
14
4 Driving
15
Before Driving for the First Time
15
Taking Obstacles
16
Driving up and down Gradients
17
Parking and Standstill
17
5 Pushing the Scooter by Hand
18
Disengaging Motors
18
6 The Control Panel
19
Control Panel Layout
19
Seat Lifter "Up" and "Down" Buttons
20
Status Display
20
Battery Charge Display
20
Driving the Scooter
21
Diagnostics and Trouble Shooting
22
Diagnosing Faults
23
Flash Codes
24
7 Adjustment Options
27
Adjusting the Angle of the Backrest
27
Adjusting the Position of the Seat from Front to Back
28
Adjusting the Width of the Armrests
29
Releasing the Seat so that It May Rotated And/Or Removed
30
Adjusting the Height of the Seat
31
8 Electrical System
33
Electronics Protection System
33
The Main Fuse
34
Batteries
34
What You Need to Know about Batteries
34
Charging the Batteries
36
Removing and Fitting Batteries
38
Removing the Batteries
39
How to Handle Damaged Batteries Correctly
40
9 Care and Maintenance
41
10 Repair Instructions
43
Repairing a Flat Tyre
43
Repairing a Flat Tyre (Pneumatic Tyres Type 260 X 85)
44
10.1.1.1 Removing a Rear Wheel
44
Removing a Front Wheel (4-Wheel Version)
45
Removing a Front Wheel (3-Wheel Version)
46
10.1.1.4 Repairing the Flat Tyre
47
11 Dismantling the Scooter for Transport
49
Removing the Seat
49
Removing the Batteries and the Drive Unit
50
11.2.1 Removing the Batteries
50
11.2.2 Removing the Drive Unit
51
Removing the Steering Column
52
Technical Specifications
53
