54
11.2.3

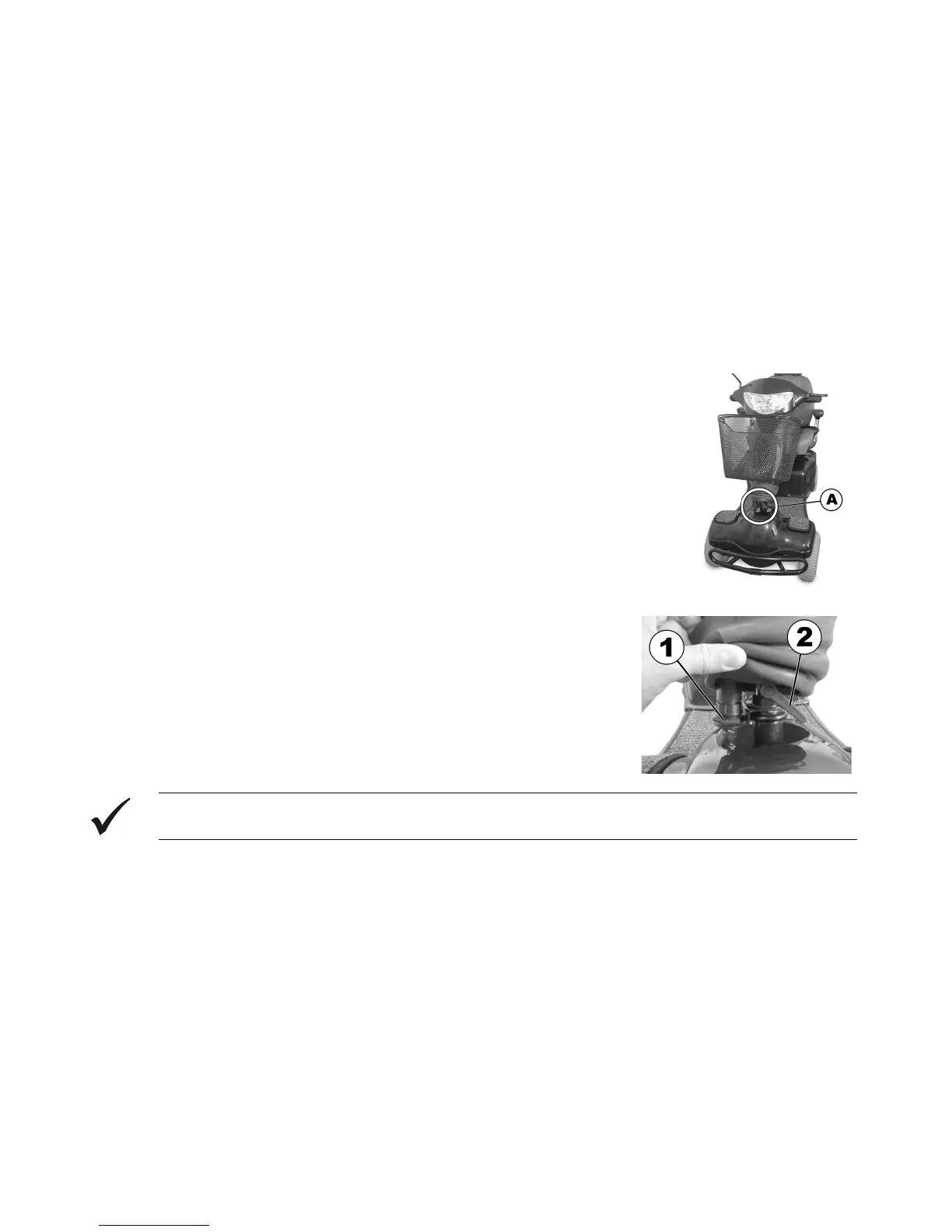

Removing the Steering Column
•
Fold up the rubber sleeve that
protects the joint (A).
•
Loosen and disconnect the cable (1).
•
Loosen and remove the bolt (clamping lever) that holds the
steering column in place.
Re-assembly
Re-assembly is done in reverse order.
