53
11.2.2 Removing the Drive Unit
WARNING: Danger of injury by moving parts!
• The release lever for the drive unit is under tension! When releasing the drive unit be very
careful not to get your hands or feet caught underneath the chassis of the scooter, or in
between any moving parts!

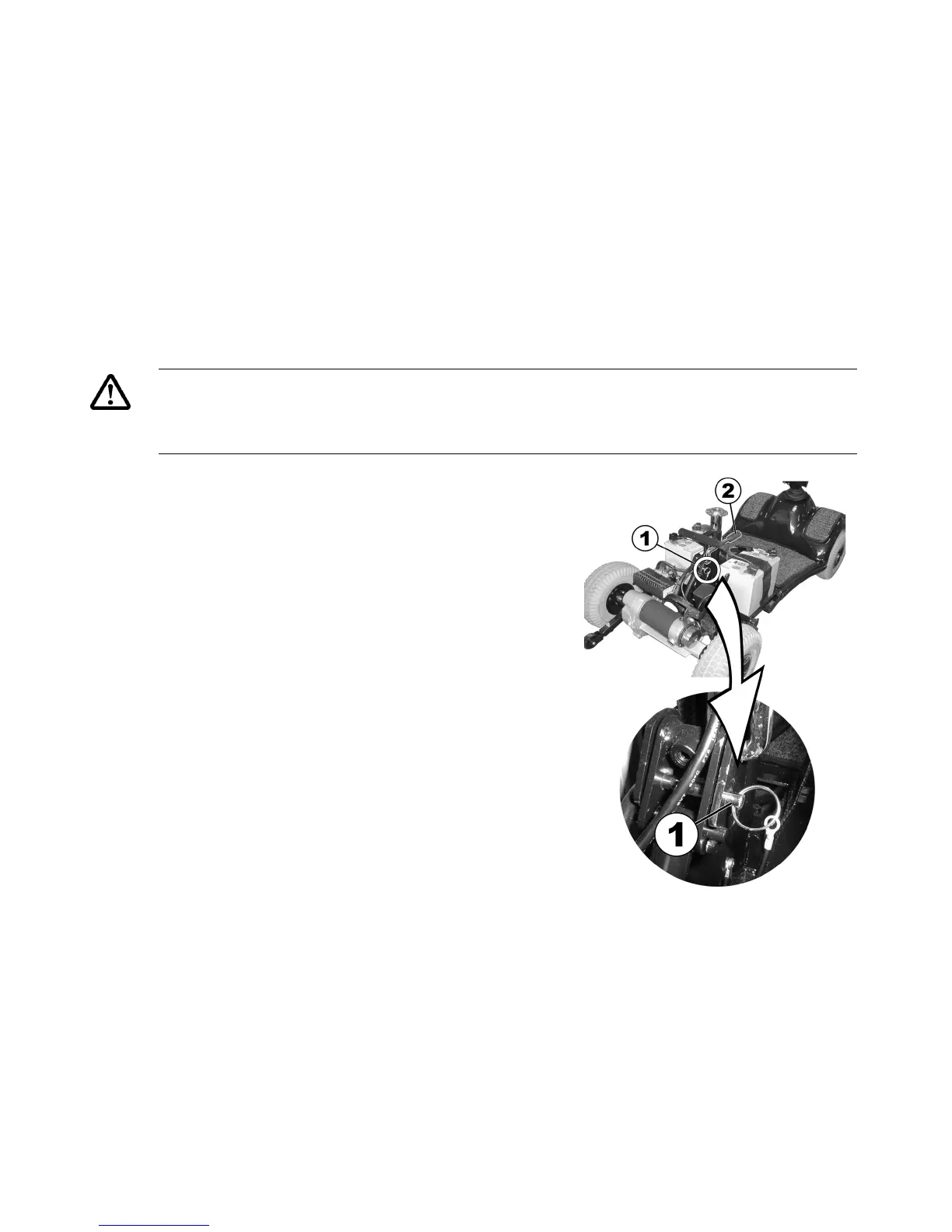

To release the drive unit, first you need to remove the
securing pin that prevents the release lever from opening
accidentally.
• Remove the pin (1) that secures the latching
mechanism.
• Release the drive Unit by pressing the Release Lever
(2) forward and downward.
