INVT Goodrive300-01A Series User Manual

Goodrive300-01A series VFD for air compressor Appendix A
-78-
Table A-3 7.5kW–200kW flange installation dimension (unit: mm)
Power
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Diameter of
mounting
hole
Nut
specification
7.5kW
191
151
174
11.5
370
351
324
12
196.5
113
6
M5
11kW–22kW
266
250
224
13
371
250
350.5
20.5
184.5
104
6
M5
30kW–37kW
316
300
274
13
430
300
410
55
202
118.5
6
M5
45kW–55kW
352
332
306
13
580
400
570
80
238
134
9
M8
75KW
454
425
370
14.5
632
544
380
146
250
127.5
9.5
M8
90–110KW
418
389
361
14
600
559
370
80
337
150
9.5
M8
132kW–200kW
500
180
480
60
870
850
796
37
358
178.5
11
M12

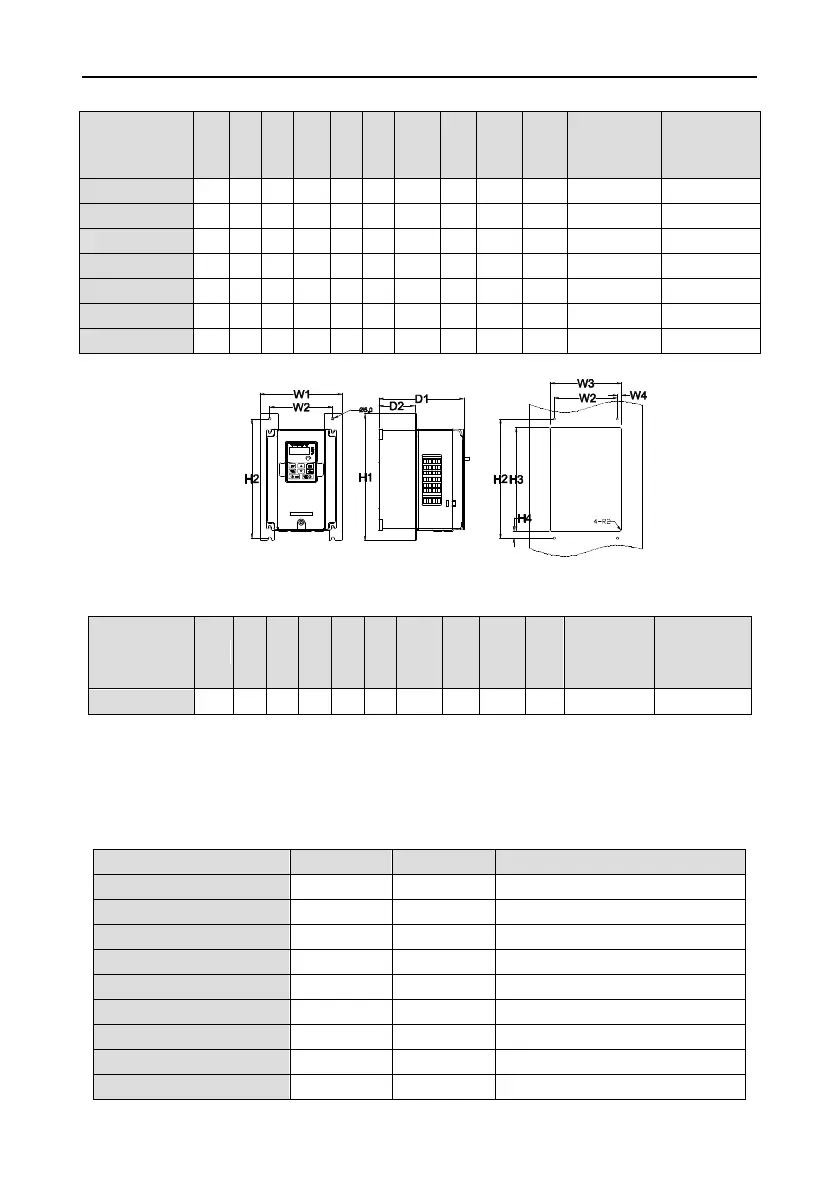

Figure A-11 Flange installation diagram of 7.5kW–15kW single-VFD integrated machine
Table A-4 Flange installation dimension of 7.5kW–15kW single-VFD integrated machine (mm)
Power
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Diameter of
mounting
hole
Nut
specification
7.5kW–15kW
266
250
224
13
371
250
350.5
20.5
184.5
104
6
M5
Note: Flange installation board is required for flange installation. 132-200kW models needs no flange
installation board, users just need to move the upper and lower installation beam to the middle
position.
A.5 Product weight and package dimension
A.5.1 Weight and package dimension of single-VFD product
Product model
N/W (kg)
G/W (kg)
Package dimension (mm)
GD300-01A-7R5G-4
5.6
6.6
428x270x328
GD300-01A-011G-4
6.6
8.2
485x325x320
GD300-01A-015G-4
8.7
10.3
485x325x320
GD300-01A-018G-4
10.4
12.0
485x325x320
GD300-01A-022G-4
10.4
12.0
485x325x320
GD300-01A-030G-4
16.0
18.5
580x395x360
GD300-01A-037G-4
16.0
18.5
580x395x360
GD300-01A-045G-4
37.0
48.0
710x510x495
GD300-01A-055G-4
37.0
48.0
710x510x495
