Basic Operation
2 outputs high level; when the instrument is under protection, pin 2 outputs low
level.
When pin 2 is set to Invert, the output level is completely opposite.

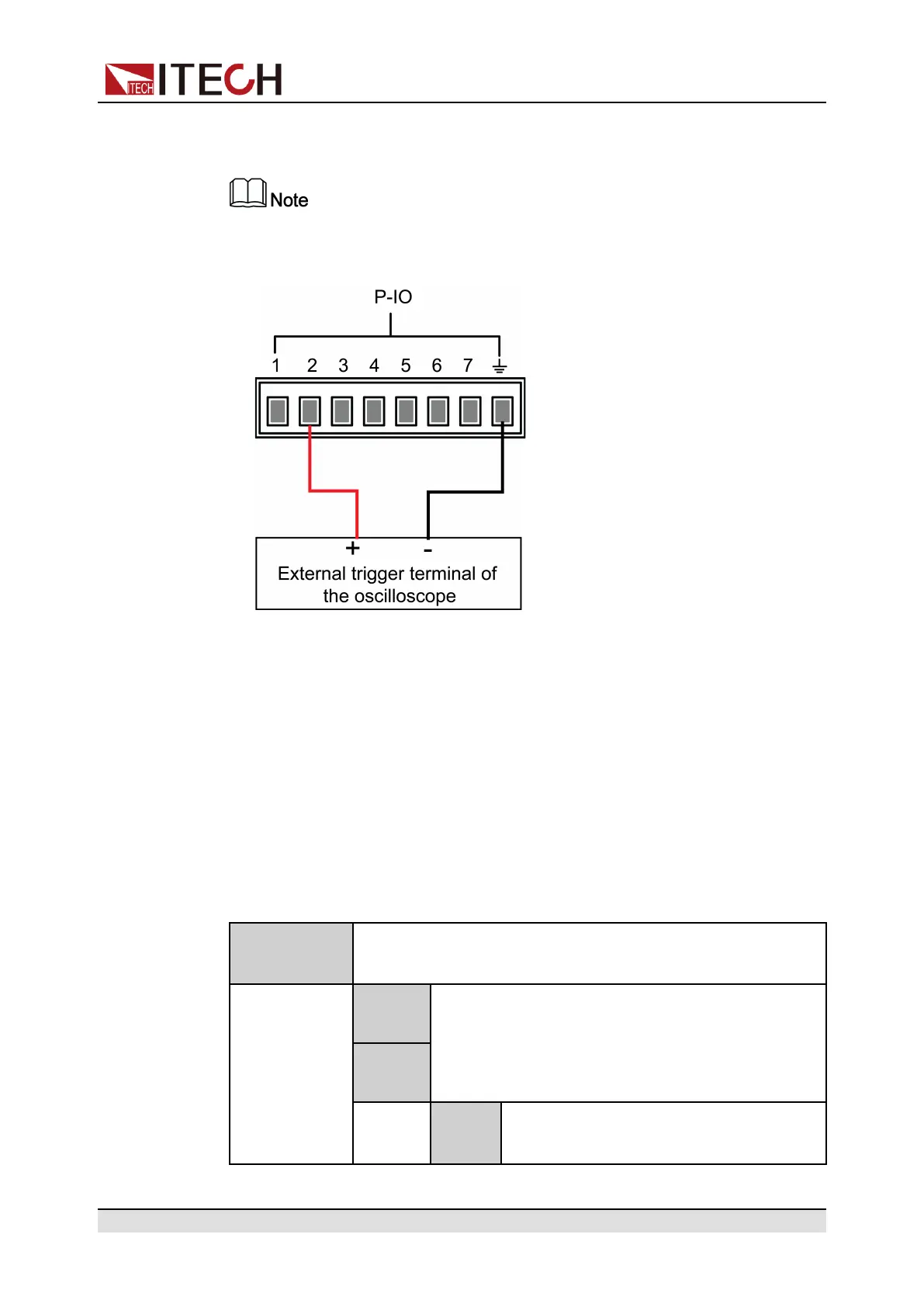

1. Refer to the figure below to connect pin 2 to the external oscilloscope.
2. Confirm that pin 2 function is set to the default option, namely
IO-2. Ps, Not-Invert.
3. Taking OVP as an example, set the protection point of OVP.
4. Build the test environment to enable the instrument to enter the OVP state.
5. Check the oscilloscope and confirm that pin 2 outputs low level.
5.11.3 IO–3. Off-Status, Not-Invert
Parameter Description
IO–3. Off-Sta-
tus, Not-Invert
Parameter setting for pin 3.
Not-
Invert
Indicates whether to invert the input/output pulse
or level signal.
• Invert: Yes
• Not-Invert: No
Invert
Off-
Status
This default function indicates the exist-
ing [On/Off] state of the instrument.
Copyright © Itech Electronic Co., Ltd.
133
