Quick Reference
Adjust the Value Setting
In the value setting interface, rotate the knob clockwise to increase the set value
and anticlockwise to decrease the set value.
Select Menu Item
The knob can also be used to view menu items. In the menu item display inter-
face, turning the knob clockwise indicates that the next menu item is selected,
and turning the knob anticlockwise indicates that the previous menu item is
selected.
Confirm settings
After completing the value setting or selecting a menu item, pushing the knob
acts like pressing [Enter] key to confirm the operation.
1.5 Rear Panel Introduction

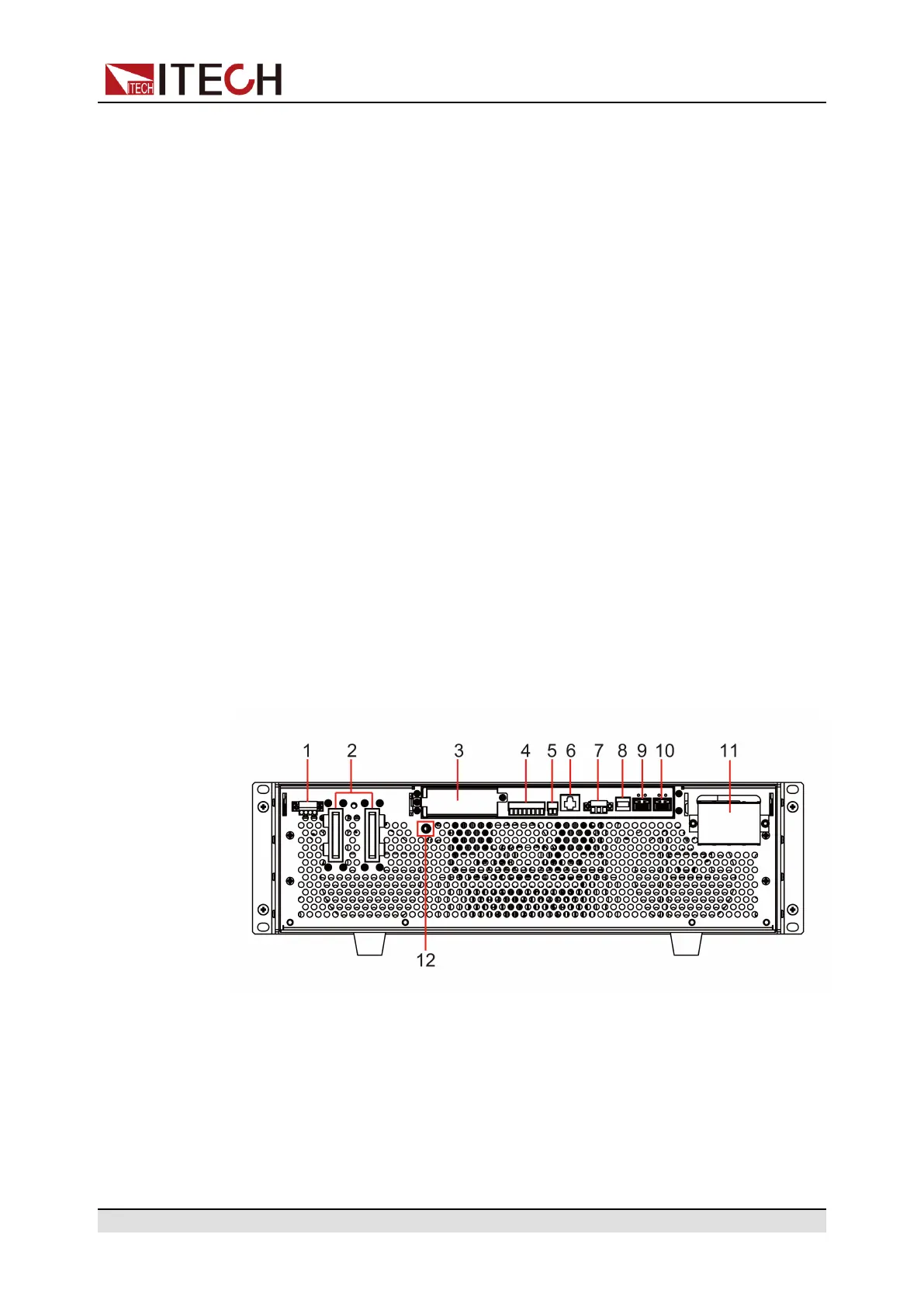

The rear panel of the 3U model of the IT6000C series Bi-directional Program-
mable DC Power Supply (after removing the protective cover) is shown below.
The rear panel of the 6U model is the same as the 3U model.
3U Models
1. Sense terminals (Vs+, Vs-)
2. DC output terminals of the power supply
3. Interface for optional accessories IT-E166 and IT-E167 (For details, see 1.9
Options Introduction)
4. Digital I/O interface: P-IO
5. CAN communication interface
Copyright © Itech Electronic Co., Ltd.
7
