Inspection and Installation
2. Insert the separately purchased GPIB interface card into the card slot on the
rear panel of the instrument.
3. Connect the instrument with the computer via the GPIB cable. After the con-
nection is successful, turn on the power switch of the instrument.
4. Press the composite keys [Shift]+[P-set] (System) on the front panel to en-
ter the system menu.
5. Rotate the knob or press the Up/Down key to select I/O and press [Enter].
6. Press the Left/Right key to select GPIB and press [Enter].
7. Press the numeric keys to set the GPIB address and press [Enter].
2.5.5 RS–232 Interface (Optional)
The RS-232 interface shares the same communication card (IT-E167) with the
analog function.

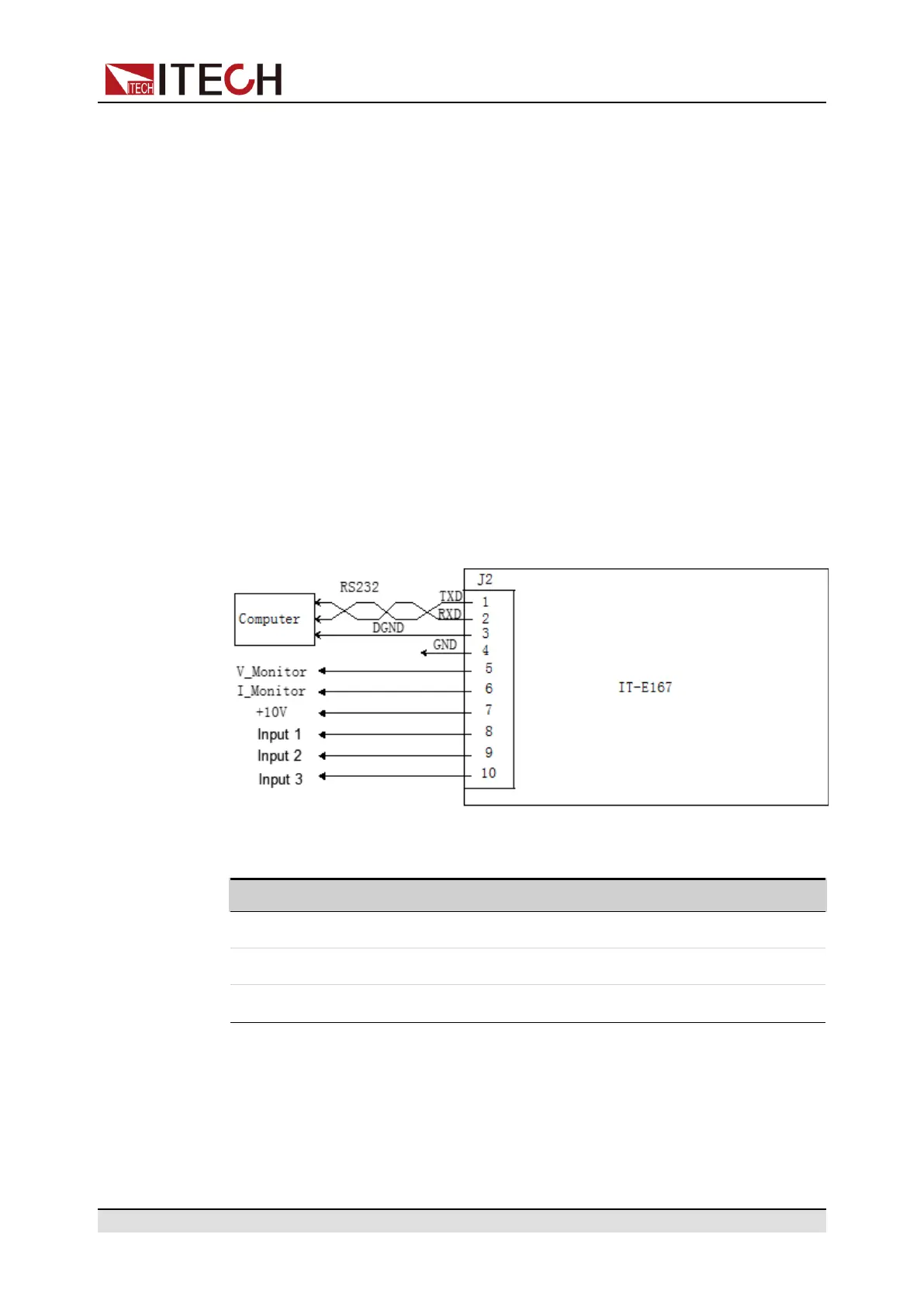

Definition of RS-232 Pins
The definition of RS-232 pins are as follows.
When using the RS-232 interface for communication, connect the pin 1, pin 2,
and pin 3 of the IT-E167 to the PC. The pin description is as follows:
Pins Description
1 TXD, transmit data
2 RXD, receive data
3 DGND, ground
RS–232 Configuration
When you purchase the interface accessory and successfully insert it into the
corresponding position on the rear panel of the instrument, the RS–232 menu
item will appear in the System menu. The specific steps are as follows:
