JACOBSEN AR3
SAFETY, OPERATORS & MAINTENANCE MANUAL
6 CONTROLS

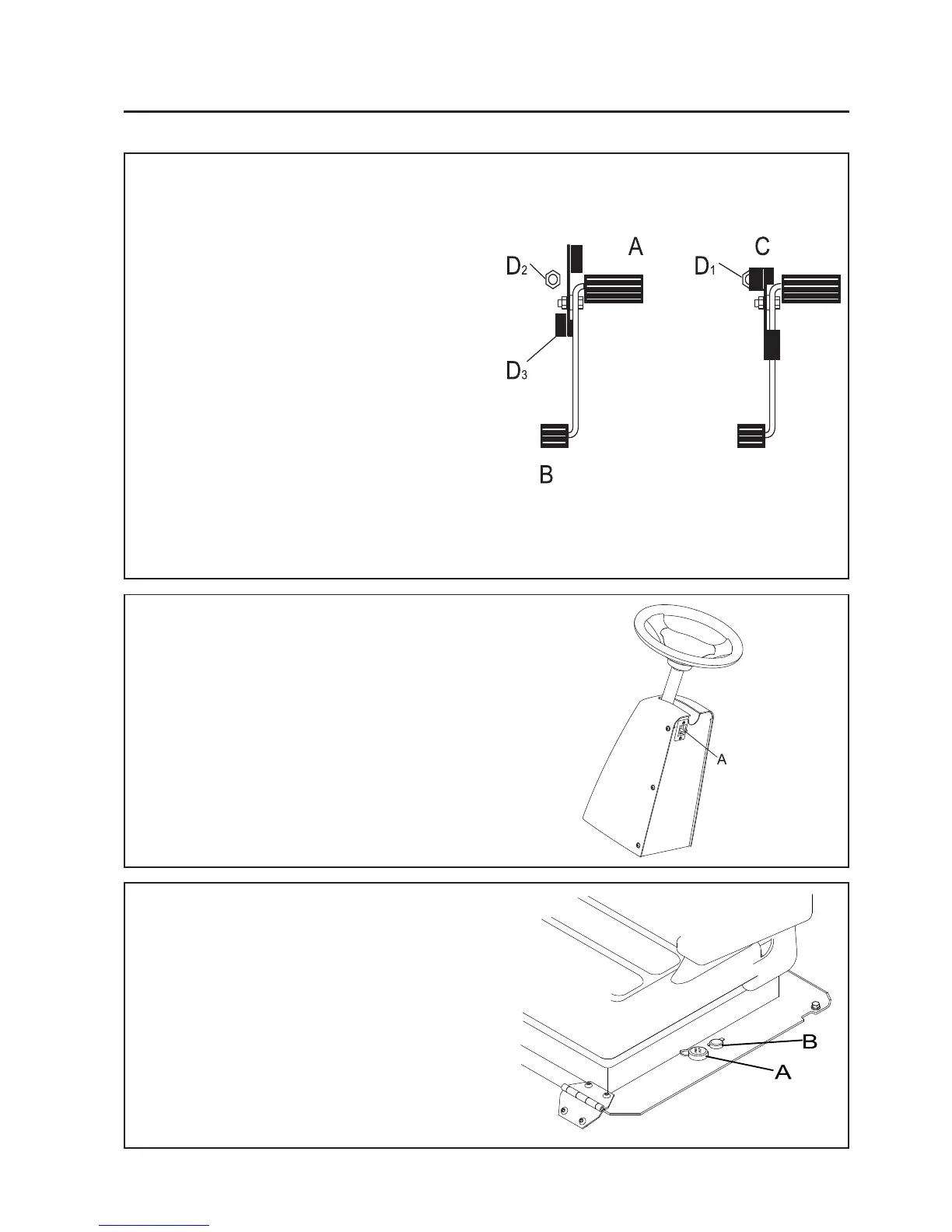

6.2 TRACTION FOOT PEDAL
A. Forward Travel (Traction Pedal)
Press front of pedal down for forward travel.
Release pedal to slow tractor and stop. Do not
press traction pedal when parking brake is set and
parking brake light (W) is lit.
B. Reverse Travel (Traction Pedal)
Press rear of pedal down for reverse travel.
Release pedal to slow tractor and stop. Allow
tractor to come to a complete stop before reversing
direction. Do not press traction pedal when parking
brake is set and parking brake light (W) is lit.
C. Mow Speed Stop
Limits forward speed while mowing. To operate at
lower travel speed while mowing, rotate lever so it
contacts stop screw (D1) on floor board when
forward travel pedal is pressed. To travel at full
speed, set lever in position shown (D3). Stop screw
(D2) can be adjusted to set specific mow speeds.
6.3 STEERING TILT CONTROL
Pull lever A up to release steering column. Tilt
column up or down to position desired. Release
lever A to lock steering column in place
6.4 Power Outlet
The Auxiliary Power Outlets are situated on the left
hand side of the seat on the seat plate
A Automotive 12V Power Outlet (Cigar Lighter)
B Accessory 12V Power Outlet
