9 ADJUSTMENTS
9.7 SEAT (Milsco CE-200)
The seat can be adjusted for operator's weight and
leg reach to provide a comfortable position for
operating the machine.

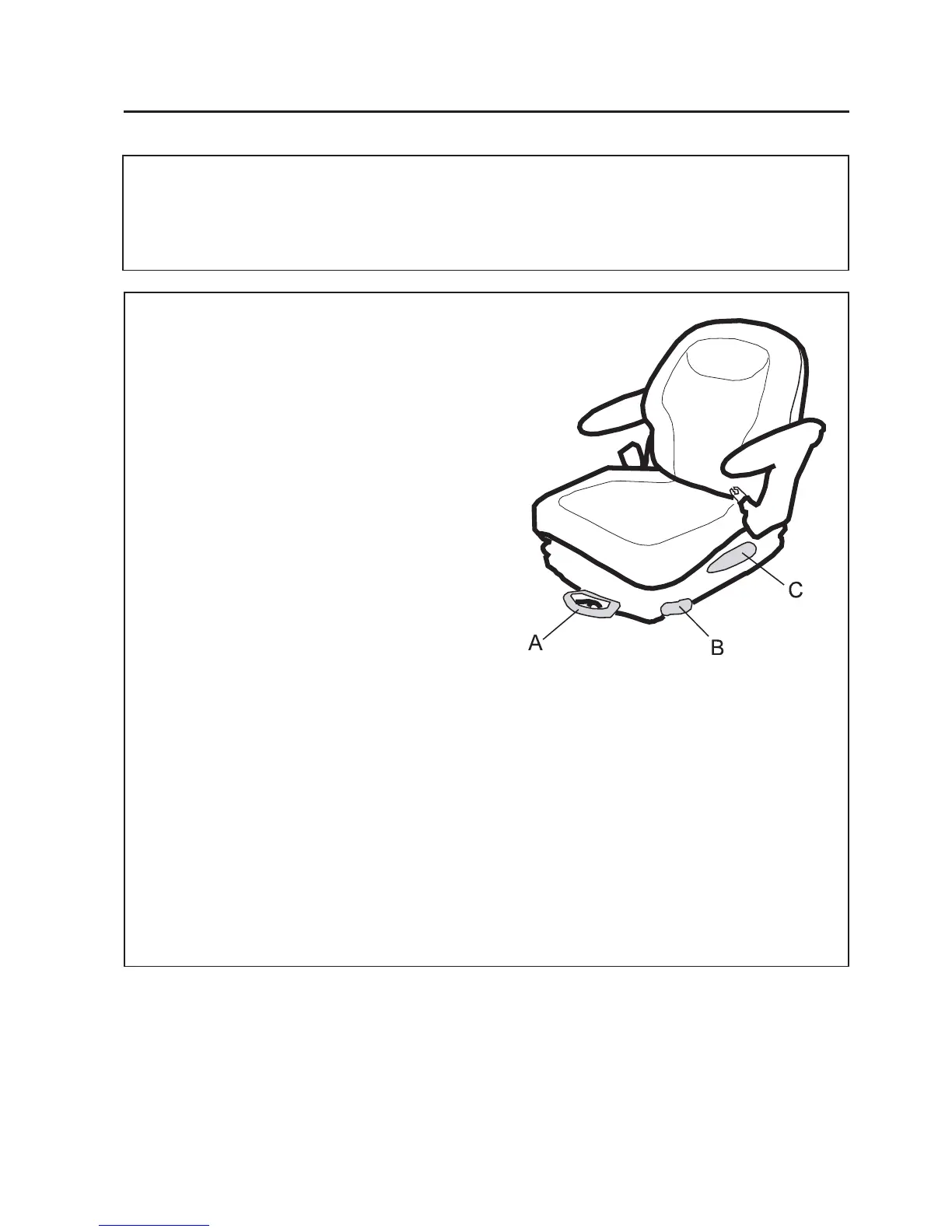

A. ADJUSTMENT FOR OPERATOR WEIGHT
To Adjust:
Whilst sitting on the seat push knob A downwards
and allow it to slid back upwards until a comfortable
amount of suspension is found.
B. FORE AND AFT ADJUSTMENT
To Adjust:
The position of the adjusting lever is on the left
hand side of the seat below the seat cushion (B). By
moving the lever upwards, the seat can be slid
backwards and forwards. When in the desired
position release the lever to locate in one of the pre
set positions.
C. BACK REST ADJUSTMENT
The back rest has three preset positions
To Adjust:
Move the lever upwards and slid the seat cushion
backwards and forwards to obtain a comfortable
back rest position.
NOTE: The seat is fitted with a microswitch to
sense operator presence. When the machine is
fitted with a ROPS frame or cab a lap belt is fitted
and should be worn at all times
9.6 SPEED LIMITER
The transport and mow speeds are factory set and
should not need altering.
NOTE: Textron Turf Care cannot be held
responsible for loss of performance or machine
damage if these speeds are adjusted outside the
speeds shown in the machine specification.
