JACOBSEN G-PLEX III Series: FH & FJ
SAFETY AND OPERATORS MANUAL
6 CONTROLS

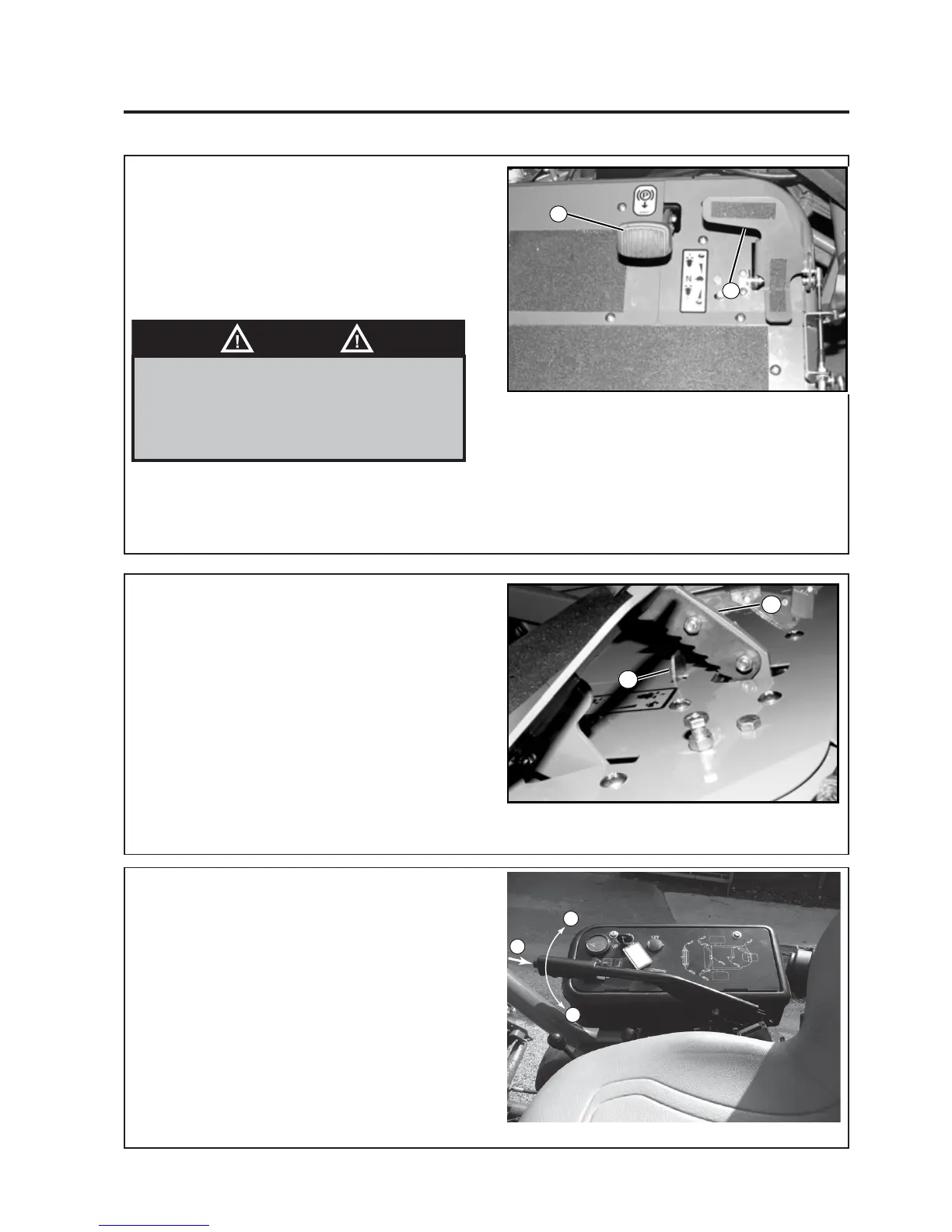

6.3 CONTROL PEDALS
The Direction/Speed Pedal controls speed and
direction. Depress front of pedal to go forward,
depress back of pedal to go backward. Increased
movement of the pedal will increase speed. To slow
and stop the unit, release the pedal completely.
Proper braking is provided by hydrostatic pressure.
If more braking is required, press on the brake pedal.
1
2
1. Direction/Speed Pedal
2. Brake Pedal
NOTE
To reduce fatigue during normal forward operation,
the operator’s heel should rest on the floorboard
next to the pedal (not on the lower part of the
pedal).
6.4 PARKING BRAKE PEDAL (When fitted)
The Parking Brake can be engaged by depressing
the brake pedal until the unit is at a complete stop.
Once the unit is stopped, push the parking brake
latch forward to hold the brake pedal. Disengage
the parking brake by depressing and releasing the
brake pedal.
1. Brake Pedal
2. Park Brake Latch
1
2
6.4A PARKING BRAKE LEVER (When fitted)
The Parking Brake can be engaged by depressing
button A and pulling the lever upwards to position B.
To release the parking brake depress button A and
lower lever to position C.
DO NOT attempt to force the direction
control pedal to the neutral (stop)
position or to change directions before
coming to a complete stop. Abrupt stops
or changes in direction may cause injury.
WARNING
A
B
C
