JACOBSEN G-PLEX III Series: FH & FJ
SAFETY AND OPERATORS MANUAL
9.18 Tires
Keep tires properly inflated to prolong tire life.
Check inflation pressure while the tires are cool.
““Use an accurate, low pressure tire gauge.
Keep tires inflated to the air pressure specified
below.
20 x 10 - 10 Turf Tires 9 psi (0.62 bar)
9.19 BRAKES
Place the front axle on axle stands and remove the
front wheels. Inspect the Discs and pads for wear
and replace if necessary. Remove all debris from
around the brake assembly and ensure the calliper
is free to float.

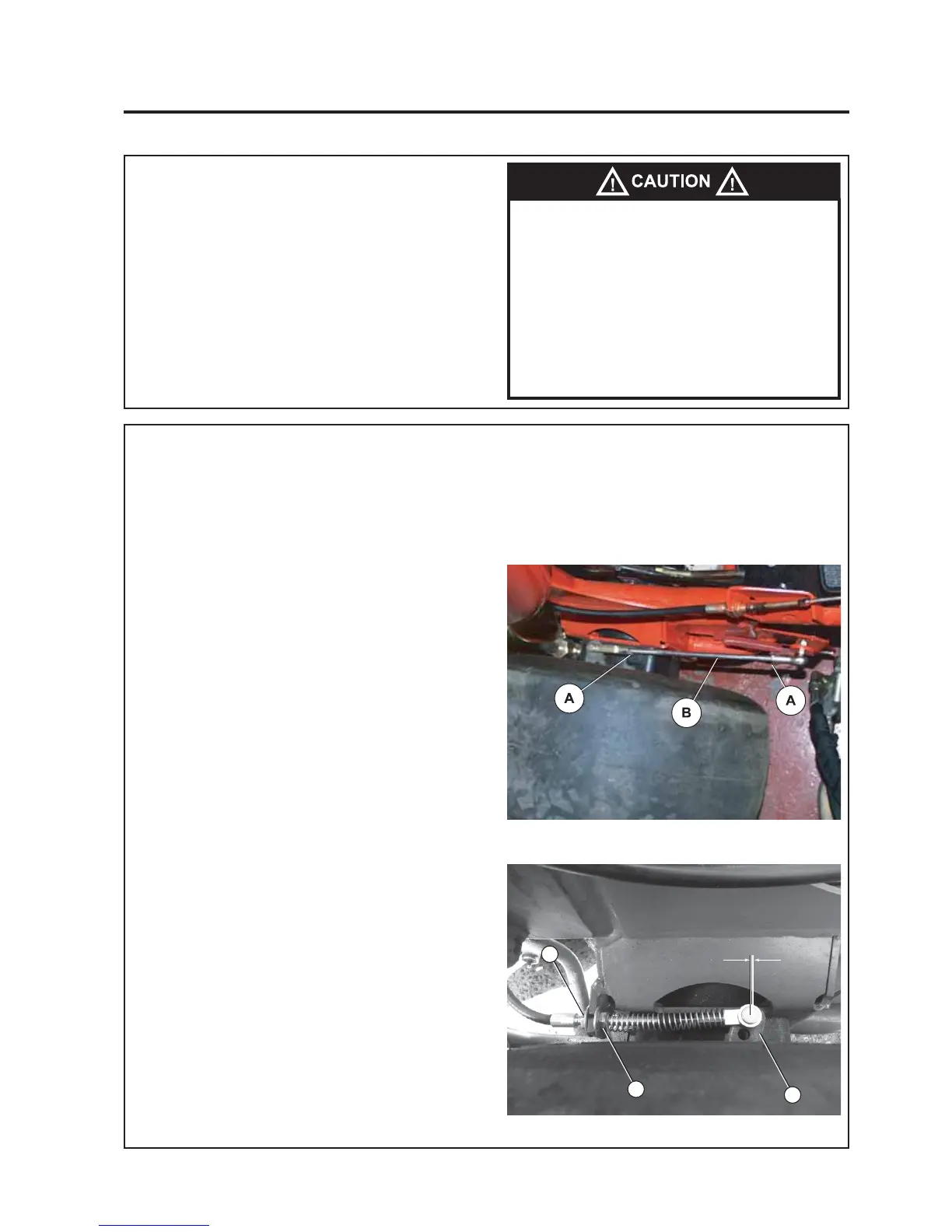

Foot Brake (When fitted)
To Adjust
a. Release the locknuts A on either end of the
brake rod B.
b. Rotate the brake rod B clockwise when
viewed form the operating position.
c. Check the foot pedal can be pushed down to
the first notch before resistance is felt.
d. Check the brake switch for clearance
between the plunger and chassis when the
brake is applied.
Hand Brake (When fitted)
To Adjust
a. Release locknuts A.
b. Adjust cable until 1mm of movement is
obtained at calipier lever B when the hand
brake is NOT applied.
c. Adjust both brake calipiers equally.
d. Tighten nuts A.
e. Check hand brake operation.
9 LUBRICATION & MAINTENANCE
Caution must be used when inflating a low
pressure tire to the recommended
pressure. Check pressure with a low
pressure tire gauge before connecting an
air hose to a partly inflated tire.
Due to the low air volume requirements
of a small tire, over inflation may be
reached in a matter of a few seconds,
which could cause the tire to explode.
