CONTROLS 3
GB-7
3 CONTROLS
3.1 ICONS ___________________________________________________________________
WARNING
Never attempt to drive the tractor unless you have read the Operator’s Manual and know how to
operate all controls correctly.

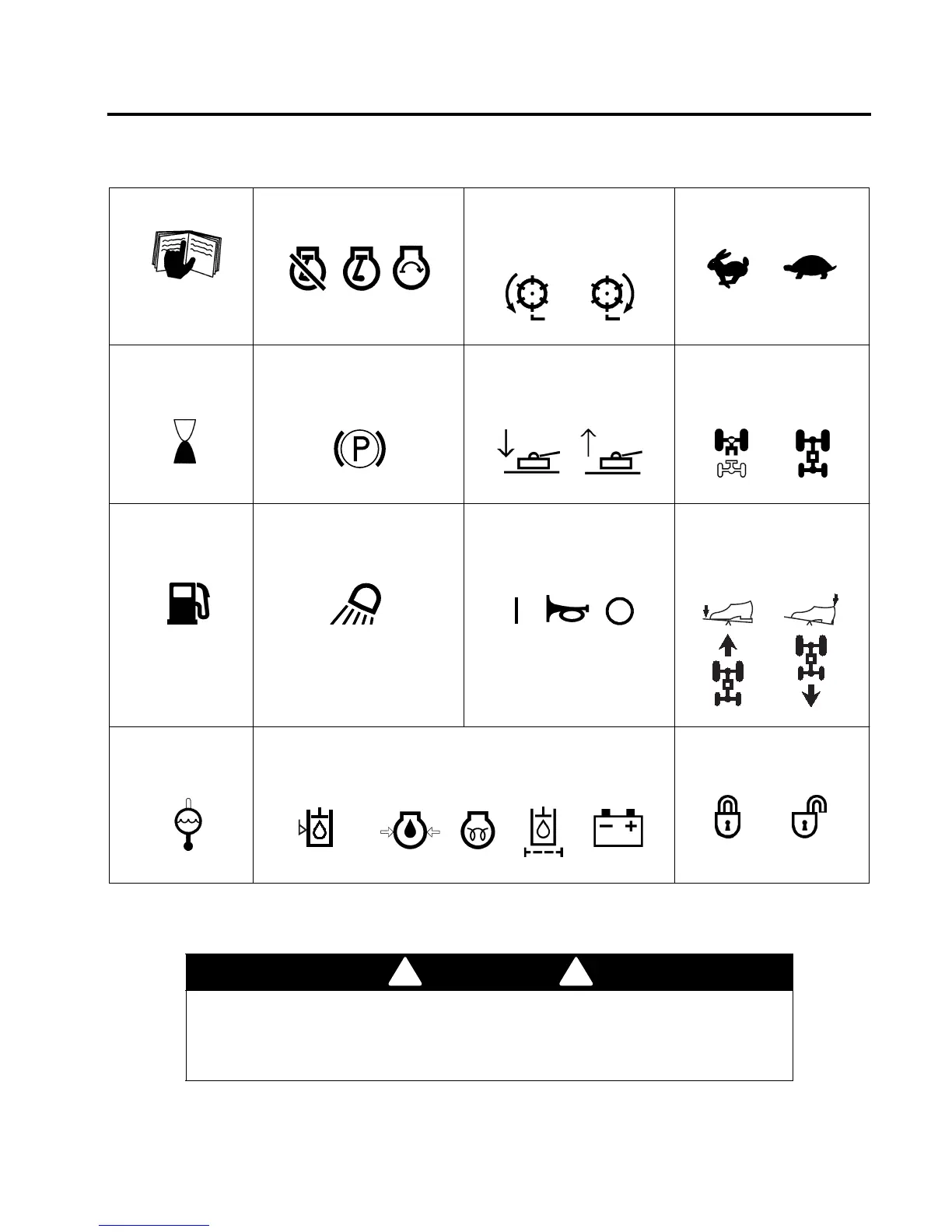

Familiarize yourself with the icons shown above and what they represent. Learn the location and
purpose of all the controls and gauges before operating this tractor.
Read Manual
High Low
Engine Throttle
Mower Rotation
2-WD 4-WD
Lock Unlock
Forward Reverse
Drive
Travel
Cruise Control
Off Run
Engine
Start
Parking Brake
Forward
(Cut)
Reverse
(Backlap)
Coolant
T
emperature
Fuel
Mowers
Lower Raise
Work Lights
Hour Meter
Oil Level Switch
On Off/Test
Engine Oil
Pressure
Glow
Plug
Hydraulic
Oil Filter
Battery
Charge
Warning Lights
Hydraulic Oil
Level
D
!
!
