CONTROLS 4
en-16

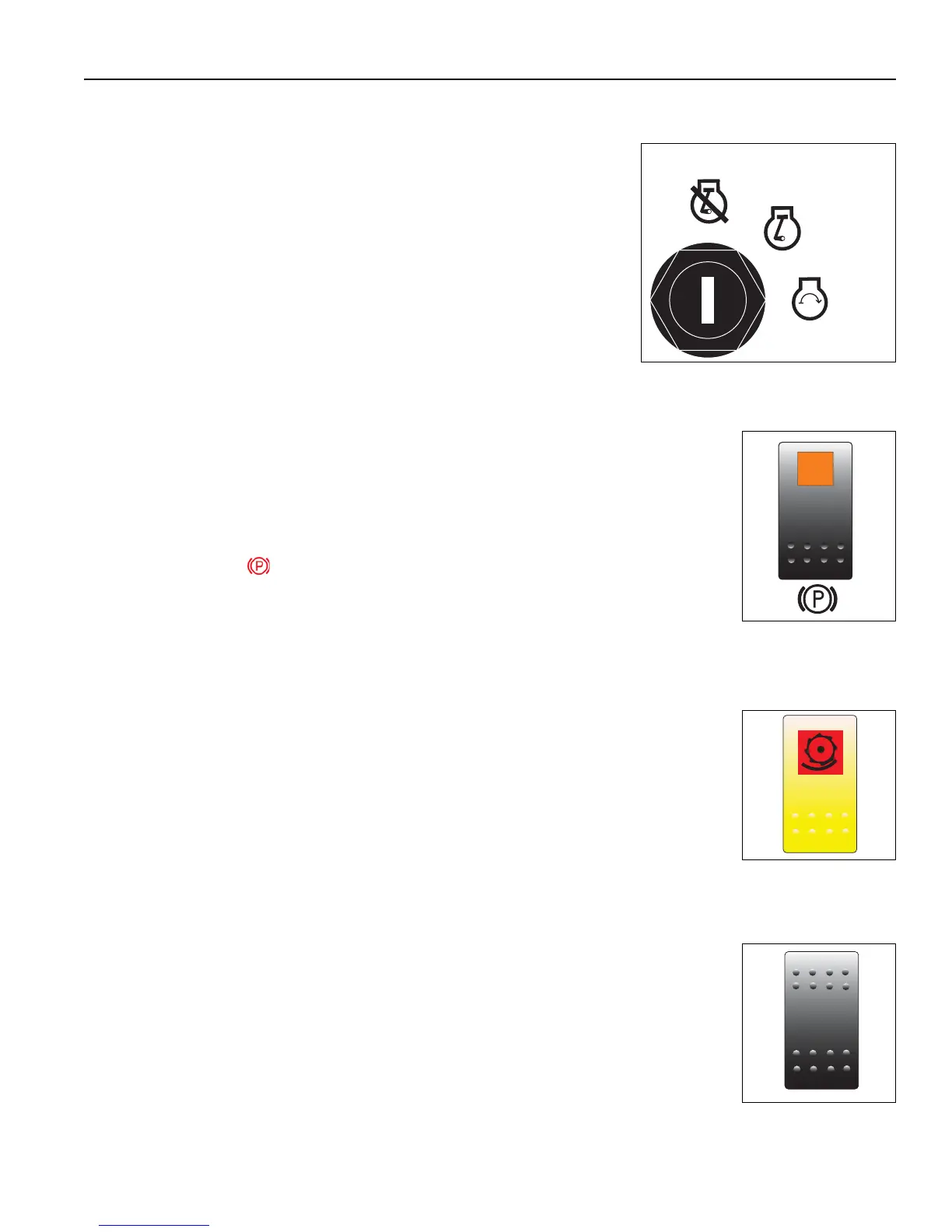

4.2.1 KEY SWITCH _____________________________________________________________
Turn the key switch to the 'START' position to start the engine. When the engine
starts, release the key and allow to return automatically to the 'RUN' position.’
To stop the engine, turn the key to the ‘OFF’ position.
NOTE. There can be a time delay before the engine starts, it depends on the
engine temperature while the glow plugs operate automatically.
4.2.2 PARKING BRAKE SWITCH __________________________________________________
Move the orange button back and press the front of the switch to engage the parking brake.
When the engine is stopped, the parking brake is applied with the switch in both the ON and
OFF position.
To release the parking brake, press the rear of the switch.
The parking brake icon is displayed on the visual display screen when engaged.
DO NOT apply the brake while the machine is in motion.
4.2.3 MOW SWITCH ____________________________________________________________
The mow switch engages cutter rotation.
To cut grass, push the front of the switch and move the joystick forward to lower the cutting
units. When the switch is in the ON position, the red LED on the switch is illuminated.
To stop the drive to the cutting units, press the rear of the mow switch.
When lifted out of work or the operator leaves the seat, cutting units rotation is stopped.
4.2.4 LIGHT SWITCH____________________________________________________________
Turns the work lights ON and OFF..
Push the top of the switch to turn the lights ON.
Push the bottom of the switch to turn the lights OFF.
