CONTROLS 4
en-36

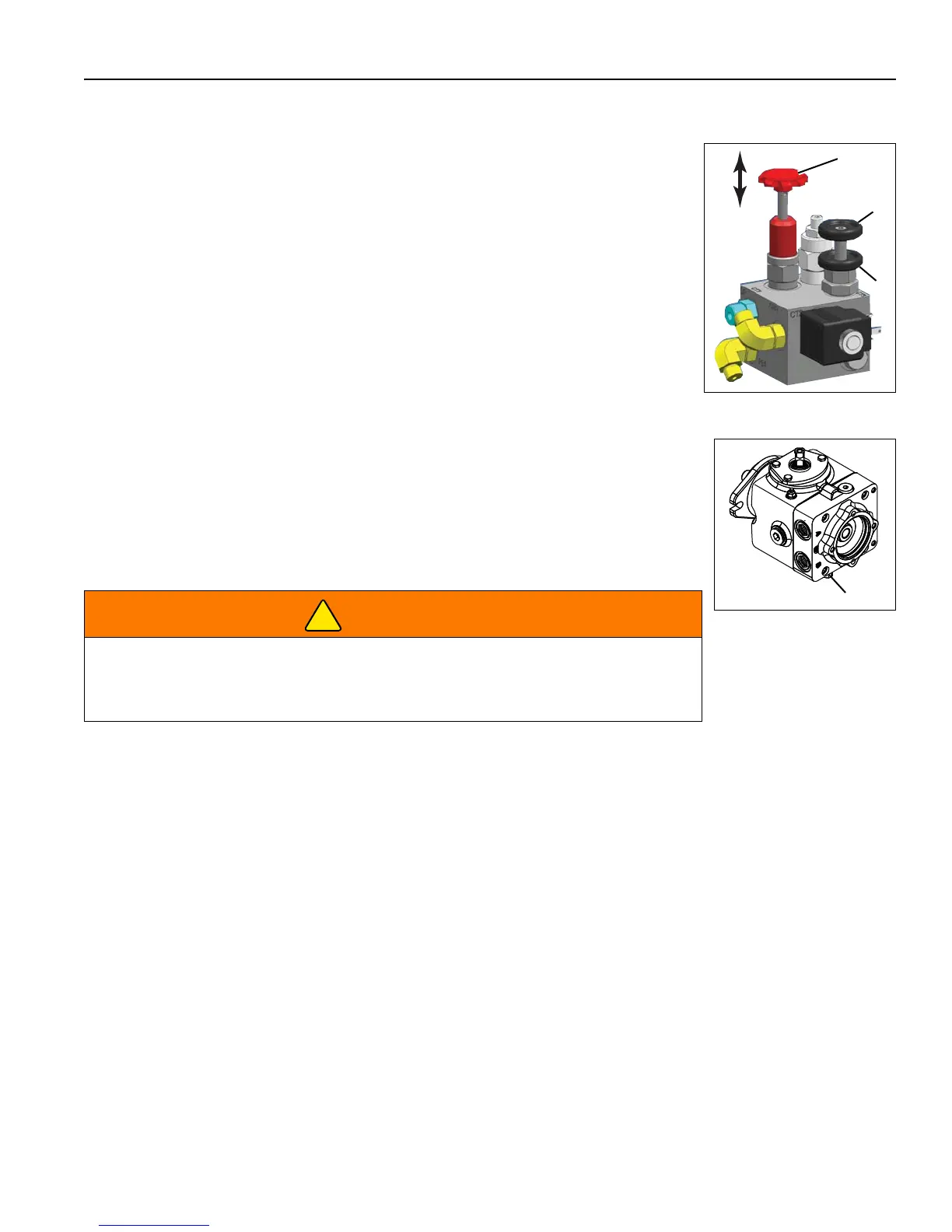

4.8 PARKING BRAKE RELEASE VALVE __________________________________________
The Parking Brake Release Valve is situated under the operator platform, on the left hand
side of chassis plate. The Parking Brake Release Valve is used to release the parking
brake when the engine is not in operation.
The Parking brake is released with the hand wheel (A) turned completely to the right
(clockwise), after you release lock wheel (B). Use the hand pump (C) to create enough
pressure to release the brakes (50 to 60 strokes will give 90 seconds of brake release).
When complete, rotate the hand wheel (A) to the left (counter clockwise) completely and
lock with wheel (B).
This method of brake release is to recover the vehicle a short distance only and should be
carried out on level ground.
4.9 TOW VALVE ______________________________________________________________
The Tow valve is situated on the bottom of the transmission pump.
1. To push the machine, disengage the parking brake, See Section 4.8
2. Turn screw (A) located on the rear side of the transmission pump three complete
turns counterclockwise. Set the steering wheel so that the rear wheels are pointing
straight ahead.
3. After pushing the machine, return the parking brake valve, See Section 4.8 to its
normal position and screw (A) on the pump to its operating position.
WARNING
THE FREE WHEEL FACILITY IS FOR RECOVERY PURPOSES ONLY.
Do not tow the machine for more than a few meters, or allow the machine to free wheel
down slopes even when unloading down ramps.
C
A
B
