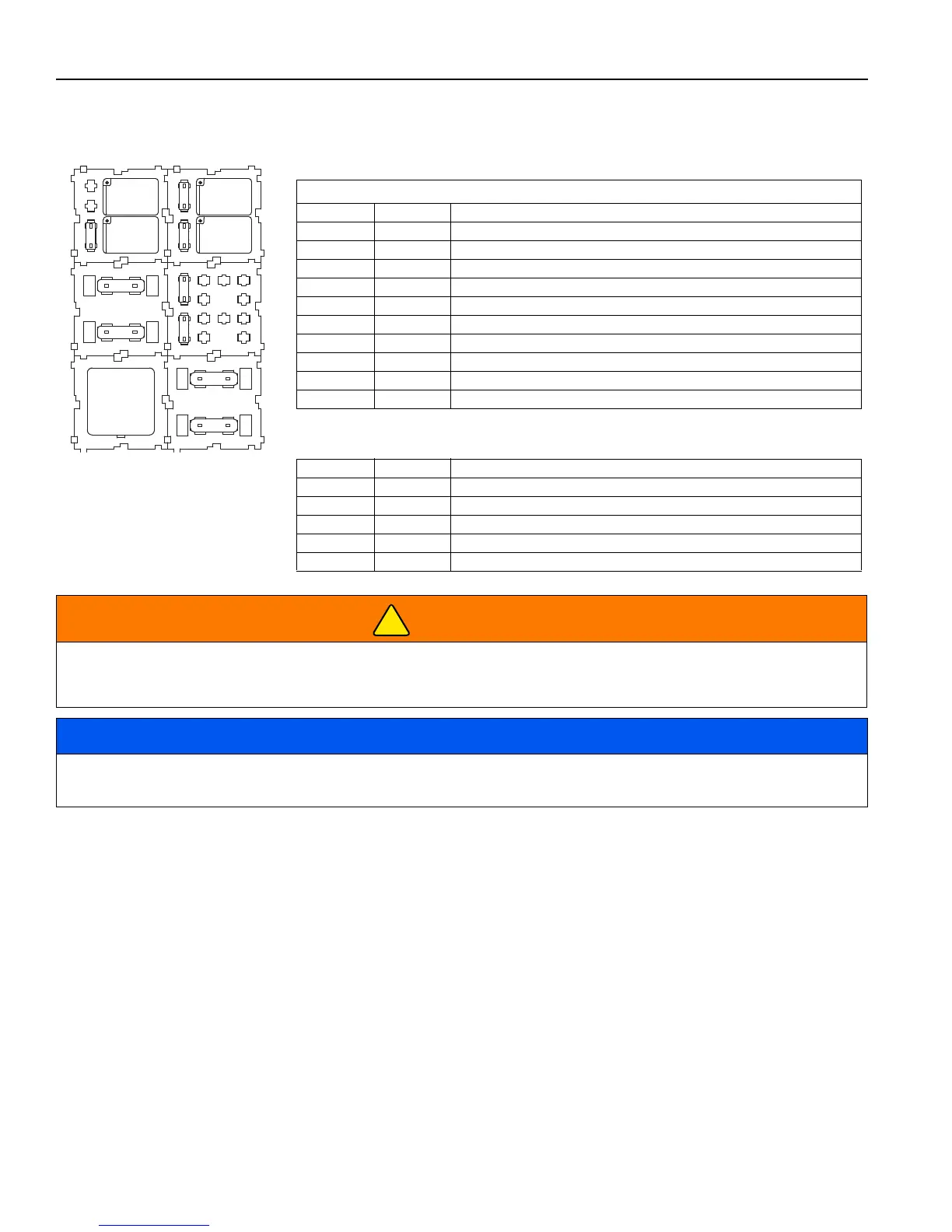

11.1 FUSE AND RELAY/COMPONENT IDENTIFICATION______________________________
FUSES
Relays
FUSE HOLDER 1
Fuse Rating Protected Circuits
F1 10A 12 Volt Accessory Outlet
F2 40A Glow Plug Relay
F3 30A Ignition Relay
F4 15A Hot to Key Switch and Display
F5 30A Fan
F6 20A Hot to Machine Control Unit
F7 20A Hot to Machine Control Unit
F8 10A Air Ride Seat
F9 30A Starter Relay
F10*
Relay Rating Circuits
K1 Micro Ignition Relay
K2 40A Glow Plug Relay
K3 Micro Start Relay
K4 Micro Fan Relay
K5 Micro 4WD Relay
WARNING
To prevent injury to the operator or damage to the mower, never replace a fuse with a higher amperage rating fuse.
Never bypass fuses. Fire damage may result.
NOTICE
For proper operation of the SLF530 mower, do not insert a fuse in the F10 location. Placing a fuse in the F10
location will select the wrong program in the mower controllers.
K1
F10
K3
15 20
F7
F4
K4
10
F1
K5
20 10
F8
F6
30
F5
K2
30
F3
40
F2
30
F9
