4 CONTROLS
en-35
4.5 TRACTION PEDAL ________________________________________________________

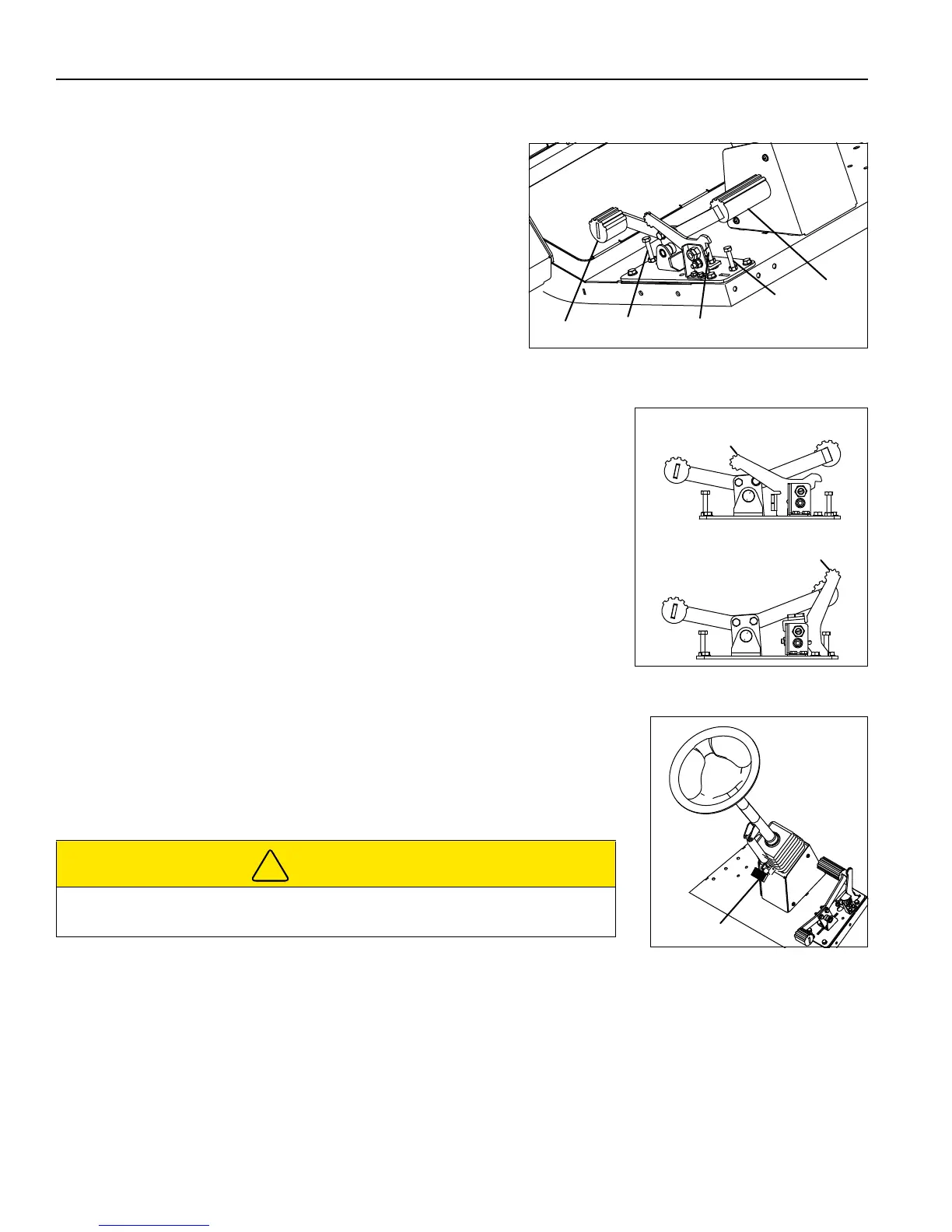

The traction pedal is found on the right side of the footplate.
• Carefully press the top (A) of the foot pedal to reach the
forward speed that you need.
• To stop - Carefully return the foot pedal to the Neutral
position.
• To move in the reverse direction press the bottom (B) of the
foot pedal.
There are adjustable stops for the forward transport speed (C) and
for the reverse speed (D). When the mow speed lever is in the Mow
Position, the pedal will contact the mow speed stop (E)
4.6 MOW SPEED LEVER_______________________________________________________
The mow speed lever is used to limit the forward speed while mowing.
• When you mow, rotate the mow speed stop lever to mow position (A) so
the traction pedal contacts the stop when the traction pedal is pressed. The
mow speed stop can be adjusted to set specific mow speeds.
• To travel at full speed, rotate the mow speed lever to transport position (B).
4.7 STEERING TILT CONTROL _________________________________________________
With the operators seat is in the correct position to operate the traction pedal. While
you hold the steering wheel, press the small foot pedal (A) at the base of the steering
column.
Tilt the column backward or forward to the correct position. Release the small foot
pedal to lock the steering column in position.
CAUTION
To prevent injury or property damage, do not adjust the steering tilt control
position while the mower is in motion.
