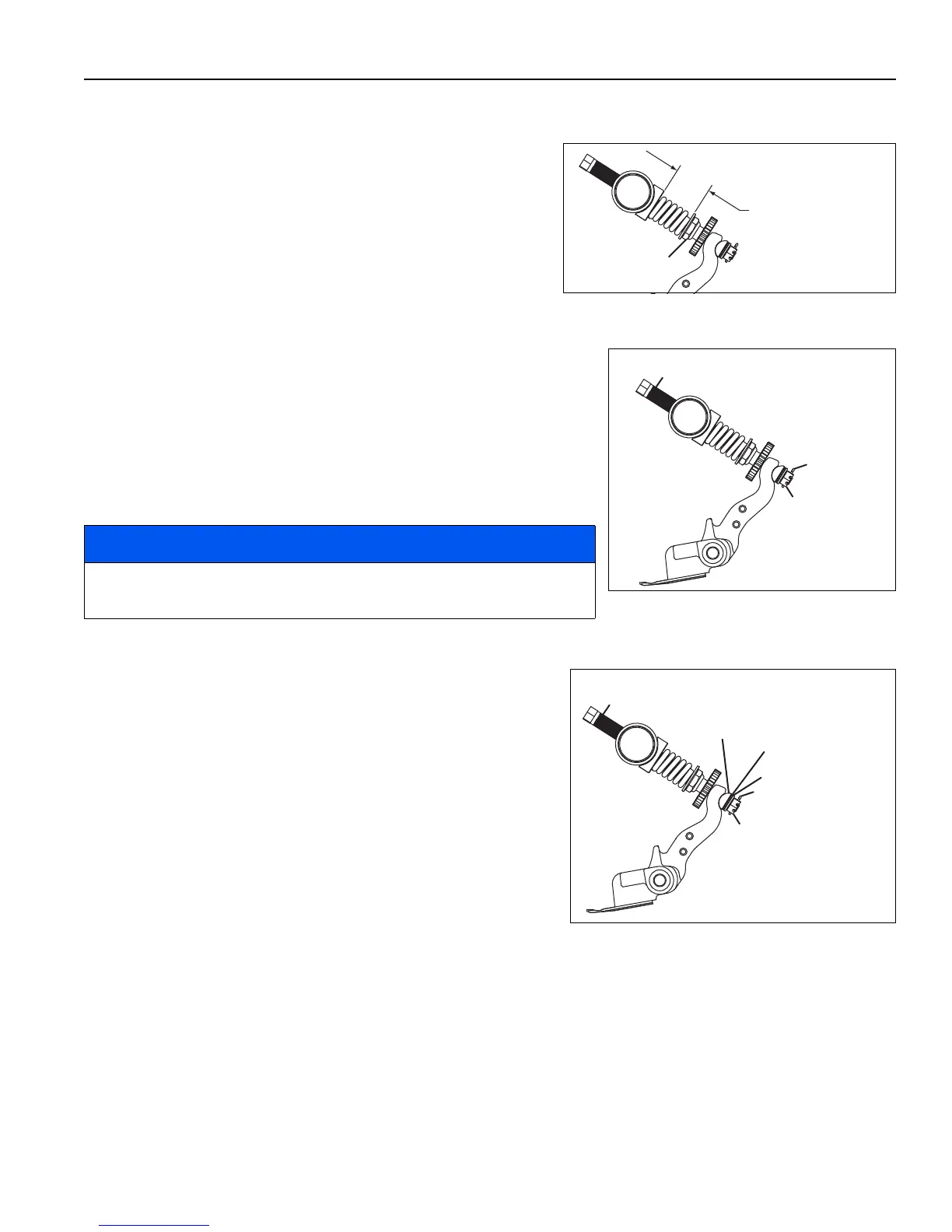

7.14 BEDKNIFE ADJUSTER SPRING ______________________________________________
For correct operation, the bedknife adjuster spring must be
compressed to 1-7/16 to 1-1/2 in. (3.65 to 3.8 cm).
To adjust the spring compression, loosen or tighten the locknut to get
a distance of 1-7/16 to 1-1/2 in. (3.65 to 3.8 cm).
After you adjust the spring, check the reel to bedknife adjustment.
7.15 BEDKNIFE ADJUSTER TENSION _____________________________________________
Remove the cotter pin. Completely loosen then tighten the slotted nut to
remove the clearance (no end play) between components. Continue to
tighten the nut until next slot in nut aligns to the hole in the bedknife
adjuster rod. Install a new cotter pin.
Check the torque needed to rotate the adjuster rod. Torque must be less
than 24 in. lb. (2 ft. lb.) (2.7 Nm).
After you adjust the nut, check the reel to bedknife adjustment.
7.16 GRINDING THE BEDKNIFE __________________________________________________
Lower the bedknife out of the reel for grinding without completely
removing the bedknife assembly.
1. Remove the cotter pin, slotted nut, Belleville washer, shim washer
(If needed) and half trunnion from both ends of the reel.
5. Press down on the adjuster end of the rod to rotate other end of
the adjuster out of the bedknife finger.
6. Rotate the bedknife backing to access the reel and bedknife.
7. After you grind the reel and bedknife, assemble the bedknife
using reverse order of removal. Check the adjustment of bedknife
adjuster tension (See Section 7.15), and the reel to bedknife
adjustment (See Section 7.9).
NOTICE
When you tighten the slotted nut more than necessary, the bedknife
adjuster rod will be difficult to adjust.
1-7/16 to 1-1/2 in.
(3.65 to 3.8 cm)
Locknut
Adjuster Rod
Cotter Pin
Slotted
Nut
Adjuster Rod
Slotted
Nut
Cotter Pin
Shim Washer
Belleville Washer
Half
Trunnion
