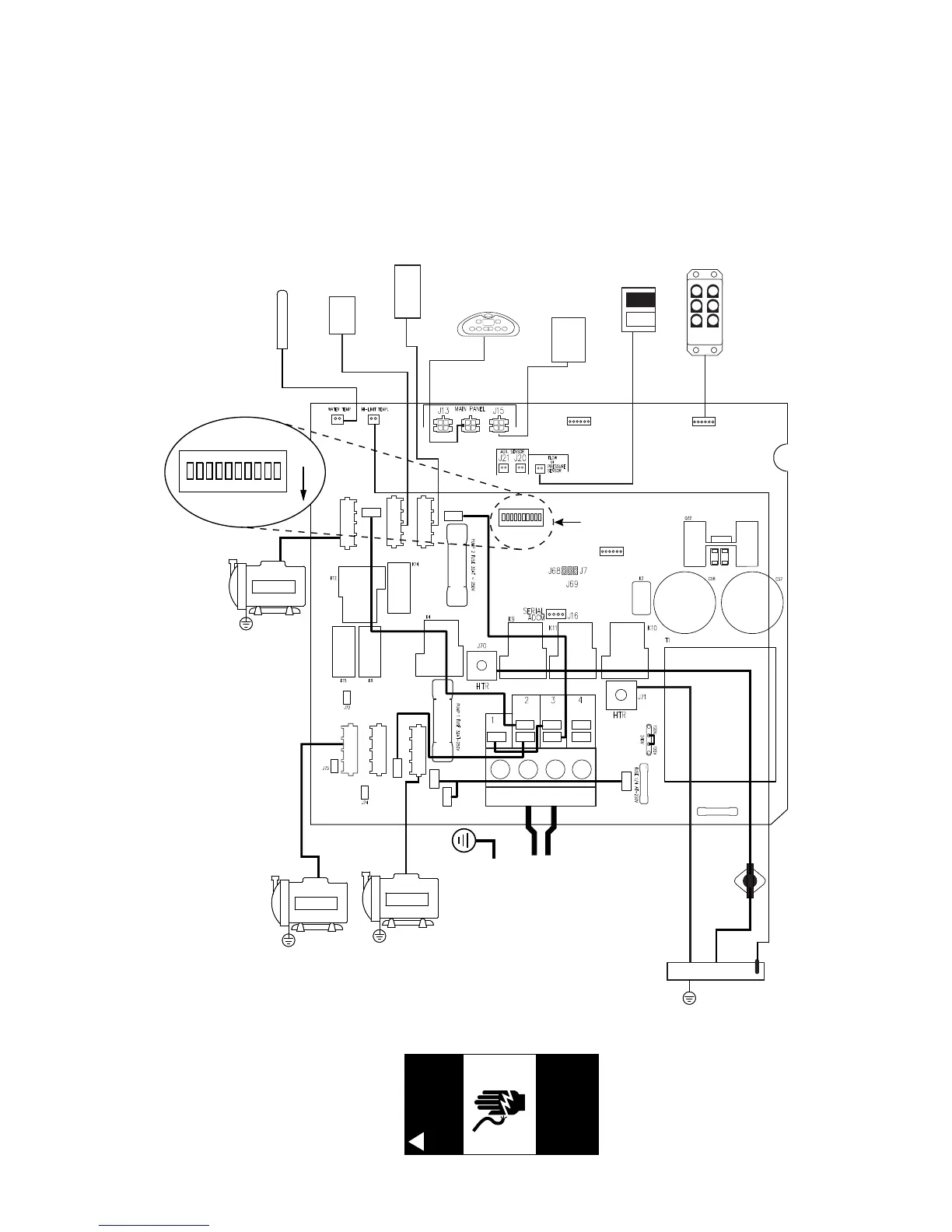

16.0 Circuit Board Diagrams
16.1 North American J-335, J-345, J-355, J-365, J-375 and J-385
Dedicated Power Models (60 Hz)
This wiring diagram is used for all North American, 240V (60 Hz)
dedicated power models.
CONTROL
PANEL
CLEARRAY
STEREO POWER
SUPPLY (OPTIONAL)
PUMP 1
LIGHTING
EXPANSION
A B C D
CIRC PUMP
OZONE
P1 2SPD
P2 1SPD
UV
A/V
30A (PMP 1)
30A (PMP 2)
WI-FI
(OPTIONAL)
240VAC, 26A/37A/48A
3-WIRE CONNECTION
60HZ 1-PHASE SERVICE
RED BLK
G-GRN
CIRC PUMP
STEP LIGHT
(OPTIONAL)
WATER
SENSOR
5.5KW HEATER
THERMAL
CUTOFF
PUMP 2
FLOW
SENSOR
5AT~250V
See Section 17.0
for Dip Switch
Settings
J33 J36
J53
J41
J46
J47
J51
J59
J38
J44
J49
J22
J23
J9
J24
J14
J18
J17
F4
J34
J29
J27
F6
J56 J57
S1
J50
ZONE 1ZONE 2
F2
F3
J35
J37
4A
5A
1 2 3 4 5 6 7 8 9 10
S1
1 2 3 4 5 6 7 8 9 10
ON
DANGER
Turn power off before servicing. This task should only be performed by a quali
-
fied technician.
!
RISK OF SHOCK OR ELECTROCUTION!
