Maintenance
Electrical System
113 9831/0650-3 113

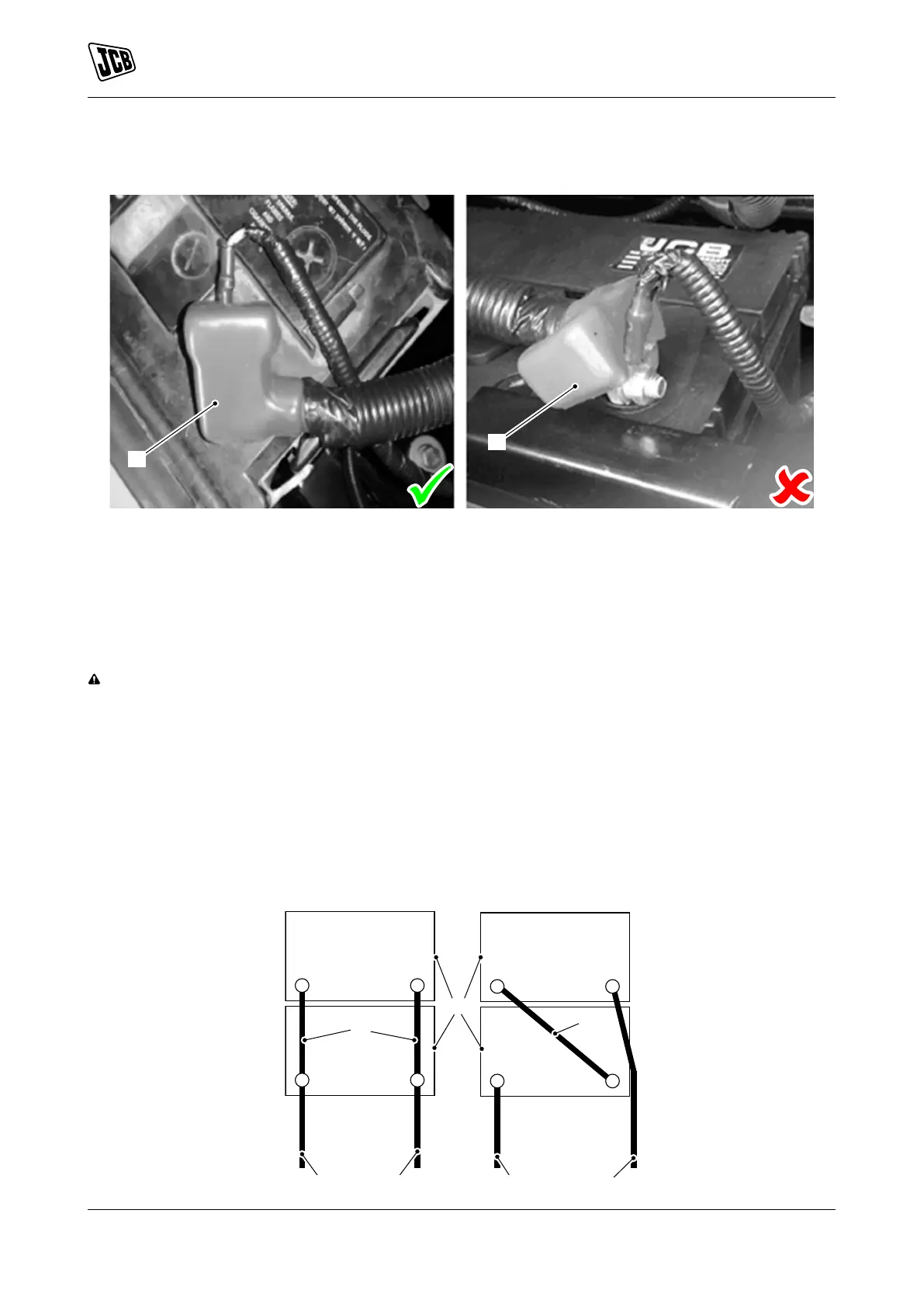

Battery Cable Installation
Figure 92.
A Rubber boot
1. Make sure to cover the battery connection with the rubber boot.
2. Lug should not bend, crack or stress during installation.
3. Make sure that lug should not touch to any conducting part.
Disconnect
CAUTION This component is heavy. It must only be removed or handled using a suitable lifting method
and device.
Notice: Before you install a pair of batteries to a machine, make sure you know the machines voltage.
Some machines require two batteries but have a 12 V electrical system. This means the batteries need to
be connected in parallel.
For 24 V machines, the batteries must be connected in series. Incorrect voltage may result in serious
damage to the electrical system.
The illustrations show typical battery connections. The actual battery connections installed on your machine
may look different.
Figure 93. Parallel and Series Connection (Example)
To Next Page
