Operation
Instruments
52 9831/0650-3 52
Depending upon configuration by the system designer, an external input can be used to inhibit a scheduled run.
If the engine is running OFF LOAD in AUTO mode and a scheduled run configured to `On Load' begins, the
set is placed ON LOAD for the duration of the schedule.
Front Panel Configuration
This configuration mode allows the operator to fully configure the module through its display without the use
of the DSE Configuration Suite PC Software.
Use the module's facia buttons to traverse the menu and make value changes to the parameters.

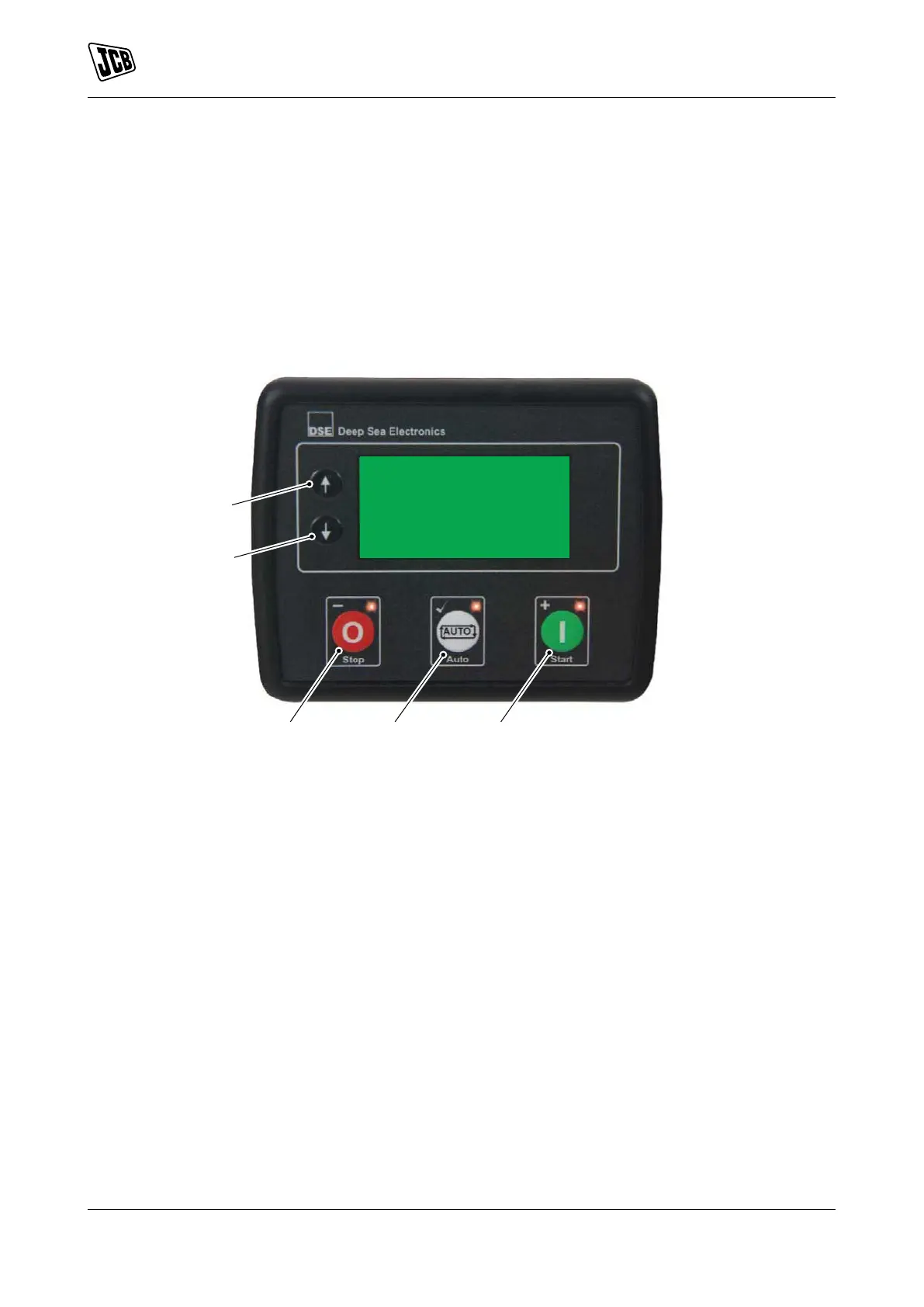

Figure 39.
A Next Section (101-201-301) B Previous Section (301-201-101)
C Previous Parameter (103-102-101) D Edit or Save Parameter
E Next Parameter (101-102-103)
Accessing the Front Panel Configuration Editor
1. Press the STOP/RESET and AUTO buttons together to enter the editor mode.
2. Press the UP or DOWN navigation buttons to cycle through the front panel editor to select the required
page in the configuration tables.
3. Press the MANUAL/START to select the next parameter or STOP/RESET to select the previous parameter
within the current page.
4. When viewing the parameter to be edited, press the AUTO button, the value begins to flash.
5. Press the MANUAL/START or STOP/RESET buttons to adjust the value to the required setting.
6. Press the AUTO button the save the current value, the value ceases flashing.
7. Press and hold the AUTO button to save and exit the editor, the configuration icon is removed from the
display.
Pressing and holding the MANUAL/START or STOP/RESET buttons will give auto-repeat functionality. Values
can be changed quickly by holding the buttons for a prolonged period of time.
The editor automatically exits after 5 minutes of inactivity to ensure security.
