7 - 1
Section C
Electrics
9803/6400
Section C
7 - 1
Issue 1
Revolution Sensor
Revolution Sensor Removal and
Installation
1. Prepare the Machine
Position the machine on level ground.
Stop the engine and remove the starter key.

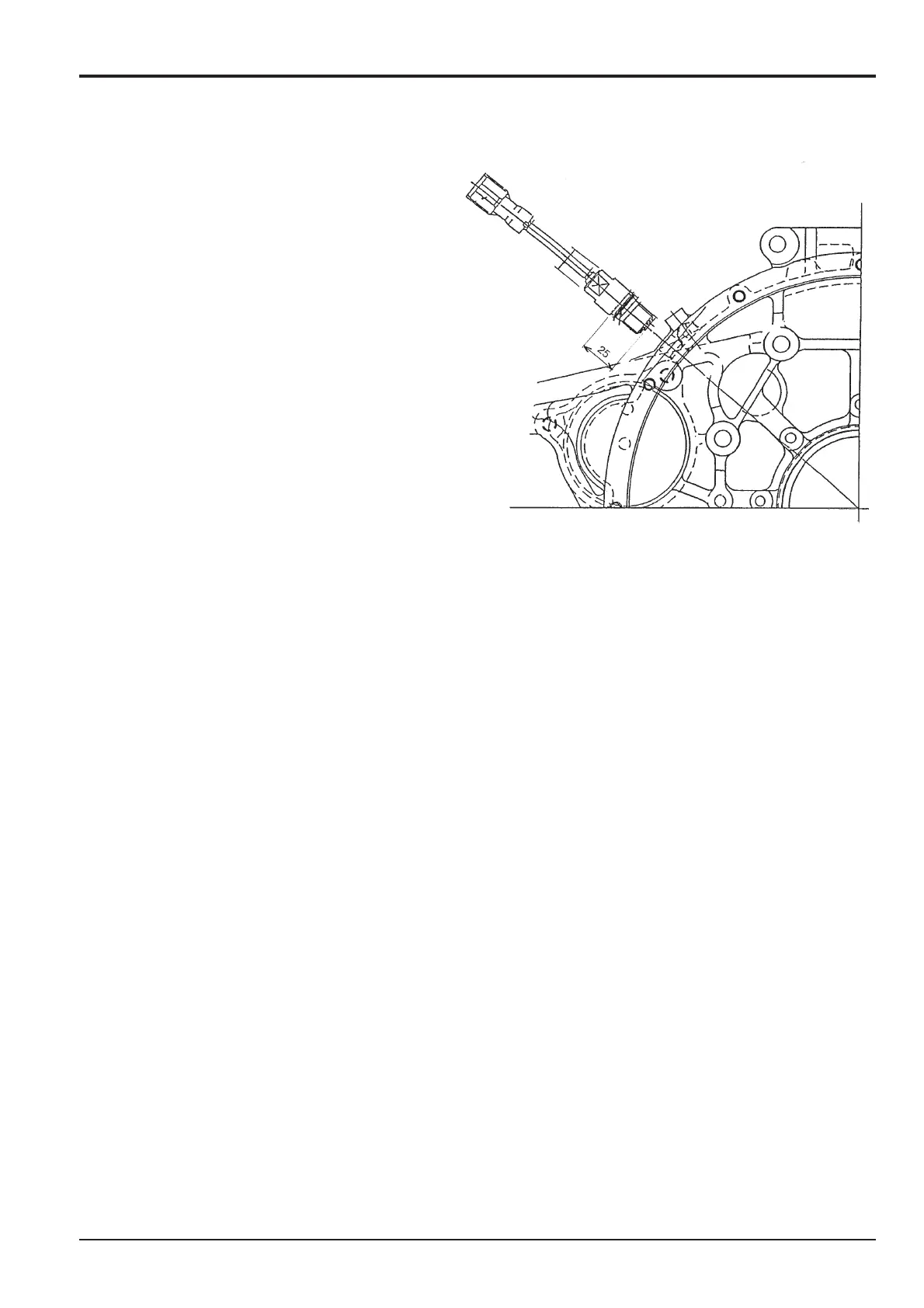

2. Locate the Flywheel housing
a. The flywheel housing is machined to accommodate
the sensor.
b. Remove the sensor by unscrewing it.
Note: Check the 'O'-ring for damage or wear, replace if
necessary.
3. Installation is by screwing the sensor in the machined
section at a torque of 44.13-53.0 Nm(33-40 lb ft).
Note: The clearance between the sensor and the flywheel is
3.1 +0.4 mm.
