Attachments
Boom and Slew Frame Installation JS200,
JS200LC
Boom Ram Installation JS200, JS200LC
Section B
Body & Framework
9803/6400
Section B
4 - 1
Issue 2*
Maintenance Specifications
*

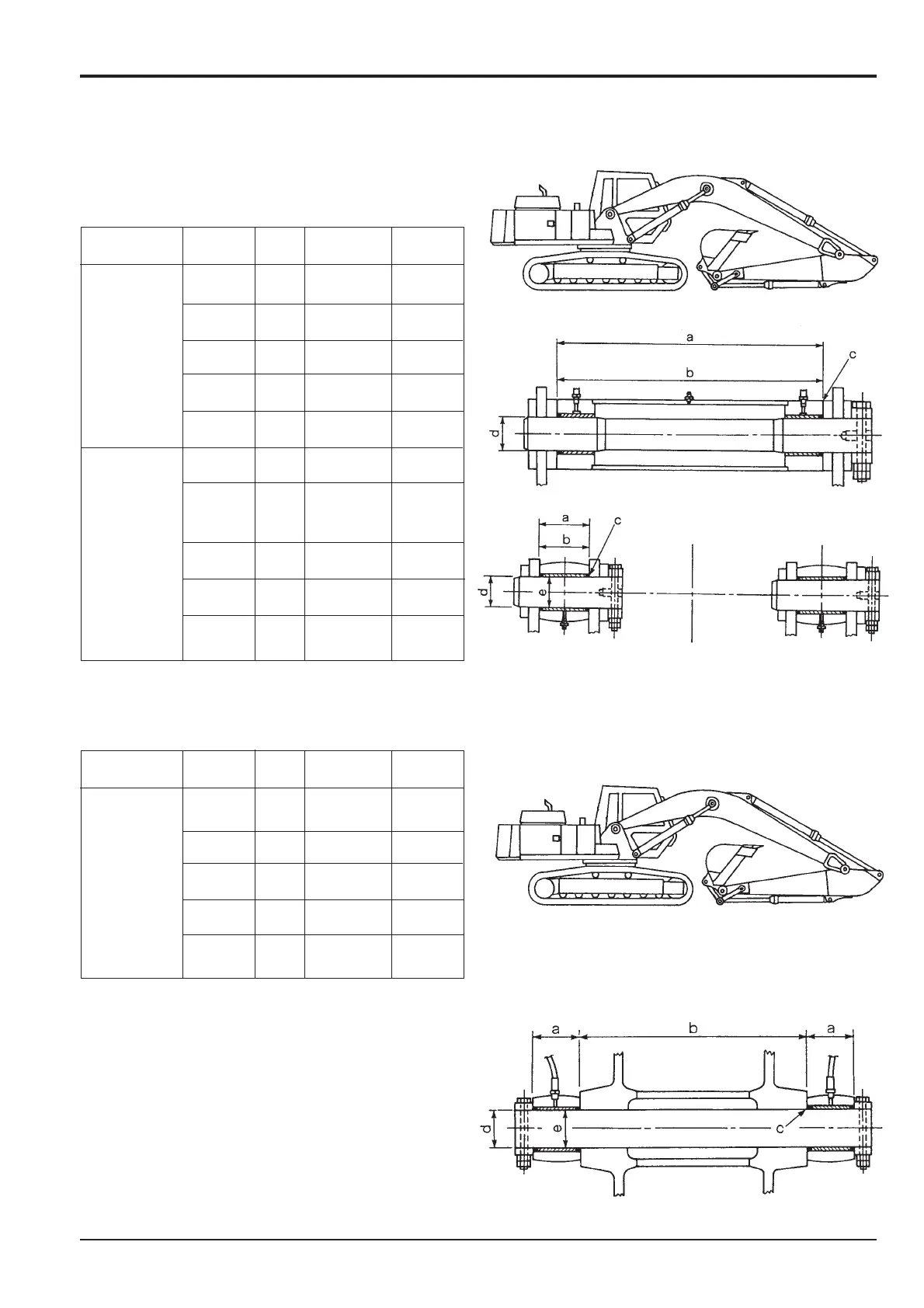

Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
1. Boom and Slew frame a 682 692
slew frame
installation
Boom b 681 679
Clearance c 1.0-3.5
Pin d ø90 ø89
Bushing (boom) e ø90 ø91.5
2. Boom ram Slew frame a 106 112
and slew
frame
installation
Boom ram
b 105 103
(dump end)
Clearance c 1.0-2.5
Pin d ø80 ø79
Bushing e ø80 ø81.5
(boom ram)
Shim for
adjustment
KRV1180
Shim for
adjustment
KRV1197
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
3. Boom and Boom ram a 100 98
boom ram (dump end)
installation
Boom b 525 519
Clearance c 1.0-2.5
Pin d ø85 ø84
Bushing e ø85 ø86.5
(boom ram)
Shim for
adjustment
KRV1178
*
