5 - 1
Attachments (continued)

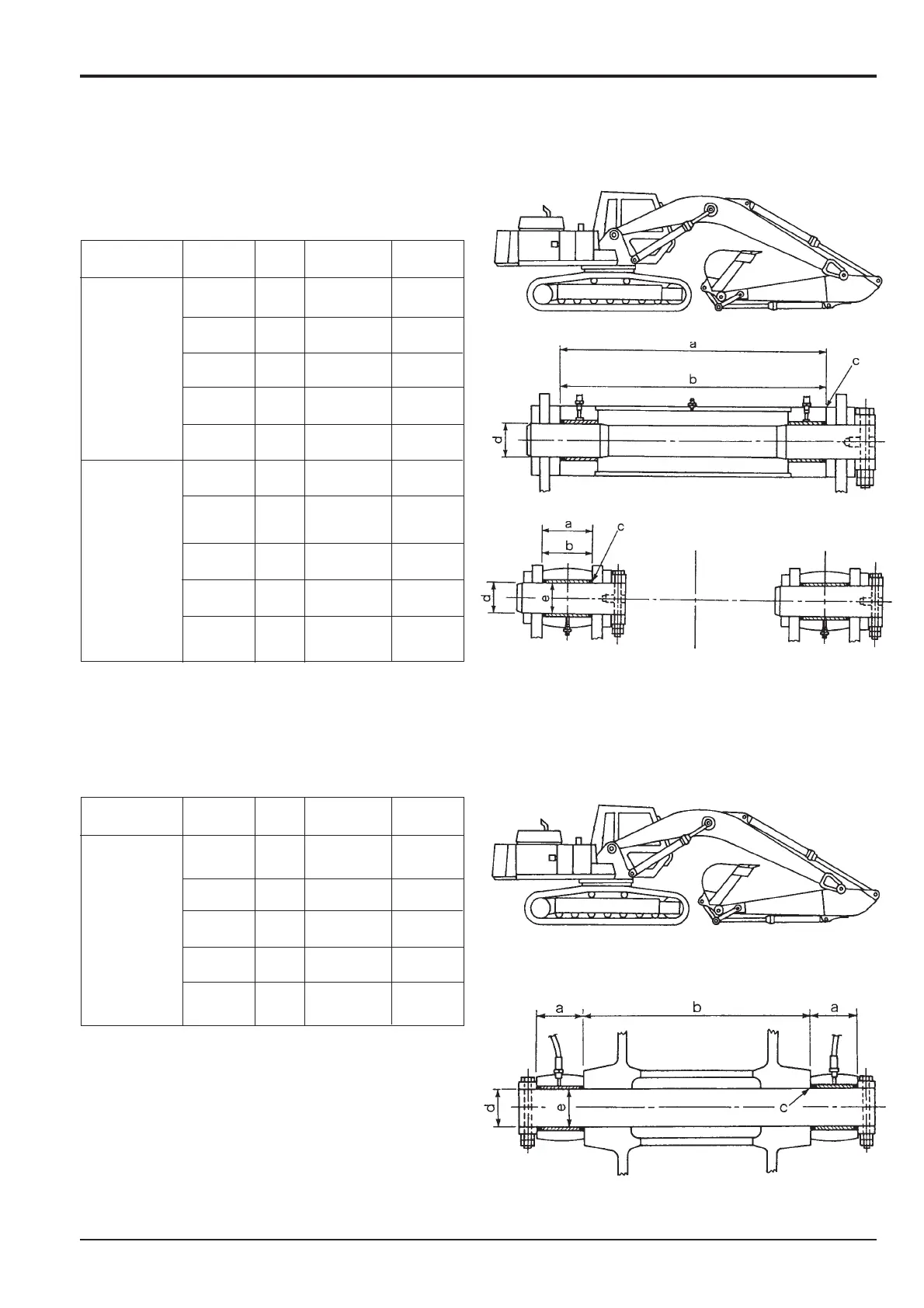

Boom and Slew Frame Installation JS240,
JS240LC
Boom Ram Installation JS240, JS240LC
Section B
Body & Framework
9803/6400
Section B
5 - 1
Issue 2*
Maintenance Specifications
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
1. Boom and Slew frame a 676 686
slew frame
installation
Boom b - -
Clearance c 1.0-3.5
Pin d ø100 ø99
Bushing (boom) e ø100 ø101.5
2. Boom and Slew frame a 109 115
slew frame
installation
Boom ram
b 108 106
(dump end)
Clearance c 1.0-2.5
Pin d ø90 ø89
Bushing e ø80 ø91.5
(boom ram)
Shim for
adjustment
KBV0474
Shim for
adjustment
KBV0764
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
3. Boom and Boom ram a 108 106
boom ram (dump end)
installation
Boom b 508 502
Clearance c 1.0-2.5
Pin d ø90 ø89
Bushing
e ø90 ø91.5
(boom ram)
Shim for
adjustment
KBV0837
*
