23 - 6
Regulator Assembly (continued)

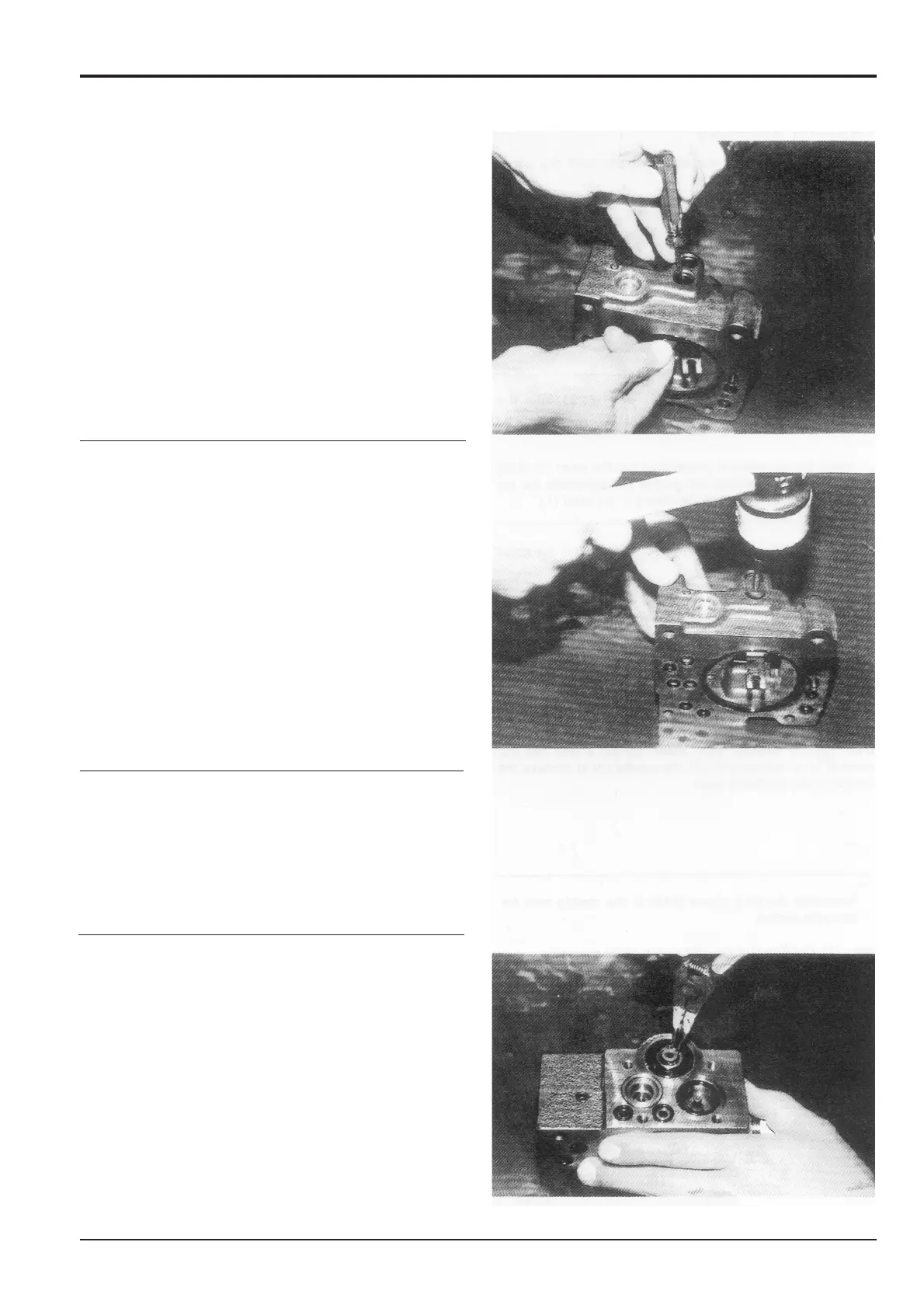

6. Insert the pin, which is press-fitted into the lever (2)
(613), into the pilot piston groove and assemble lever
(2).
7. Assemble the fulcrum plug so that the pin, which is
press-fitted in the fulcrum plug, is inserted in the lever (2)
pin hole. Install the locking ring (858).
8. Insert the adjusting plug (615) and assemble the locking
ring.
Note: (1) Ensure that the fulcrum plug and adjusting plug
are inserted into the correct hole. (2) Check the feedback
lever moves smoothly and is not too loose.
9. Assemble the return spring (654) and spring base (653)
into the spool hole and install the stop ring (814).
Section E
Hydraulics
9803/6400
Section E
23 - 6
Issue 1
Regulator JS200. JS240
