Operation
Drive Controls, Switches and Instruments
42 42
9811/5700-7

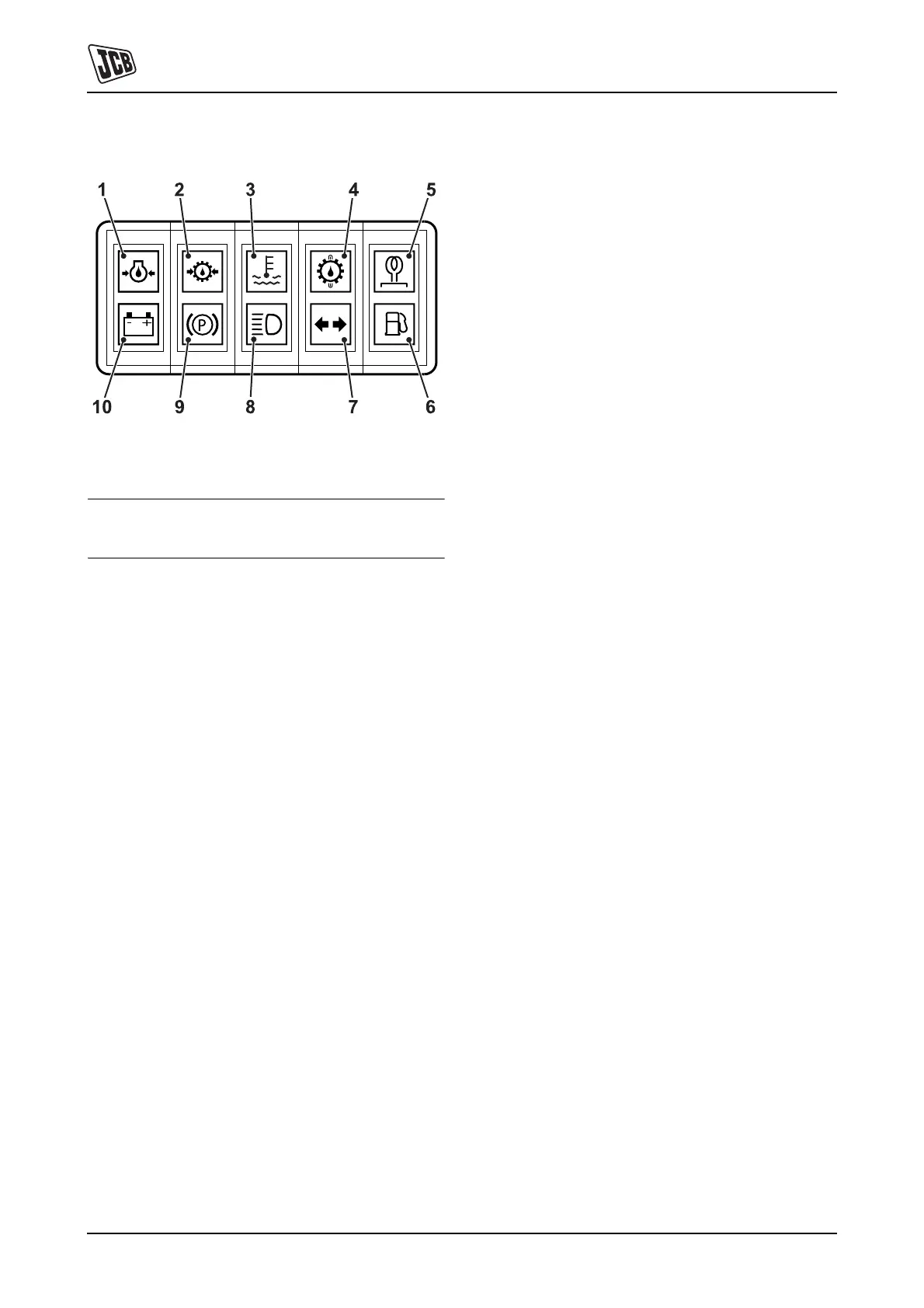

Warning Lights
340830-4
Fig 30.
!MCAUTION
If any of the audible/visual warnings operate while the
engine is running, stop the engine as soon as it is safe
to do so and rectify the fault.
4-2-1-2
1 Engine Oil Pressure Low
Audible/Visual. Lights if the engine oil pressure falls
too far. The light should go out a few seconds after the
engine is started.
2 Transmission Oil Pressure Low
Audible/Visual. Lights if the transmission oil pressure
falls too far. The light should go out a few seconds
after the engine is started.
3 Engine Coolant Temperature High
Audible/Visual. Lights if the engine coolant
temperature rises too far.
4 Transmission Oil Temperature High
Audible/Visual. Lights if the transmission oil
temperature rises too far.
5 Cold Start (If fitted)
Visual Only. With the starter switch in position III, if the
outside air temperature is -6°C (21°F) or below the
light will illuminate indicating that the manifold heater
is ON. When the light extinguish the engine is ready
to start.
6 Water in Fuel Indicator
Audible/Visual. Lights up when there is water in the
fuel system. Drain the water separator and engine
filter.
7 Direction Indicators
Visual Only. Flashes with the left and right direction
indicators. Use the direction indicators to signal
before turning the machine.
8 Main Beam On
Visual Only. Lights when the headlight main beams
are switched on. Switch the main beam off for
oncoming vehicles.
9 Park Brake Engaged
Audible/Visual. Lights if Forward or Reverse drive is
selected while the park brake is engaged.
10 No Charge
Audible/Visual. Lights if the battery charging circuit
fails while the engine is running. The light should go
out a few seconds after the engine is started.
To Next Page
