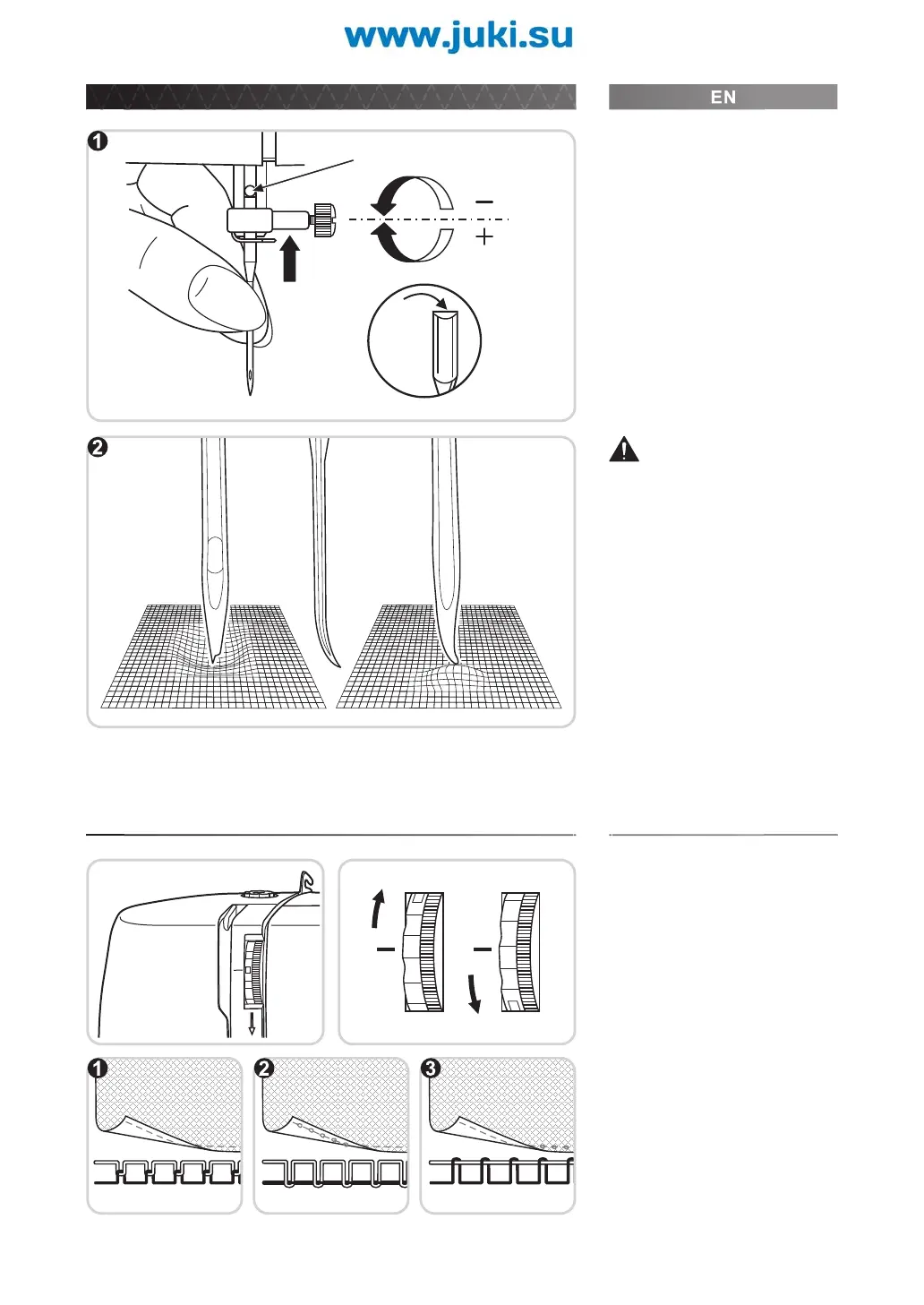

Inserting the needle
Change the needle regularly,
especially if it is showing signs
of wear and causing problems.
Insert the needle as illustrated
as follows:
C/D. Insert the needle as far up
as it will go.
Turn power switch to ("O")
before inserting or removing the
needle.
Needles must be in perfect
condition. (2)
Problems can occur with:
Damaged points
Blunt needles
A. Loosen the needle clamp
screw and tighten again after
inserting the new needle. (1)
B. The flat side of the shaft
should be towards the back.
A. Bent needles
B.
C.
Attention:
AB
C
A
B
C
D
Upper thread tension
Basic thread tension setting: "4".
To increase the tension, turn
the dial to the next number up.
To reduce the tension, turn the
dial to the next number down.
1. Normal thread tension
2. Thread tension too loose
3. Thread tension too tight
Thread tension
4
3
5
2
4
3
4
5
6
40
