94
5) Put mirror SW 2 in installing base 6 and fix it with setscrew 1.
(Put mirror SW 2 in installing base 6 so that the installing base 8 is inserted in the mirror SW 2.)
(Note) Freely adjust the height of the respective switches.

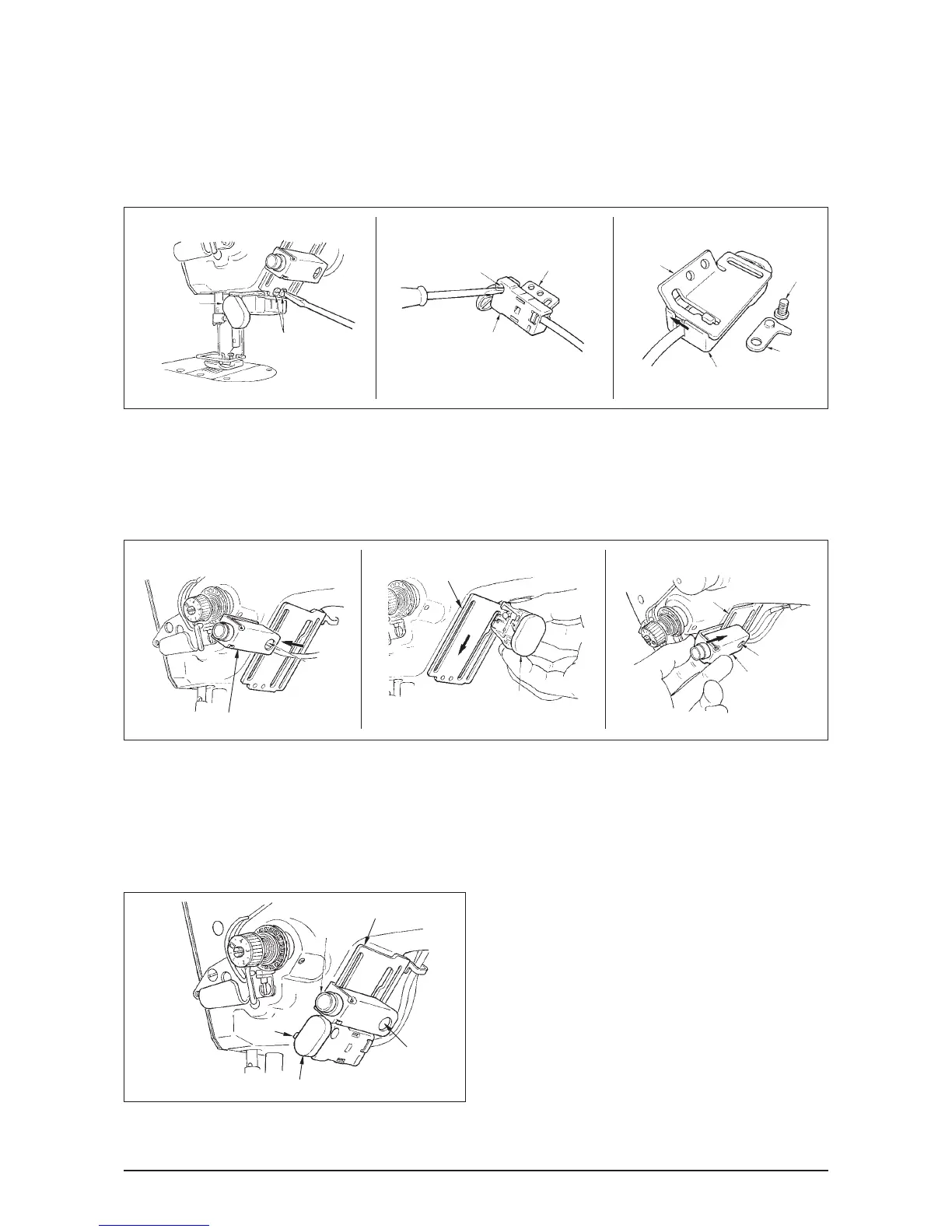

1) Loosen two setscrews 7 and remove reverse feed switch 4.
2) Loosen setscrew 3 and remove reverse feed switch 4 from installing base 8.
3) Slide reverse feed switch 4 from installing base 8 to remove it.
(Move the click of the reverse feed switch from the groove of the installing base. Guide 5 is used when
installing the switch.)
7
4
3
8
4
8
4
5
3
1
2
6
4
6
2
1
B. In case of the machine with the auxiliary thread take-up lever
When reverse feed switch 4 is low according to the process, adjust the height.
4) Slightly loosen setscrew 3, move upward reverse feed switch 4 and guide 5, and fix the switch with
guide 5 and setscrew 3.
5) Put the click of reverse feed switch 4 in the groove of installing base 6.
6) Fix reverse feed switch 4 with guide 5 and setscrew 3.
7) Put mirror SW 2 in installing base 6 and fix it with setscrew 1.
(Put mirror SW 2 in installing base 6 so that the installing base 8 is inserted in the mirror SW 2.)
* The position of reverse feed switch 4 and mirror
switch 2 can be reversed.
When changing the position of the switch in case of
“A. In case of the machine with the auxiliary thread
take-up lever”, refer to the items 3) through 5).
(Note) Freely adjust the height of the respective
switches.
5
2
4
1)
2) 3)
4) 5 , 6)
7)
6
1
