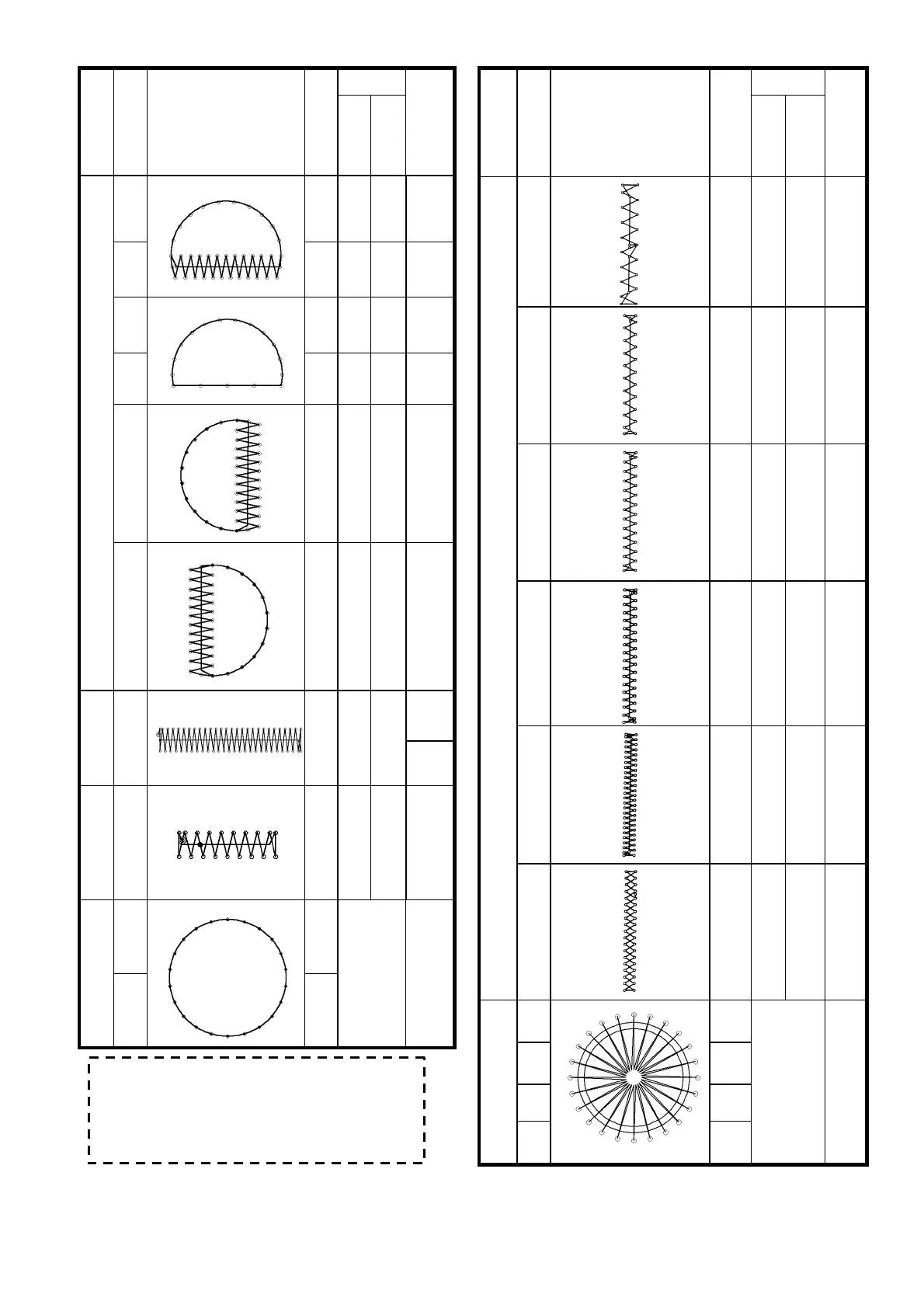

19
Sewing
size (mm)
No.
Stitch diagram
Number of stitches
Lengthwise
Crosswise
(Note 2) No. of
presser
31 52
7
10
13
32
63 7
12
13
33 24
6
10
13
34
31 6
12
13
35
48 10
7
14
Semilunar bar-tacking
36
48 10
7
14
6
Large bar-
tacking
37
90 3
24
7
Knit goods bar-
tacking
38
28 2
8
5
39 28
Round bar-tacking
40
48
Φ
12 16
Sewing
size (mm)
No.
Stitch diagram
Number of stitches
Lengthwise
Crosswise
(Note 2) No. of
presser
41
29 20
2.
5
12
42
39 25
2.
5
12
43
45 25
2.
5
12
44
58 30
2.
5
12
45
75 30
2.
5
12
Lengthwise bar-tacking
46
42 30
2.
5
12
47
91
48
99
49
148
Radial tacking
50
164
Φ
8 15
Caution
Pattern Nos. 41 to 46 are for the optional work clamp
foot No. 12. They are different from the lengthwise
bar tacking pattern Nos. 23 to 26 in the origin by 5
mm up and down.
19
21
Table of Contents
Table of Contents
2
Name of each Section of the Operation Panel
5
Body
5
Buttons to be Used in Common
7
Basic Operation of Ip-410
8
Lcd Display Section at the Time of Sewing Shape Selection
10
Sewing Shape Data Input Screen
10
Sewing Screen
13
Performing Sewing Shape Selection
16
Sewing Shape List
19
Lk1900A／Lk1901A／Lk1902A
19
Lk1903A
21
Performing Item Data Change
22
Checking Pattern Shape
24
Changing Thread Tension Command at Every Needle Entry Point
26
Adding or Changing Thread Tension Command at Every Needle Entry Point
26
Deleting Thread Tension Command at Every Needle Entry Point
28
Performing Release of Grease-Up Error
30
Using Temporary Stop
31
To Continue Performing Sewing from some Point in Sewing
32
To Perform Re-Sewing from the Start
33
Winding Bobbin Thread
34
Using Counter
35
Setting Procedure of the Counter
35
Count-Up Releasing Procedure
38
How to Change the Counter Value During Sewing
39
Performing New Register of Users' Pattern
40
Performing New Register of Pattern Button
41
Lcd Display Section at the Time of Pattern Button Selection
43
Pattern Button Data Input Screen
43
Sewing Screen
46
PERFORMING PATTERN BUTTON No. SELECTION
49
Selection from the Data Input Screen
49
Selection by Means of the Shortcut Button
51
Changing Contents of Pattern Button
52
Naming Pattern
55
Copying Pattern Button
56
Changing Sewing Mode
58
Lcd Display Section at the Time of Combination Sewing
59
Pattern Input Screen
59
Sewing Screen
61
Performing Combination Sewing
64
How to Create Combination Data
64
Selection of Combination Data
65
How to Delete Combination Data
67
How to Delete Combination Data Step
68
Changing Memory Switch Data
69
How to Change Memory Switch Data
69
Level 1
69
Level 2
71
Memory Switch Data List
72
Level 1
72
Level 2
79
Error Code List
82
Message List
91
Using Communication Function
94
Handling Possible Data
94
Performing Communication by Using the Media
96
Performing Communication by Using Rs-232C
99
Take-In of the Data
100
Taking in Plural Data Together
102
Information Function
105
Observing the Maintenance Inspection Information
106
Inputting the Inspection Time
109
Releasing Procedure of the Warning
111
Observing the Production Control Information
112
When Displaying from the Information Screen
112
When Displaying from the Sewing Screen
114
Performing Setting of the Production Control Information
115
Observing the Working Measurement Information
119
Trial Sewing Function
123
Performing Trial Sewing
123
Thread Tension Value Display Color List
126
Setting Approval/Disapproval of Calling of Pattern Data
127
Performing Adjustment of Origin of Presser
128
Performing Key Lock
129
Displaying Version Information
131
Using Check Program
133
To Display the Check Program Screen
133
Performing Compensation of Touch Panel
135
Performing Lcd Check
138
Performing Sensor Check
139
Number of Rotations of Main Motor Check
141
Performing Output Check
142
Performing X/Y Motors/Origin Sensors Check
143
Performing Presser/Thread Trimmer Motor/Origin Sensor Check
144
Performing Thread Clamp Motor/Origin Sensor Check
145
Communication Screen of Maintenance Personnel Level
146
Data Which Are Possible to be Handled
146
Displaying Maintenance Personnel Level
147
Performing Rewriting of Program
148
Information Screen of the Maintenance Personnel Level
150
Display of Error Record
150
Display of the Cumulative Working Information
152
