– 50 –
When using the AE device, the optional IO p.c.b. is
necessary.

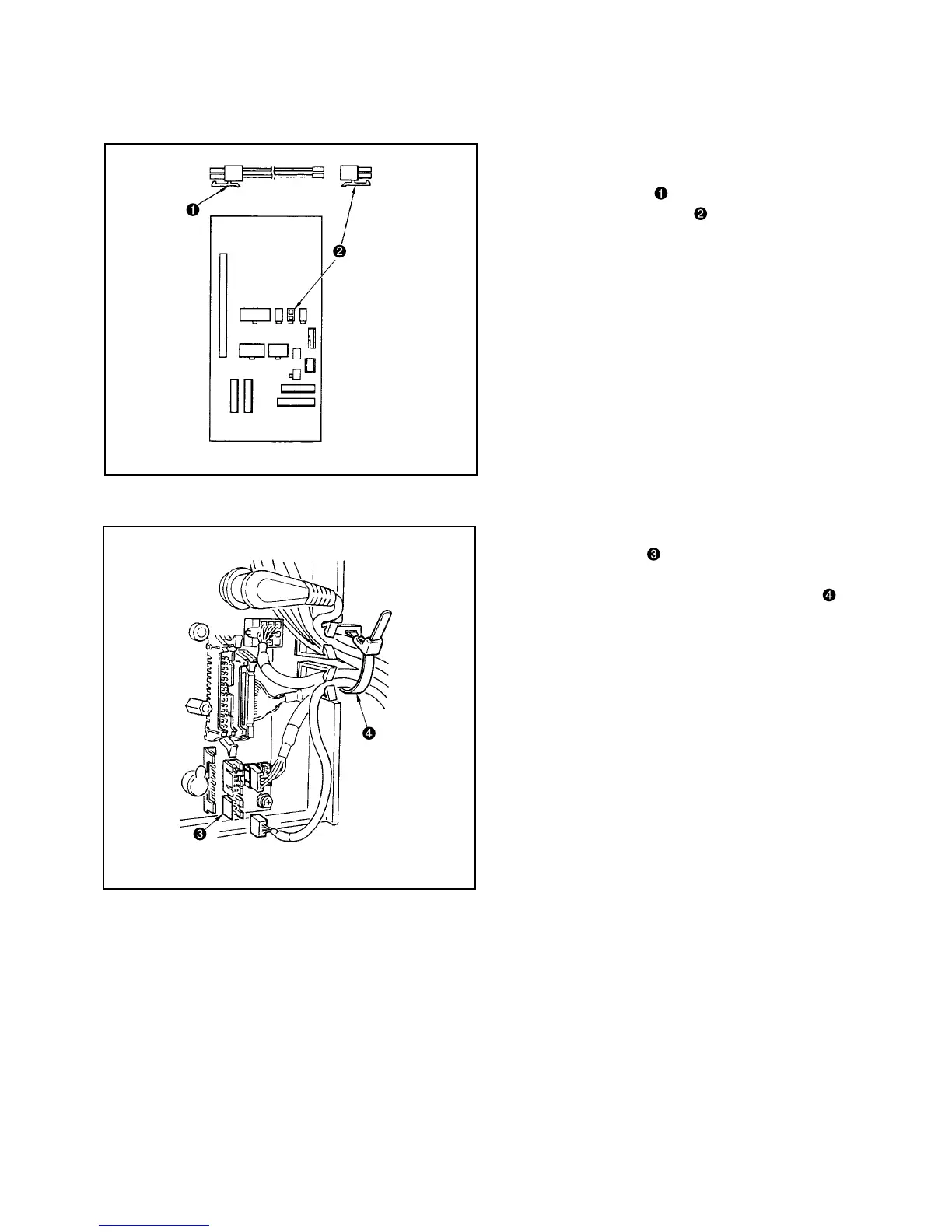

Connect solenoid cord attached to the side of the
AE device to 2P plug (red) attached to the IO
p.c.b.
for use.
(Caution)
Even when connecting to 14P plug from the
machine head, the device does not work. So,
be careful.
7. CONNECTING PROCEDURE OF JUKIOPTIONAL DEVICE
(1) Connection of the bobbin thread remaining amount detection device, AE
1) Connect the connector of material end sensor
(ED) to connector (CN45 : 6P) of SC-910.
2) Tighten the cord of the material end sensor to-
gether with other cords with cable clip band
attached to the side of the box after passing it
through the cable clamp.
(Caution)
1. Be sure to turn OFF the power before con-
necting the connector.
2. For the use of the material end sensor, re-
fer to the Instruction Manual attached to
the material end sensor.
(2) Connection of the material end sensor (ED)
To Next Page
