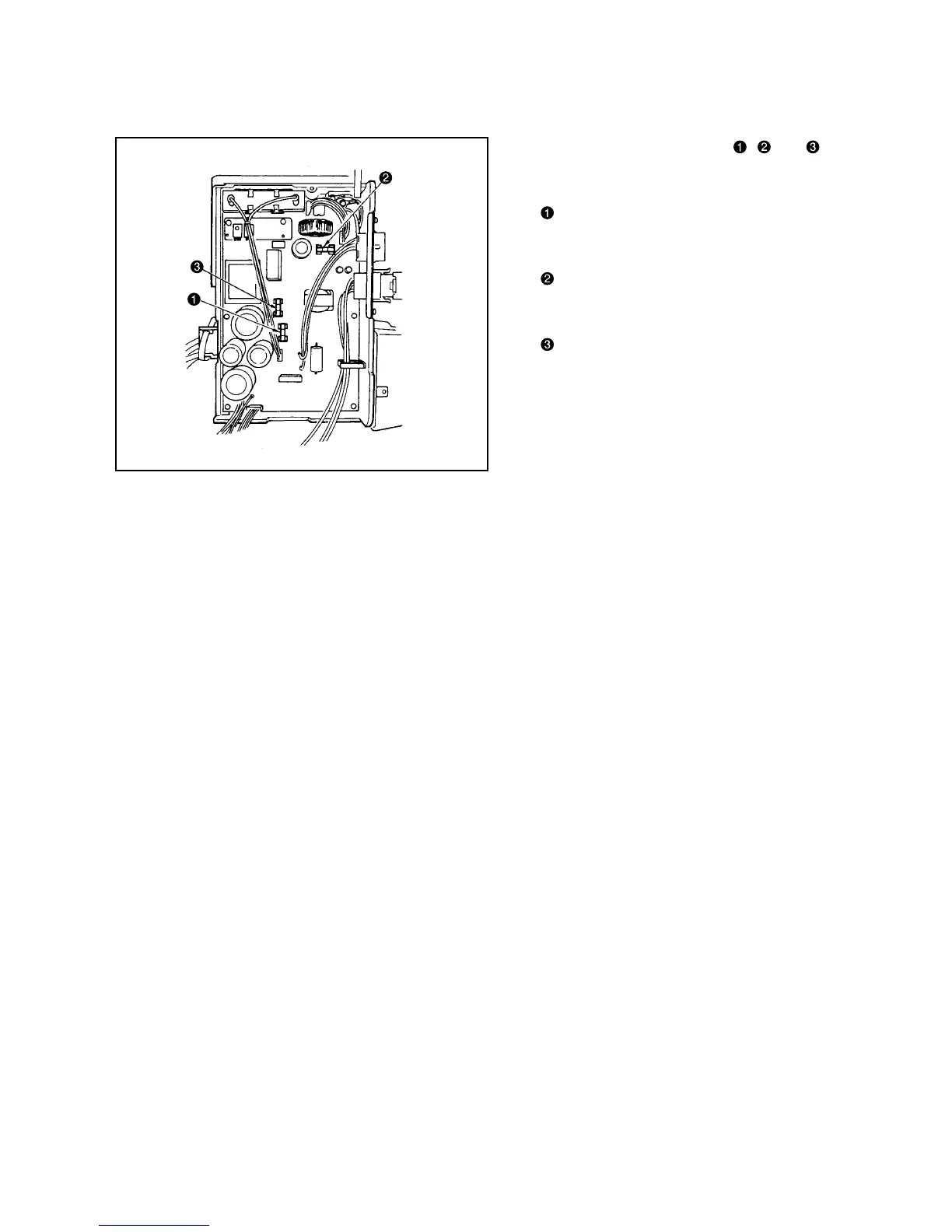

– 57 –
13.
MAINTENANCE
(1)
Replacing the fuse
1)
Grasp the glass part of fuses
,
and
and
re move them.
2)
Use the fuse of which capacity is specified.
: 2A/250V
time-lag fuse
(regenerative resistance protection fuse)
Part No. KF000000040
: 6.3A/250V time-lag fuse
(solenoid power fuse)
Part No. KF000000030
: 3.15A/250V time-lag fuse
(Power circuit protective fuses)
Part No. KF000000080
60
62
Table of Contents
Default Chapter
3
Table of Contents
3
Specification
5
Outline
5
Features
5
Configuration
6
Ddl-9000/Sc-910
6
Ddl-8700/Sc-910/M91
7
Explanation of Control Panel
8
List of Control Panels of CP-160 and IP-100
8
Explanation of Control Panel CP-160
10
Example of Application
11
Explanation of Control Panel IP-100
14
Information
14
Matters that Demand Special Attention Regarding the Operation Panel, IP-100
23
Error Display
24
Error Code List (Error Display in Panel)
25
Warning List
27
Control Box (Sc-910/Sc-910A)
28
Connecting the Cords
28
Setting for Functions
29
Function Setting List
31
Detailed Explanation of Selection of Functions
38
Changing Procedure of the Pedal Type
52
Parts Necessary for Change
52
Attaching Parts
52
Adjusting Pedal Depressing Pressure
52
Change-Over Procedure of the Jumper
53
Automatic Compensation of Neutral Point of the Pedal Sensor
53
Connecting Procedure of Jukioptional Device
54
Connection of the Bobbin Thread Remaining Amount Detection Device, AE
54
Connection of the Material End Sensor (ED)
54
Connection of the Pedal of Standing-Work Machine (PK)
55
Setting of the Auto Lifter Function
55
External Input / Output Connector
56
Initialization of the Setting Data
57
Connector Connection Diagram
58
Solenoid for Machine Head
58
Solenoid for Lifting Presser Foot
58
Optional Cord
59
Relay Cord a Asm. for the Standing Sewing Machine (Part No. M9701351AA0)
59
Relay Cord a Asm. for DC24V (Part No. M9703351AA0)
60
Maintenance
61
Replacing the Fuse
61
Power Voltage Changeover Procedure
62
Expansibility
63
Regarding Error Display (Sc-910/Sc-910A)
64
Error Code List (SC-910/SC-910A)
66
Block Diagram
67
SC-910/SC-910A Block Diagram
67
IP-100 Operation Panel Block Diagram
68
Drawing of Table
69
For DDL-8700
69
For DDL-9000
70
