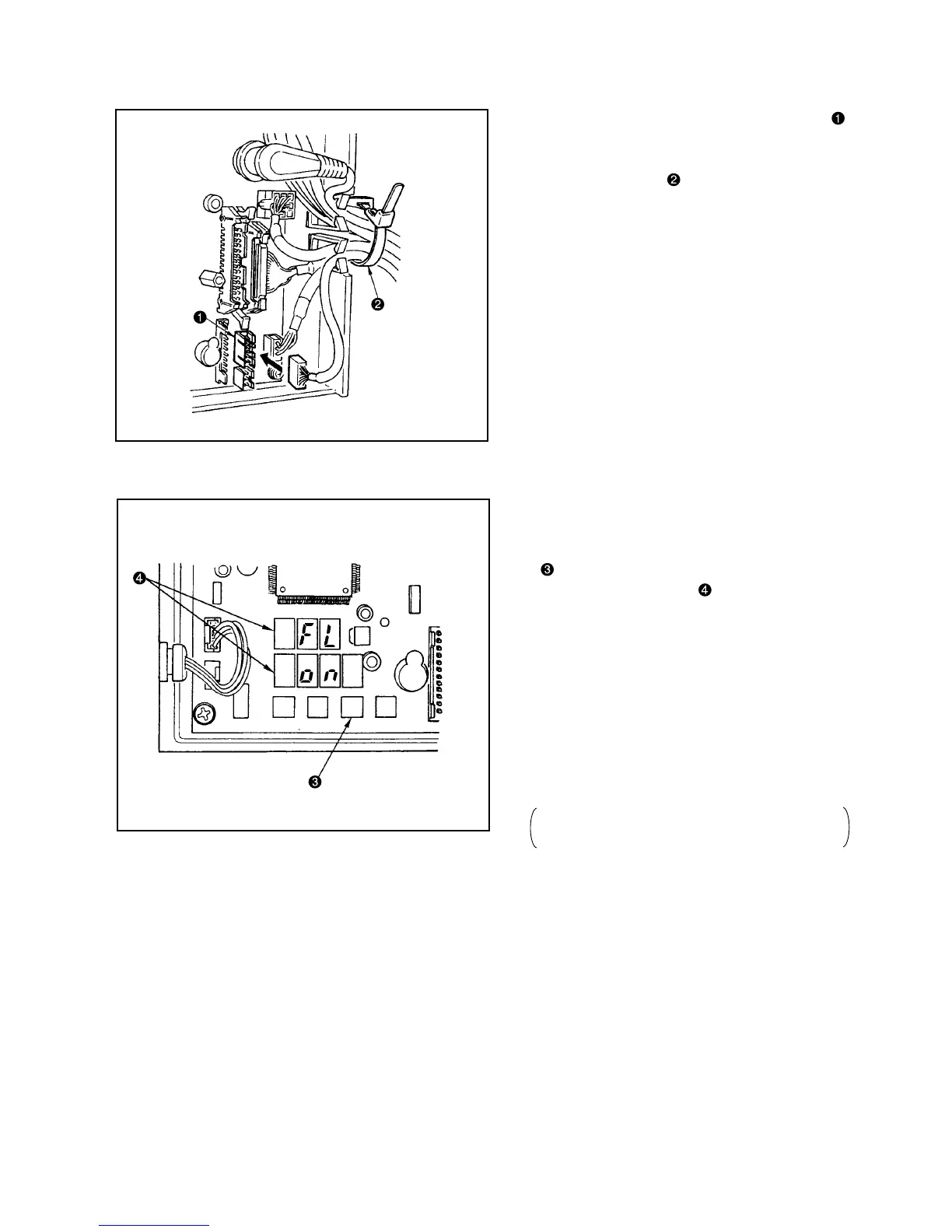

1) Connect the connector of PK70 to connector
(CN32 : 12P) of SC-910.
2) Tighten the cord of PK70 together with other cords
with cable clip band attached to the side of the
box after passing it through the cable clamp.
(Caution) Be sure to turn OFF the power before
connecting the connector.
(3) Connection of the pedal of standing-work machine (PK)
When the auto-lifter device (AK) is attached, this func-
tion makes the function of auto-lifter work.
1) Turn ON the power switch while pressing switch
inside the control box.
2) LED display is turned to (FL ON) with “beep”,
and the function of auto-lifter becomes effective.
3) Turn OFF the power switch and turn ON the power
switch after closing the front cover. The machine
returns to the normal motion.
4) Repeat the operation 1) to 3), and LED display is
turned to (FL OFF). Then, the function of auto-
lifter does not work.
FL ON : Auto-lifter device becomes effective.
FL OFF : Auto-lifter function does not work.
(Standard at the time of delivery)
Similarly, the presser foot is not automatically
lifted when programmed stitching is completed.
8. SETTING OF THE AUTO LIFTER FUNCTION
(Caution) 1. To perform re-turning ON of the power, be sure to perform after the time of one second or more
has passed.
(If ON / OFF operation of the power is performed quickly, setting may be not changed over
well.)
2. Auto-lifter is not actuated unless this function is properly selected.
3. When “FL ON” is selected without installing the auto-lifter device, starting is momentarily
delayed at the start of sewing. In addition, be sure to select “FL OFF” when the auto-lifter is
not installed since the touch-back switch may not work.
To Next Page
