Installation
Continued on the next page...
[1]
USB maximum power supply current :
DC 5 V = 1.0 A
[2]
Sold separately
[3]
Optional accessory

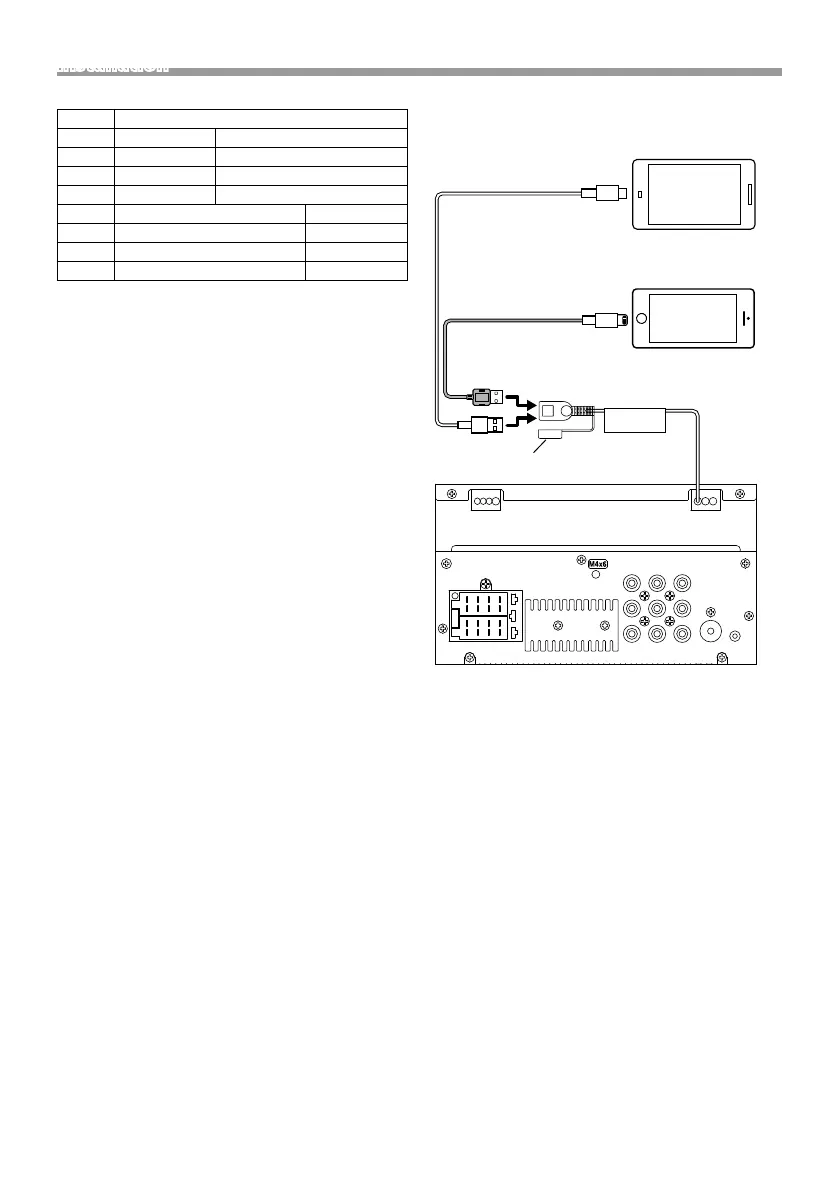

Ñ Connecting an iPod/iPhone/Android
ANT
CAM IN VIDEO OUT VIDEO IN
AV IN
L
R
FRONT OUTREAR OUT
M4x6
DAB
5V
=
1.0A
USB cable
[2]
Android smartphone
[2]
Cap
USB terminal
[1]
(0.8 m)
Not used
KCA-iP103 (0.8m)
[3]
iPod/iPhone
[2]
Lightning connector
Ñ Wiring harness connector function guide
Pin Color and function
A-4 Yellow Battery
A-5 Blue/White
[1]
Power Control
A-7 Red Ignition (ACC)
A-8 Black Earth (Ground) Connection
B-1/ B-2 Purple (+) / Purple/Black (–) Rear Right
B-3/ B-4 Gray (+) / Gray/Black (–) Front Right
B-5/ B-6 White (+) / White/Black (–) Front Left
B-7/ B-8 Green (+) /
Green/Black (–) Rear Left
[1]
Max. 150mA, 12V
• Speaker Impedance: 4-8 Ω
! CAUTION
Before you connect the commercially available
ISO connectors to the unit, check the following
condition:
• Make sure that the pin assignment of the connector
matches with the KENWOOD unit.
• Take extra notice of the power wire.
• In case battery wire and ignition wire are not
corresponding then change them accordingly.
• In case the car does not have an ignition wire, use a
commercially available interface.
