JVC DMX125DAB User Manual

21
English |

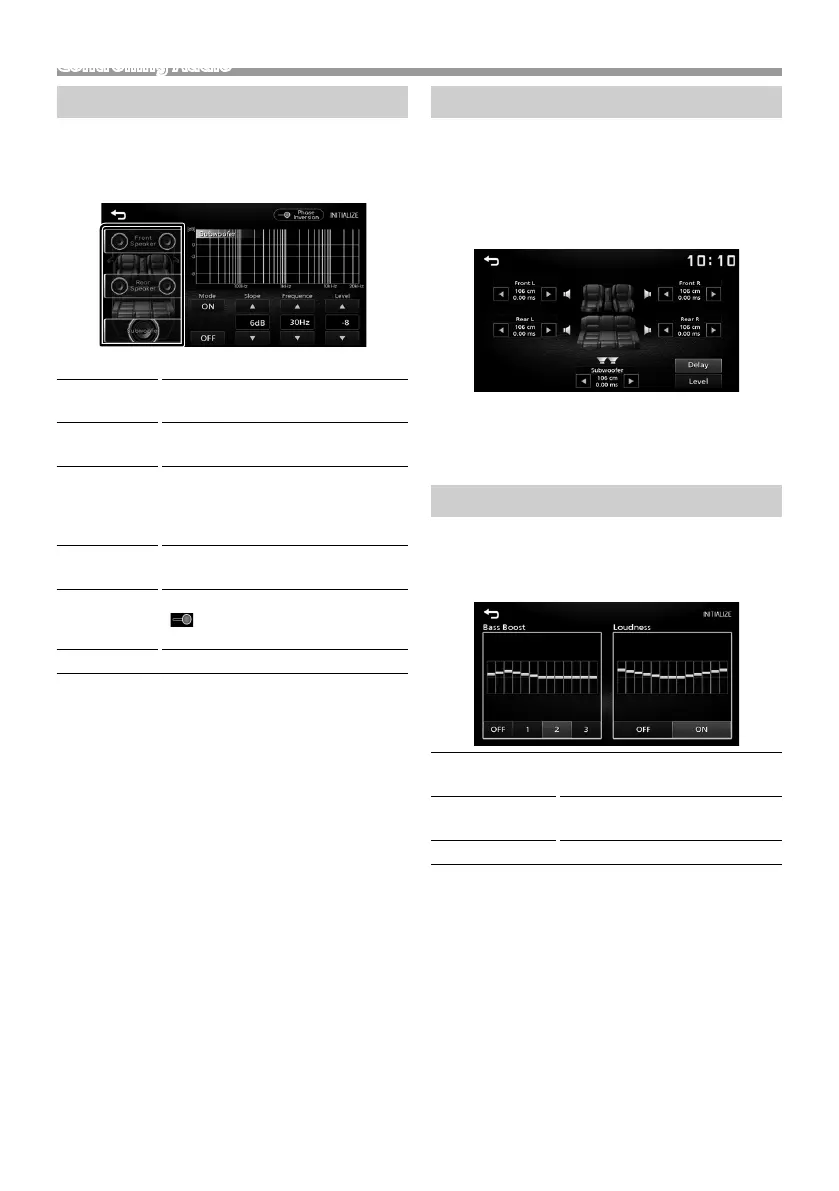

Controlling Audio
Continued on the next page...
Speaker / X’Over setup
1 Press the <AUD> button.
2 Touch [Speaker / X’Over].
3 Touch the speaker to set up.
4 Set each item as follows.
Mode
[OFF], [ON]
[ON] : Filter adjustment.
[OFF] : Turns off the filter.
Slope
[R] [S]
Set a crossover slope.
Frequence
[R] [S]
• High Pass Filter adjustment. (When
Front or Rear is selected)
• Low Pass Filter adjustment. (When
Subwoofer is selected)
Level
[R] [S]
Adjust the gain of the front speaker,
rear speaker, or subwoofer.
Phase
Inversion
Set the phase of subwoofer output.
[
] to shift the phase 180 degrees.
(When Subwoofer is selected)
[INITIALIZE]
To clear the adjustment.
Listening Position / DTA
1 Press the <AUD> button.
2 Touch [Position / DTA].
3 Touch [Delay].
4 Touch [T] or [U] to adjust the delay time of the
selected speaker.
5 Touch [Level].
6 Touch [T] or [U] to adjust the sound level of the
selected speaker.
Sound Eect
1 Press the <AUD> button.
2 Touch [Sound Effect].
3 Set each item as follows.
Bass Boost
[OFF], [1], [2], [3]
Set the amount of bass boost
Loudness
[OFF], [ON]
Set the amount of boost of low
and high tones.
[INITIALIZE]
To clear the adjustment.
19DMX_E_Ref_1En.indd 21 2019/07/23 21:04

JVC DMX125DAB Specifications

General

Resolution	800 x 480 pixels
DAB Radio	Yes
DAB+	Yes
Radio	FM/AM
Bluetooth	Yes
USB Port	Yes
Touch Panel	Yes
Apple CarPlay	Yes
Android Auto	Yes
Rear View Camera Input	Yes
Steering Wheel Control Ready	Yes
Steering Wheel Control	Yes
AUX Input	Yes
Compatible Formats	MP3, WMA, AAC, FLAC, WAV
Display Size	6.8 inch
Audio Output Power	50W x 4
Maximum Power Output	50W x 4
