# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
1 LY32567-021A PACKING CASE
2 LY32568-001A CUSHION
3 LY30023-008A POLY BAG
4 QPA02003506 POLY BAG
! 5 LYT0909-002A INST.BOOK(GE)
! LYT0909-003A INST.BOOK(FR)
! LYT0909-004A INST.BOOK(DU)
! LYT0909-005A INST.BOOK(SP)
! LYT0909-006A INST.BOOK(IT)
6 LYT0912-002A INST.BOOK(SOFT.GE)
LYT0912-003A INST.BOOK(SOFT.FR)
LYT0912-004A INST.BOOK(SOFT.DU)
LYT0912-005A INST.BOOK(SOFT.SP)
LYT0912-006A INST.BOOK(SOFT.IT)
7 LYT0934-001A SHEET(AGREMENT)
8 LYT0889-010A SHEET(E.UE)
15 QPA01703005 POLY BAG
16 QAM0212-001 CABLE ASSY,AUDIO/VIDEO CABLE
17 QQR0918-002 CORE FILTER
18 PEAC0428-150 CABLE ASSY,EDITING CABLE
19 QQR0491-002 CORE FILTER
20 QAM0324-001 USB CABLE
21 QQR0491-002 CORE FILTER
! 24 LY20847-001C AC ADAPTER,AP-V12EG
25 QQR0917-002 CORE FILTER
! 26 QMPL120-190-JR POWER CORD
! 30 LY32566-001A BATTERY PACK ASSY,BN-V408U
31 LY20186-001A SHOULDER STRAP
32 LY20750-001A REMOTE CONTROL UNIT,RM-V717U
33 – BATTERY,AAA(R03),X2
34 LY32210-023A CD ROM ASSY
36 LY43294-002A CAP(HOOD)ASSY
37 QAM0342-002 MEMORY CARD,8MB(SD)
38 BT-54013-2 WARRANTY CARD
39 QAM0302-001 ADAPTOR PLUG
40 QQR0919-002 CORE FILTER
41 QQR0491-002 CORE FILTER

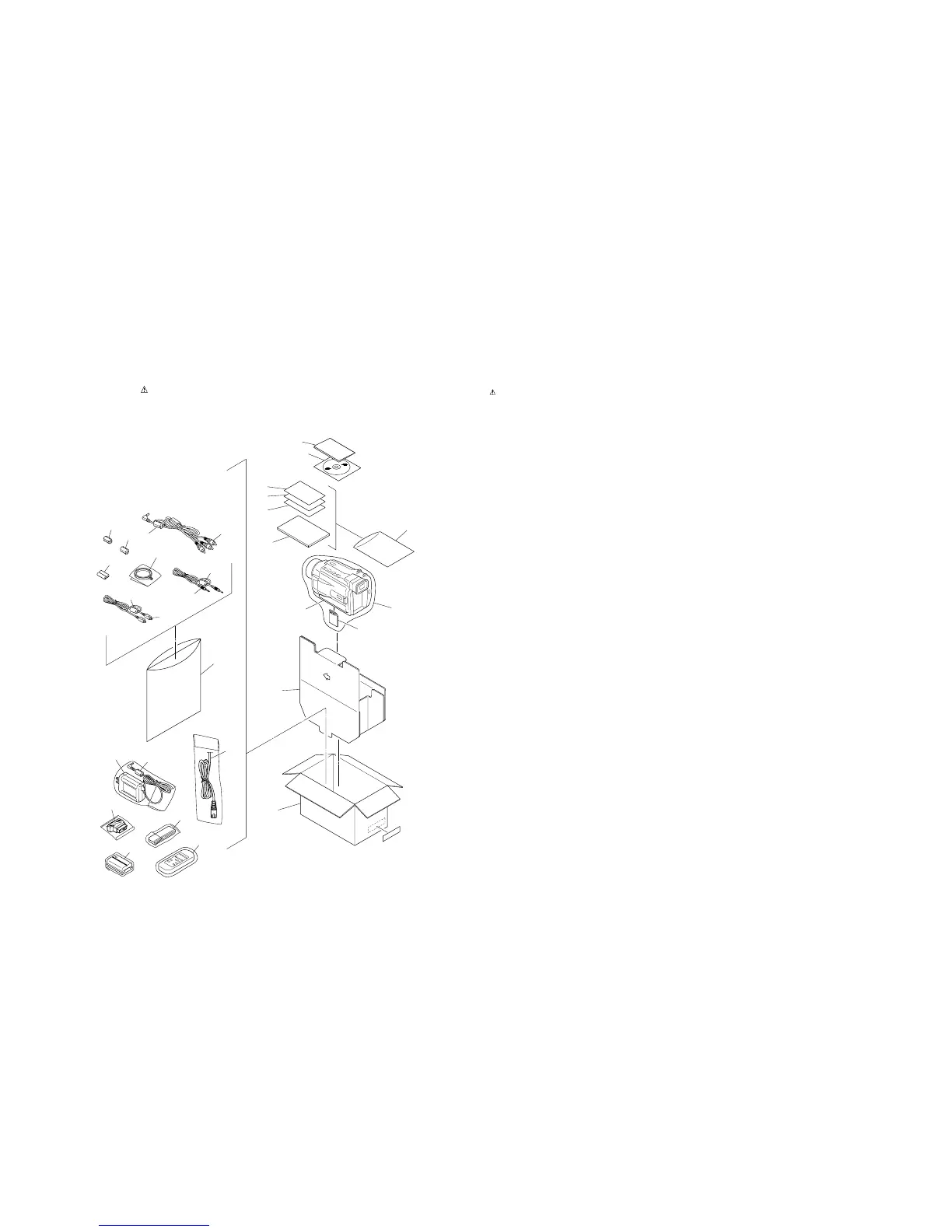

5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
5-1 5-2
1
LABEL
(SERIAL)
7
8
6
4
15
5
2
31
34
33
18
30
32
19
21
20
25
24
36
38
3
37
FINAL ASSY
<M2>
40
41
17
16
39
26
• INSTRUCTIONS
GE ...... GERMANY
FR ....... FRENCH
DU ...... DUTCH
SP ....... SPANISH
IT ........ ITALIAN
