IMPORTANT! PREPARE USE
SETTINGS
TROUBLE?
AERIAL

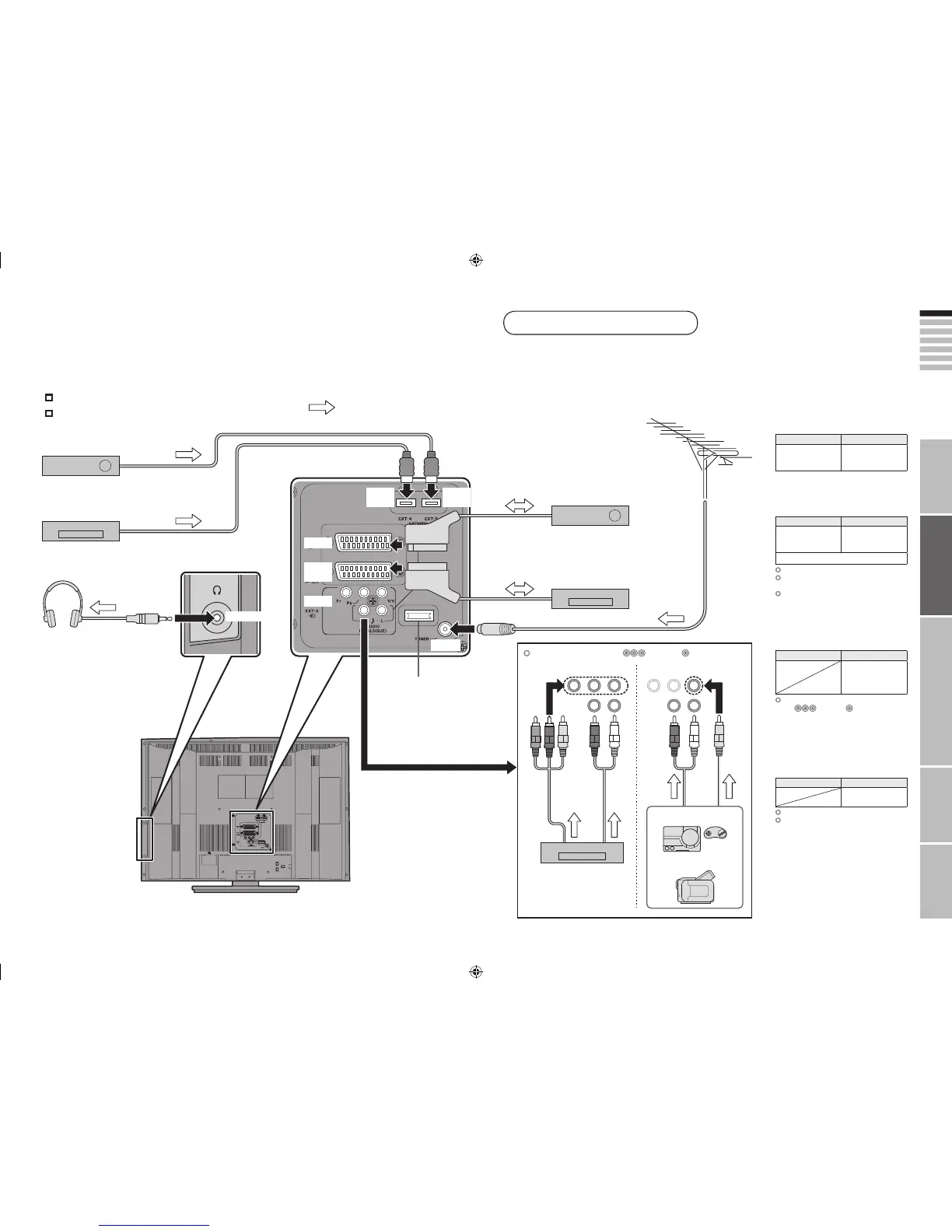

Connecting external devices
You can connect many different devices to the rear panel of the TV.
Please read the user manuals of each device before setting up.
(Connecting cables are not supplied with this TV.)
VCR / DVD recorder
(“T-V LINK” compatible)
Headphone
Headphone
VCR / DVD / other devices
EXT-1
EXT-2
(T-V LINK)
 Connect “DVI” devices  (P. 32)
 “T-V LINK”  (P. 9)
EXT-1
Watching videos
Output  Input 
· Composite signal
· Sound L / R
· Composite signal /
RGB
· Sound L / R
EXT-2
Dubbing videos
Using “T-V LINK”
Output  Input 
· Composite signal
· Sound L / R
· Composite signal /
RGB / S-VIDEO
· Sound L / R
· T-V LINK
 Use S-VIDEO  “S-IN” (P. 22)
 Select dubbing sources
 “DUBBING” (P. 22)
 Connect a decoder
 “DECODER (EXT-2)” (P. 26)
EXT-3
Watching DVDs
Output  Input 
· Composite signal
/ Component
signal (P. 34)
· Sound L / R
 Switch input signal
 “ Pr/Pb/Y, V” (P. 22)
EXT-4
EXT-5
Connecting
HDMI devices
Output  Input 
· HDMI signal
(P. 34)
 “HDMI SETTING”  (P. 26)
 EXT-5 input does not support
analogue sound.
EXT-3
Satellite broadcast /
Digital broadcast tuner
Satellite broadcast / Digital
broadcast tuner
DVD player
(HDMI compatible)
(HDMI compatible)
EXT-5
(HDMI 2)
EXT-4
(HDMI 1)
DVD player
 Switch input signal  “ Pr/Pb/Y, V” (P.22)
: signal direction
Not available.
(For service adjustments)
(Component signal) (Composite signal)
Game consoles
Video camera
