Using the Cassette Deck
(Listening to a Tape)
DISC
DISC
DISC
REPEAT
RANDOM
CONTINUE
MULTI CONTROL
7 STOP
TAPE ™£
When TAPE is selected
as the source, the button
lights up.
REVERSE MODE
DECK A/B
0 Eject (Deck B)
0 Eject (Deck A)
1
23
456
7
8
9
ACTIVE
BASS EX.
REC PAUSE
10
10
FM/AM
A
B
DISC
FM MODE
PLAY MODE
7 /CLEAR £/8
DISC
DISC
VOLUME
SHIFT
SOUND
MODE
SLEEP
POWER
RM-SED40TEU
REMOTE CONTROL
AUX
C D
DECK
CLOCK TIMER
SET
– SELECT +
Cassette Deck
control buttons
kHz
MHz
CONT.
ALL PRGM
REC
A.BASS EX S.MODE
SLEEP MONOSTCLOCK
RANDOM

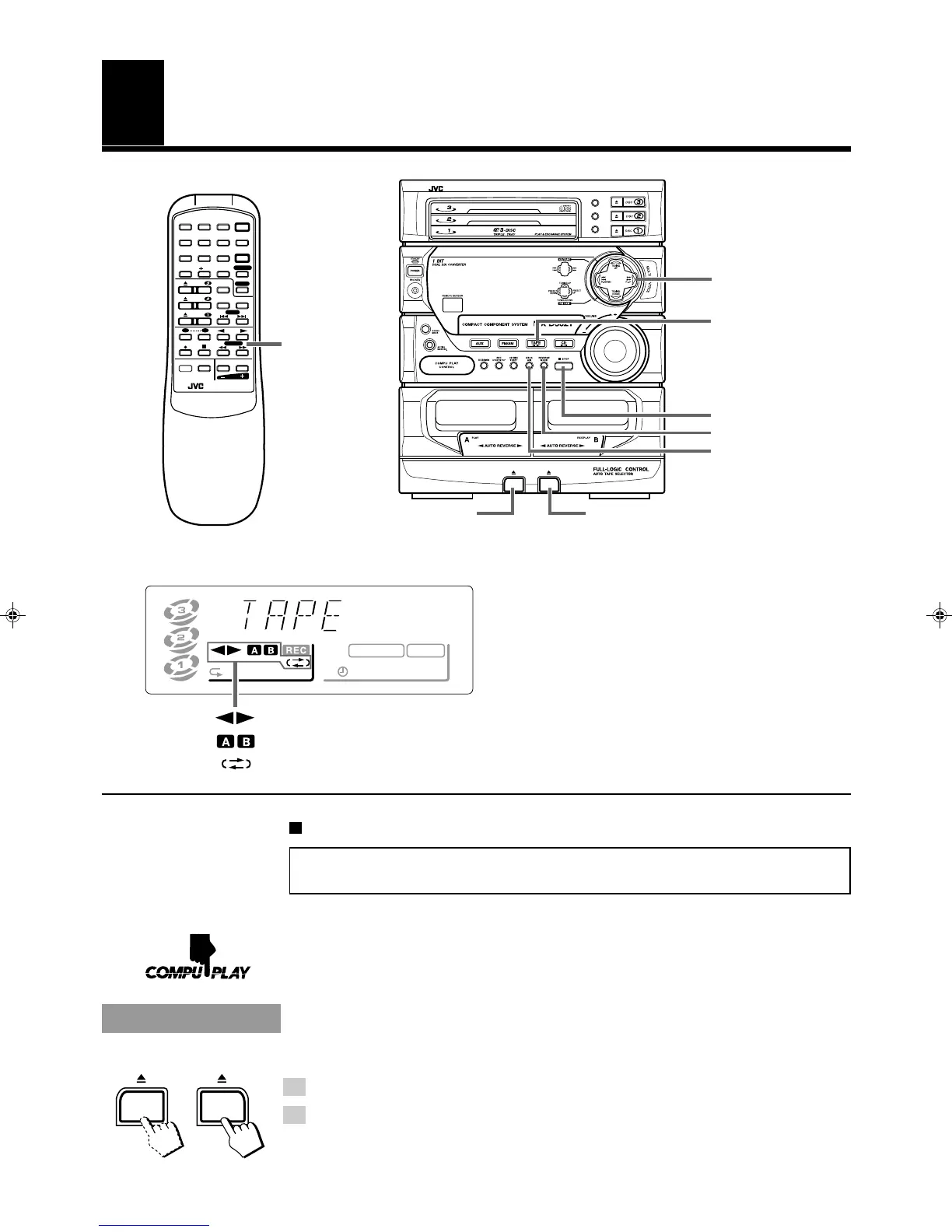

Display
: Tape Direction indicator
: DECK A, B indicator
: Reverse Mode indicator
When the System is being used, the display shows other items as well.
However, we have only shown the items described in this section.
Tape Direction Indicator on the Display
The Tape Direction indicator tells you which direction the selected
tape deck will use for playback.
During playback, the direction indicator blinks slowly.
During fast left or fast right, the indicator blinks quickly.
During Music Scan mode, the direction indicator alternates between
blinking slowly and quickly repeatedly.
The Cassette Deck allows you to play, record and dub audio tapes.
o With Automatic Tape Detection, you can listen to Type I or II tapes without changing any settings.
The use of tapes longer than 120 minutes is not recommended, since characteristic deterioration may
occur and these tapes easily jam in the pinch-rollers and the capstans.
One Touch Play ——————————————————————
By pressing the TAPE ™£ button (or the ™ or £ button on the Remote Control), the Unit will turn
on, “TAPE” appears on the display, and if a tape is in the deck, it will start to play. If no tape is loaded, the
Unit will turn on and wait for you to insert a tape, or select another function.
Regular Play
When the power is already on, you can use this basic procedure:
1. Press the 0 button for the deck you want to use.
2. When the cassette holder opens, put a cassette in, with the ex-
posed part of the tape down, toward the base of the System.
• If the cassette holder does not open, turn the power off, then back on and press the 0 button again.
EN.MX-D302T[J]/f 98.1.13, 5:06 PM18

JVC MX-D302T Specifications

Amplifier Section

output power	55 watts per channel
input sensitivity	300 mV
input impedance	50 kohms

Cassette Deck Section

frequency response Type II	50 - 14, 000 Hz
frequency response Type I	50 - 14, 000 Hz
wow and flutter	0.15% (WRMS)

CD Automatic Changer Section

cd capacity	3 discs
dynamic range	85 dB
signal-to-noise ratio	90 dB

Tuner Section

fm tuning range	87.5 - 108.0 MHz
am tuning range	530 - 1, 710 kHz
dimensions	265 × 315 × 340 mm

Speaker Specifications

tweeter size	5 cm
woofer size	12 cm
power handling capacity	60 W

Power Specifications

power requirements	AC 120 V, 60 Hz
power consumption	95 watts
standby power consumption	9 watts

Weight and Dimensions

dimensions	265 × 315 × 340 mm
mass	7.2 kg
speaker dimensions	215 × 315 × 230 mm
