JVC MX-J100 Service Manual

MX-J100
1-12
Turn the black loading pulley gear marked c on the
under side of the CD changer unit in the direction of
the arrow and draw the CD tray toward the front until
it stops.
Disconnect the card wire from connector SCW5 of
the CD servo board on the upper side of the CD
changer unit.
Push down the two tray stoppers marked i and pull
out the CD tray.
1.
2.
3.
Align the gear-cam with the gear-tray as shown
fig.29, then mount the CD tray.
When assembling the CD tray, take extreme care not
engage with gear - synchro.
1.
2.
Prior to performing the following procedure, remove
the CD changer unit.

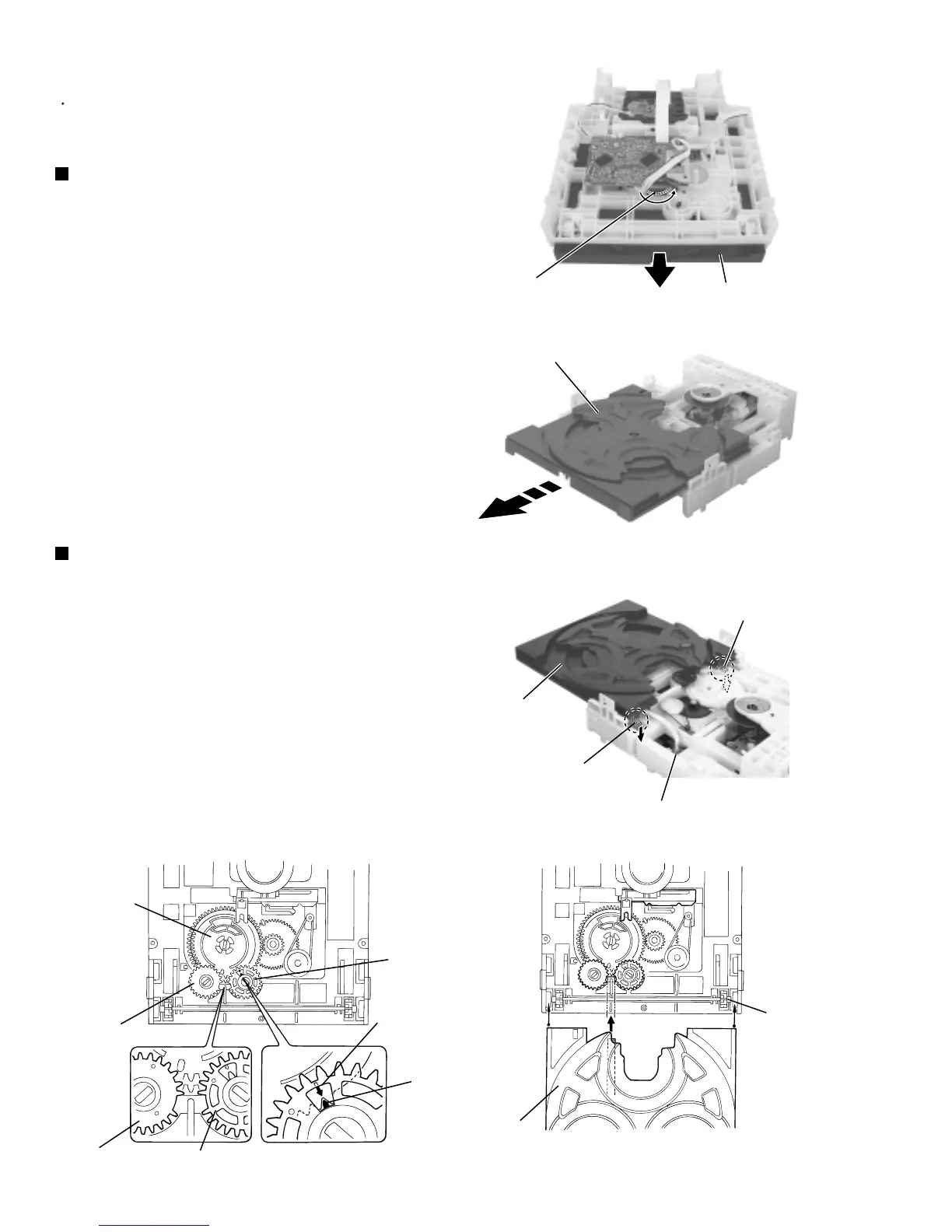

Removing the CD tray (See Fig.26 to 28)
Reinstall the CD tray (See Fig.29 to 30)
<CD changer unit>
Fig.27
Fig.26
Fig.28
Fig.29 Fig.30
Loading pulley gear marked c
CD tray
CD tray
CD tray
Gear-convert
Gear-convert
Gear-cam
Gear-tray
Gear-synchro
Gear-tray
Gear-tray
Gear-cam
timing point
CD tray
CD servo board
SCW5
Tray stopper marked i
Tray stopper marked i
