<Cassette mechanism section>
• Removing the record/playback mechanism.
Removing the R/P head.
1. Remove the screw A on the right side of the
R/P head.(Fig.1, Fig.2)
2. Remove the screw B on the left side of the
R/P head.(Fig.1, Fig.2)
Remove the erase head.
Remove the screw C fixing the erase head.(Fig.1)
Removing the pinch roller.
1. Pull out the pinch roller by opening the pinch
roller stopper outward to unlock .(Fig.3)
2. When reassembling the pinch roller, refer to
fig. 4 to hook up the spring.

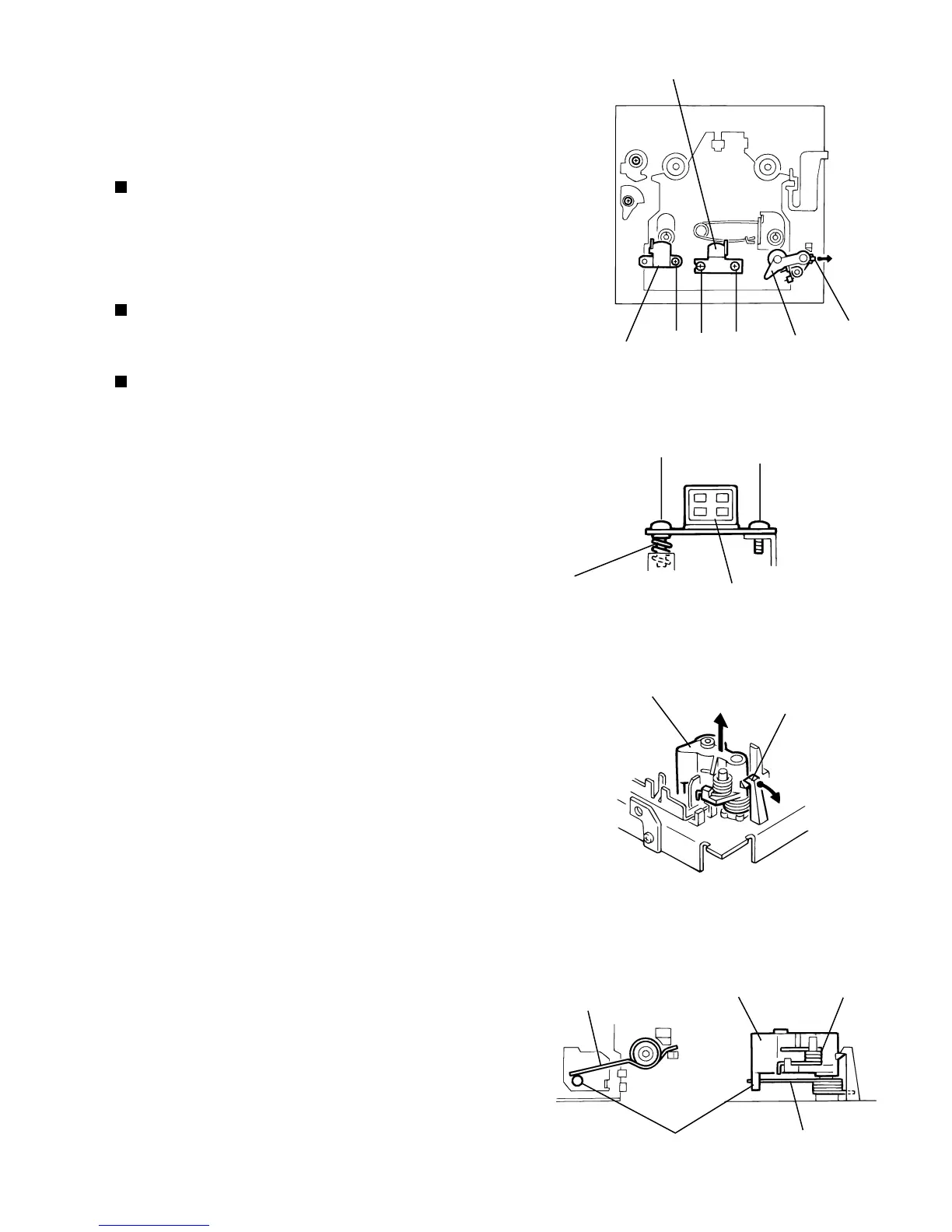

Fig.1
Fig.2
Fig.3
Fig.4
R/P Head
R/P Head
E. Head
Spring
Stoppsr
Pinch roller
assembly
A
A
B
B
C
Pinch roller
Pinch roller
stopper
Pinch roller
Pinch roller
spring
Return spring
Return spring
Return spring
