Prior to performing the following procedure, remove
the top cover and the side covers.
Press the POWER button. Press the OPEN/CLOSE
button to eject the CD tray.
Move the CD tray fitting upward and release the joint
b.
Press the OPEN/CLOSE button to insert the tray.
1.
2.
3.
Removing the CD Tray fitting

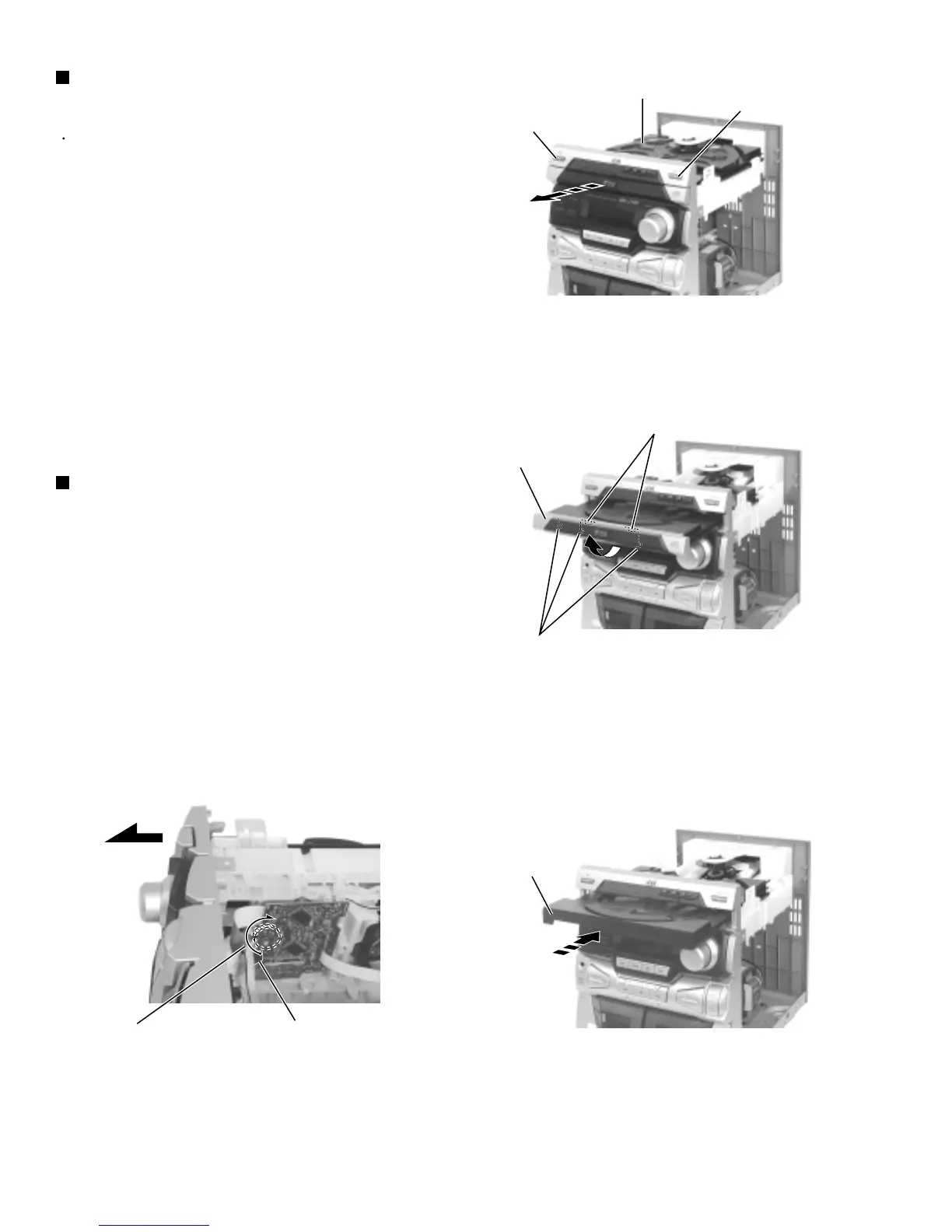

(See Fig. 4 to 6)
Be sure to remove the CD tray fitting
before removing the CD changer unit.
ATTENTION:
Turn the black loading pulley gear marked c from the
back of the CD changer unit as shown in Fig.7 and
draw the CD tray toward the front.
Move the CD tray fitting upward and release the joint
b.
Push and insert the CD tray manually.
1.
2.
3.
Removing the CD Tray fitting
(See Fig. 5 to 7)
- How to eject the CD tray without turning on power -
Fig.4
Fig.5
Fig.6
Fig.7
POWER button
OPEN/CLOSE button
CD tray
Joint b
Joint b
CD tray fitting
CD tray
This slot of the board.
Marked c
Loading pulley gear
