MX-J100
1-13
Prior to performing the following procedure, remove
the CD tray.
Release the two tabs j attaching the sensor board on
the under side of the CD tray.
Disconnect the harness from connector CW1 on the
sensor board and release the harness from the two
hooks k. Remove the sensor board.
Remove the screw W attaching the tray turn table.
Detach the tray turn table from the tray.
Pull outward the tab marked m attaching the tray turn
table motor assembly on the upper side of the tray
and detach the tray turn table motor assembly from
the tray.
1.
2.
3.
4.

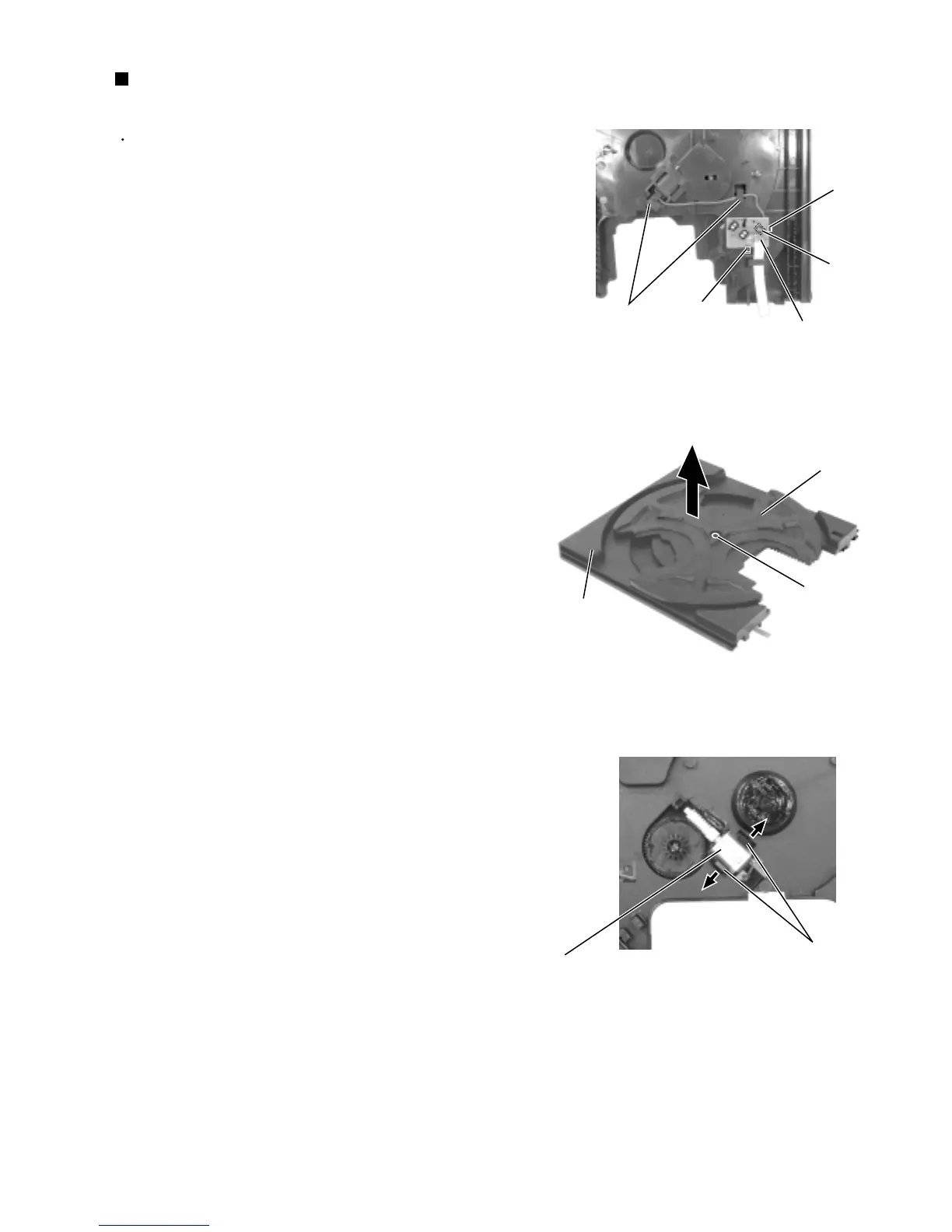

Removing the sensor board / the tray
motor (See Fig.31 to 33)
Fig.32
Fig.31
Fig.33
Tab j
Tab j
Hooks k
Sensor board
CW1
Tray turn table
Tray
W
Tray turn table motor assembly
Tab m
To Next Page
