JVC MX-J100 Service Manual

MX-J100
1-7
Prior to performing the following procedure, remove
the top cover, the side covers and the CD Tray
fitting.
Disconnect the card wire from connector SCW1 of
the CD servo board on the back of the CD changer
unit.
Disconnect the harness from connector FW2 on the
inner side of the mother(main) board in the body.
Remove the two screws E attaching the CD changer
unit on the back of the body.
Draw the CD changer unit upward from behind while
pulling the rear panel outward.
1.
2.
3.
4.

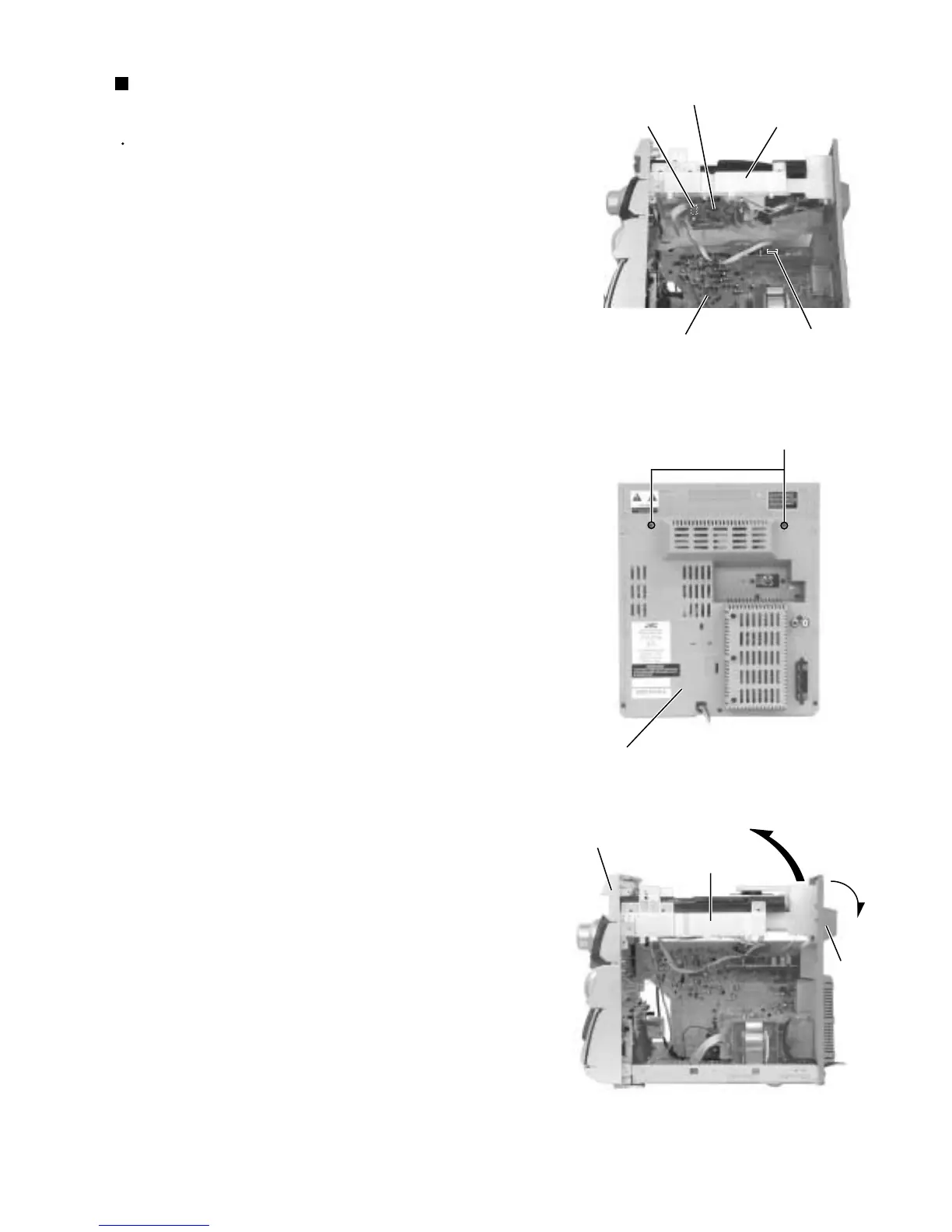

Removing the CD changer unit
(See Fig.8 to 10)
Fig.8
Fig.9
Fig.10
SCW1
CD servo board
CD changer unit
Mother(main) board
FW2
Rear panel
E
Rear panel
Front panel assembly
CD changer unit
