MX-J100

1-18

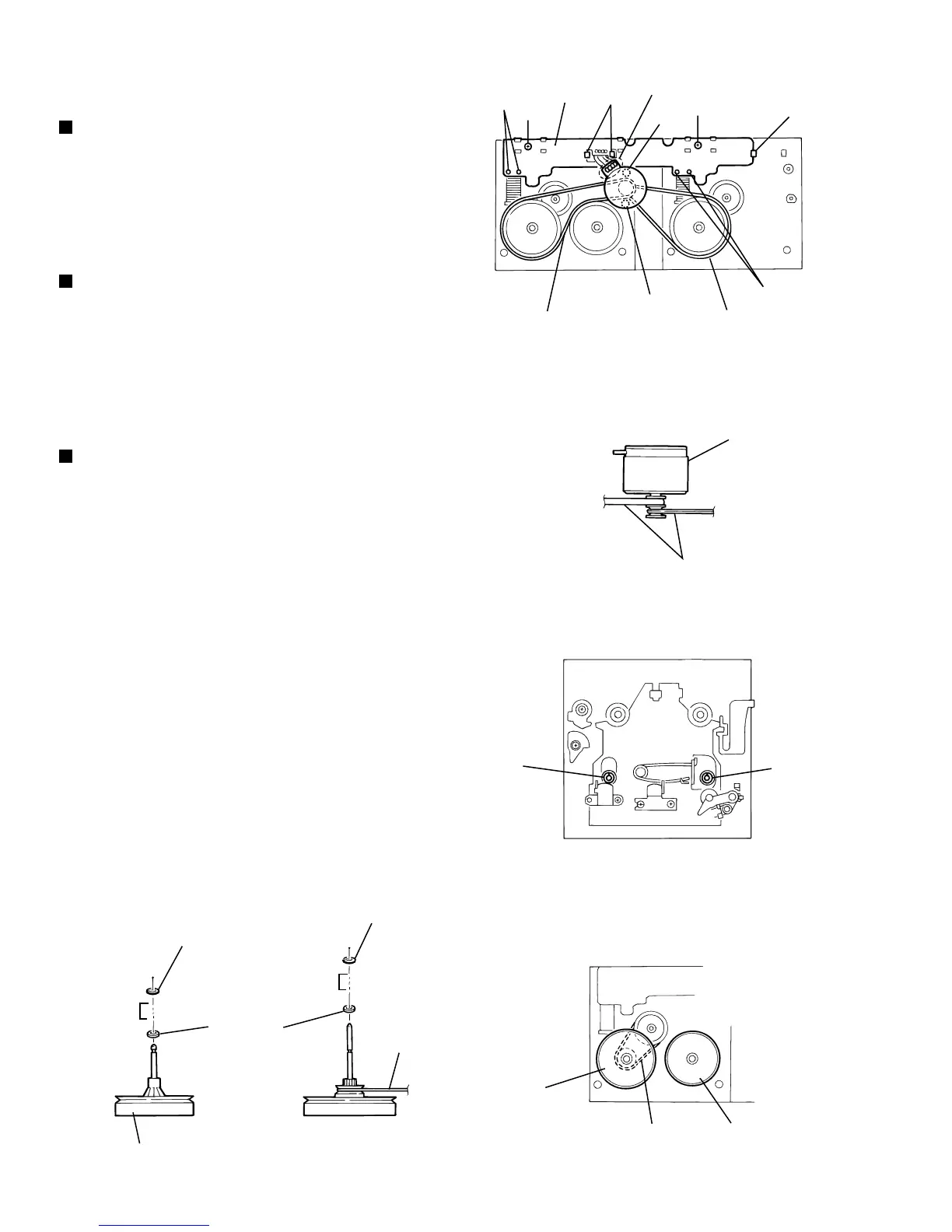

Fig.5

Drive belt

Motor

terminal

Motor

FR belt

Washer

Capstan

washer

Flywheel

Capstan

washer

Mecha.

board

Fig.6

Fig.7

Fig.8Fig.9

Sleeve

Removing the motor.

1. Remove the two screws D fixing the motor.

Be careful to grease's splash when the

drive belt comes off.(Fig.5, Fig.6)

2. Unsolder the motor terminal.(Fig.5)

Removing the mechanism board.

1. Unsolder the four parts a on the solenoid

coil terminal.(Fig.5)

2. Remove the two screws E fixing the board.(Fig.5)

3. Unhook the three parts b from the board.(Fig.5)

4. Remove the mechanism board.(Fig.5)

Removing the flywheel.

Remove the cut-washers at c and d from the

capstan shaft, then remove the flywheen.

When reassembling the flywheel,

be sure to use new washers as they

cannot be reused.(Fig.8, Fig.9)
