MX-J100
1-15
Disconnect the harness from connector on the CD
mechanism board in the CD mechanism assembly
on the under side of the CD changer unit. Disconnect
the card wire from the pickup unit connector.
Remove the screw Y attaching the shaft on the right
side of the CD mechanism holder assembly. Pull
outward the stopper fixing the shaft on the left side
and remove the CD mechanism holder assembly
from behind in the direction of the arrow.
Turn the CD mechanism holder assembly half
around the lift up slide shaft r of the CD mechanism
holder assembly until the turn table is reversed, and
pull out the CD mechanism holder assembly.
1.
2.
3.

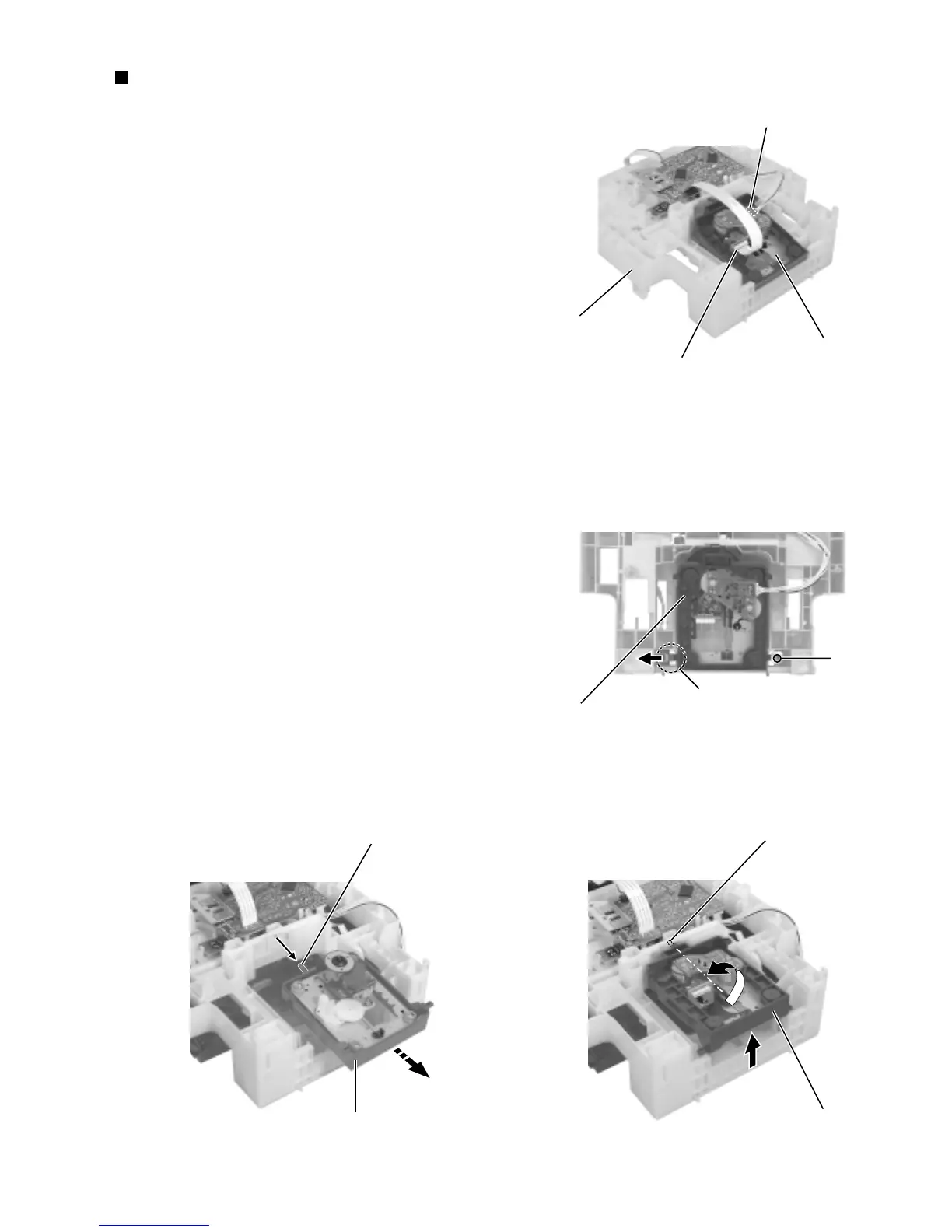

Removing the CD mechanism holder
assembly (mechanism included)
(See Fig.36 to 39)
Fig.36
Fig.37
Fig.38
Fig.39
Motorconnecter
CD mechanism assembly
CD changer unit
Pickup unit connector
Y
CD mechanism holder assembly
Stopper
CD mechanism holder assembly
Lift up slide shaft r
Lift up slide shaft
CD mechanism holder assembly
To Next Page
