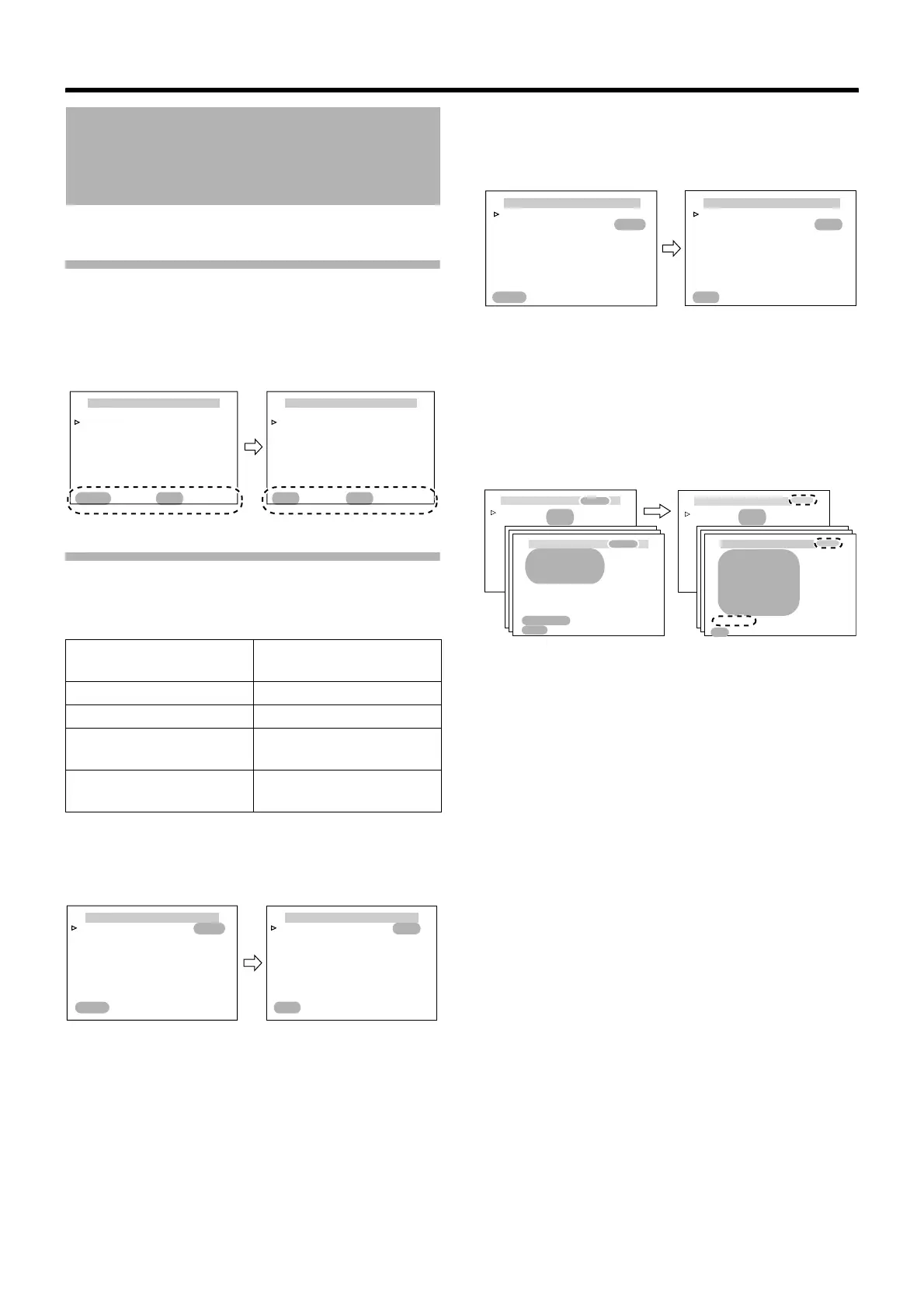

When using this unit with Pelco protocol (A Page 19)
(A Page 30), you will see a different menu screen display.
Control Button Display
When the menu screen is in the full mode, the control button
display at the bottom of the screen changes.
● [MENU]B[CLS]
● [SET]B[OPN]
Menu Display
Thse that are displayed as [HOME] on the menu screen are
changed to [POS1].
● [AUTO RETURN] screen (A Page 41)
Setting value changes
● [HOME]B[POS1]
● [ALARM INPUT] screen (A Page 42)
Setting value changes
● [OFF, HOME, POS1 to POS99]B
[OFF, POS1 to POS32, POS35 to POS82]
● [AUTO PATROL SET] screen (A Page 47)
Deletion of item
● [MODE1 to MODE3]B Deleted (only [MODE1] is
available)
Setting value changes
● [OFF, HOME, POS1 to POS99]B
[OFF, POS1 to POS32, POS35 to POS82, POS100 to
POS256]
Menu Display When Using
Pelco Protocol
Normal Display Menu Display When Using
Pelco Protocol
[HOME] [POS1]
[HOME M.DETECT] [POS1 M.DETECT]
[HOME M.DETECT
(ALARM)]
[POS1 M.DETECT
(ALARM)]
[HOME M.DETECT
(TRACKING)]
[POS1 M.DETECT
(TRACKING)]
MENU
<
MENU
>
EXIT
<
SET
>
SUB MENU
LANGUAGE ENGLISH
CAMERA FUNCTION1..
CAMERA FUNCTION2..
CAMERA TITLE/ALARM..
CAMERA ALC..
CAMERA VIDEO..
AUTO PAN/PATROL/TRACE..
POS.FUNCTION SET..
FACTORY SETTINGS..
MENU
<
CLS
>
EXIT
<
OPN
>
SUB MENU
LANGUAGE ENGLISH
CAMERA FUNCTION1..
CAMERA FUNCTION2..
CAMERA TITLE/ALARM..
CAMERA ALC..
CAMERA VIDEO..
AUTO PAN/PATROL/TRACE..
POS.FUNCTION SET..
FACTORY SETTINGS..
AUTO RETURN
MODE HOME
TIME ---
<MENU>RETURN
AUTO RETURN
MODE POS1
TIME ---
<CLS>RETURN
INPUT1 OFF
INPUT2 HOME
INPUT3 OFF
INPUT4 OFF
INPUT5 OFF
INPUT6 OFF
ALARM INPUT
<MENU>RETURN
INPUT1 OFF
INPUT2 POS1
INPUT3 OFF
INPUT4 OFF
INPUT5 OFF
INPUT6 OFF
ALARM INPUT
<CLS>RETURN
PATROL1 HOME 10s
PATROL2 POS1 10s
PATROL27 POS26 10s
PATROL28 POS27 10s
PATROL29 POS28 10s
PATROL30 POS29 10s
PATROL31 POS30 10s
PATROL32 POS31 10s
AUTO PATROL SET
PATROL1 POS1 10s
PATROL2 POS2 10s
PATROL27 POS26 10s
PATROL28 POS27 10s
PATROL29 POS28 10s
PATROL30 POS29 10s
PATROL31 POS30 10s
PATROL32 POS31 10s
AUTO PATROL SET MODE1
AUTO PATROL SET
PATROL97 POS96 10s
PATROL98 POS97 10s
PATROL99 POS98 10s
PATROL100 POS99 10s
AUTO PATROL SET MODE1
<FOCUS>MODE <ZOOM>PAGE
<MENU>RETURN
<CLS>RETURN <ZOOM>PAGE
PATROL73 POS75 10s
PATROL74 POS76 10s
PATROL75 POS77 10s
PATROL76 POS78 10s
PATROL77 POS79 10s
PATROL78 POS80 10s
PATROL79 POS81 10s
PATROL80 POS82 10s
