Adjusting the Camera Position

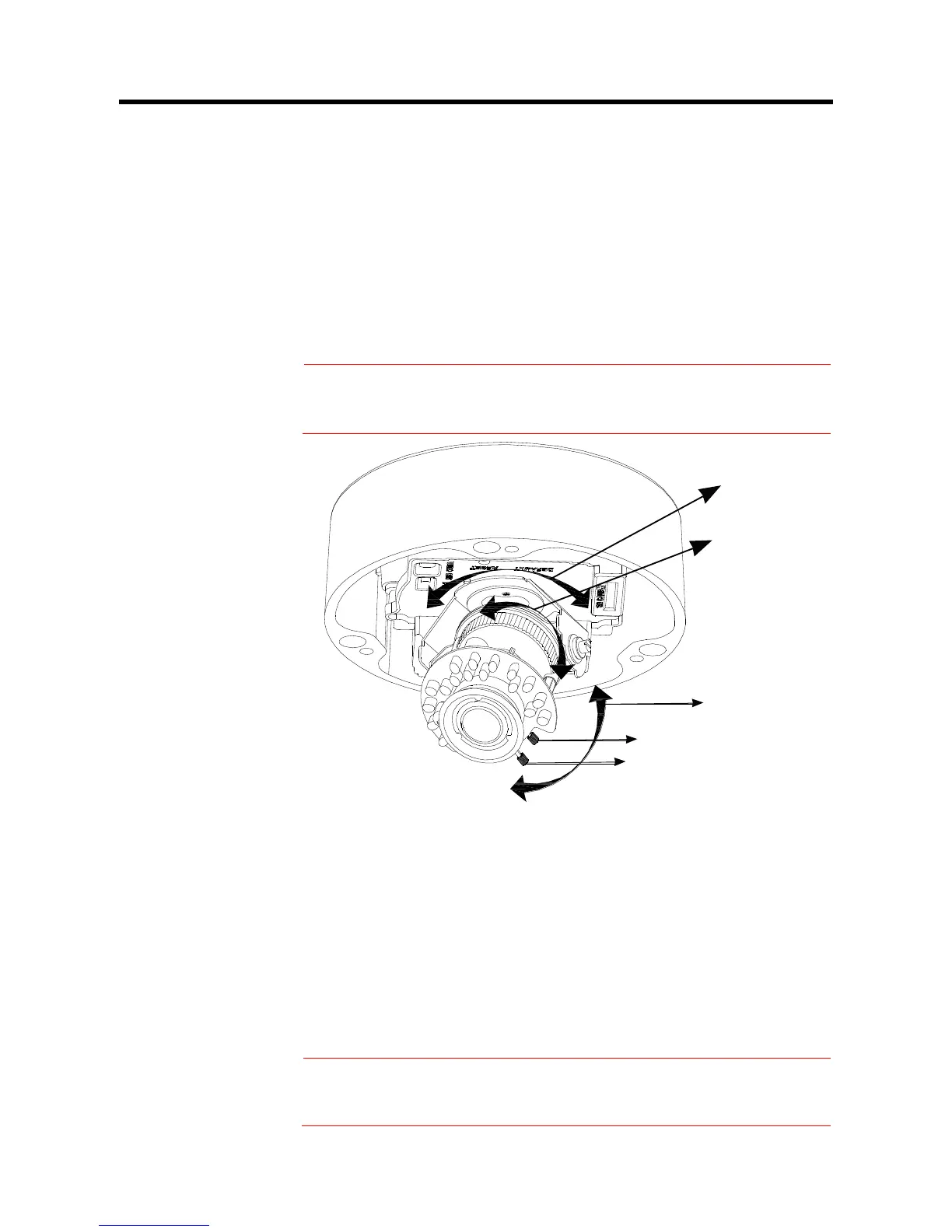

The dome camera has three axes for positioning the camera. While
monitoring the picture on the monitor, adjust the camera position as follows:
Pan Adjustment (A) For Wall Mount and Tilted Ceilings: Rotate the lens
base (maximum360°) until you are satisfied with the field of view.
Horizontal Rotation (B) Rotate 3D assembly in the base. Do not turn
assembly more than 360°as this assembly may cause the internal
cables to twist and disconnect or break.
Tilt Adjustment (C) After loosening the thumbnuts, position the camera
as desired, then finger –tighten the thumbnuts to set the position.
Adjusting Zoom and Focus
Loosen the zoom lever (D) / locking screw by turning it counterclockwise.
Rotate the zoom ring to achieve the desired image coverage.
Loosen the focus lever (E) / locking screw by turning it counterclockwise.
Rotate the focus ring to adjust the appropriate focus.
If re-adjustment is necessary, repeat the steps above.
Retighten the zoom lever（D）/ locking screw and the focus lever (E) /
locking screw.
