Product description

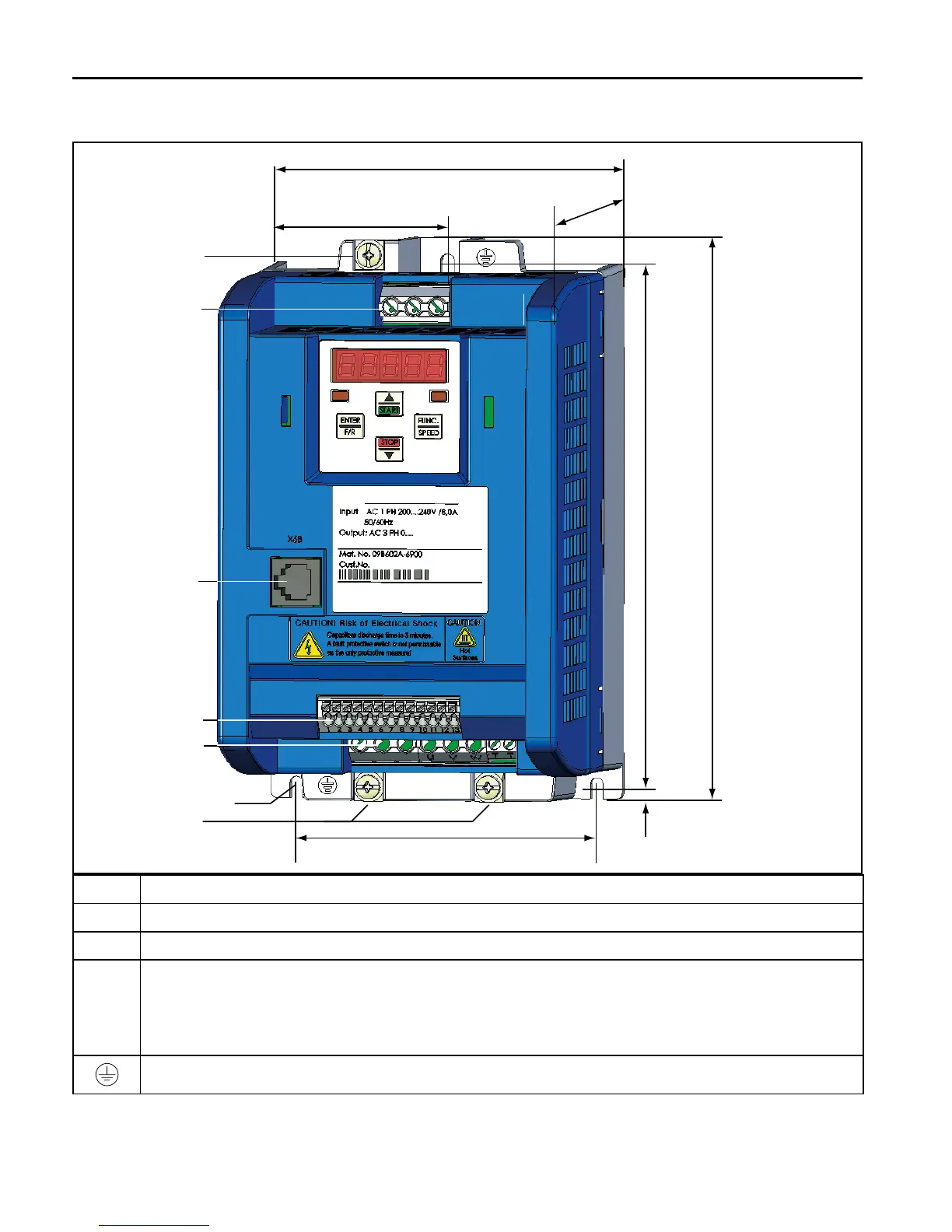

2.4 Dimensions and Terminals
X1A
58,5
117
X6B
X2A
X1B
PE
PE
173 185
100
4,5
5
170
X1A Connection for mains supply
X1B Connection for motor, braking resistor and temperature detection
X2A Connection for control lines
X6B
HSP5 Interface for parametrizing. Used accessories for PC connection:
• Adapter SUB-D9 to RJ45 (mat.no. 00F50C0-0020)
• RS232/HSP5 converter (mat.no. 00F50C0-0010)
Connection protective conductor
